UPD17P709GC-3B9 Datasheet

  • UPD17P709GC-3B9

  • 4-BIT SINGLE-CHIP MICROCONTROLLER WITH BUILT-IN HARDWARE DED...

  • 38頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

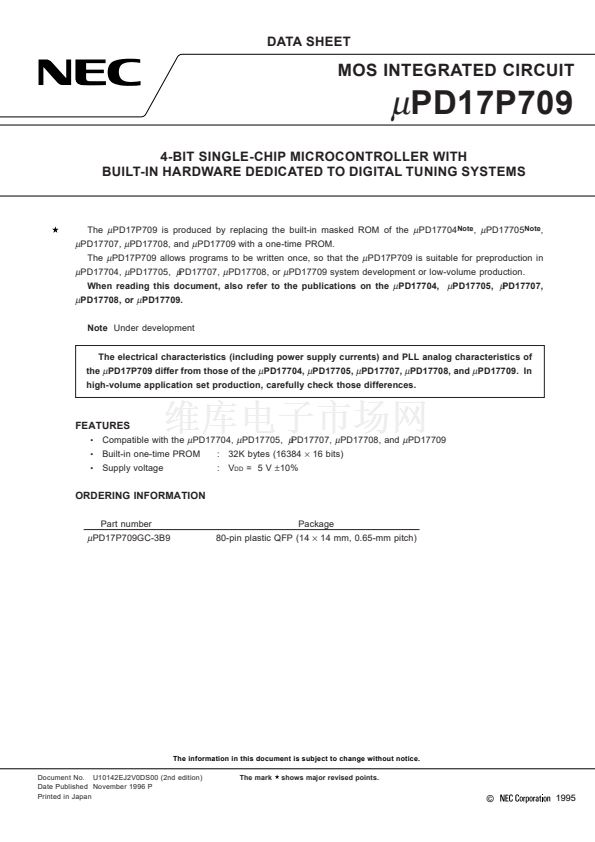

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD17P709
4-BIT SINGLE-CHIP MICROCONTROLLER WITH
BUILT-IN HARDWARE DEDICATED TO DIGITAL TUNING SYSTEMS
The
碌
PD17P709 is produced by replacing the built-in masked ROM of the
碌
PD17704
Note
,
碌
PD17705
Note
,
碌
PD17707
, 碌
PD17708, and
碌
PD17709 with a one-time PROM.
The
碌
PD17P709 allows programs to be written once, so that the
碌
PD17P709 is suitable for preproduction in
碌
PD17704,
碌
PD17705,
碌
PD17707,
碌
PD17708, or
碌
PD17709 system development or low-volume production.
When reading this document, also refer to the publications on the
碌
PD17704,
碌
PD17705,
碌
PD17707,
碌
PD17708, or
碌
PD17709.
Note
Under development
The electrical characteristics (including power supply currents) and PLL analog characteristics of
the
碌
PD17P709 differ from those of the
碌
PD17704,
碌
PD17705,
碌
PD17707,
碌
PD17708, and
碌
PD17709. In
high-volume application set production, carefully check those differences.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
Compatible with the
碌
PD17704,
碌
PD17705,
碌
PD17707,
碌
PD17708, and
碌
PD17709
Built-in one-time PROM
Supply voltage
: 32K bytes (16384
脳
16 bits)
: V
DD
= 5 V
鹵10%
ORDERING INFORMATION
Part number
Package

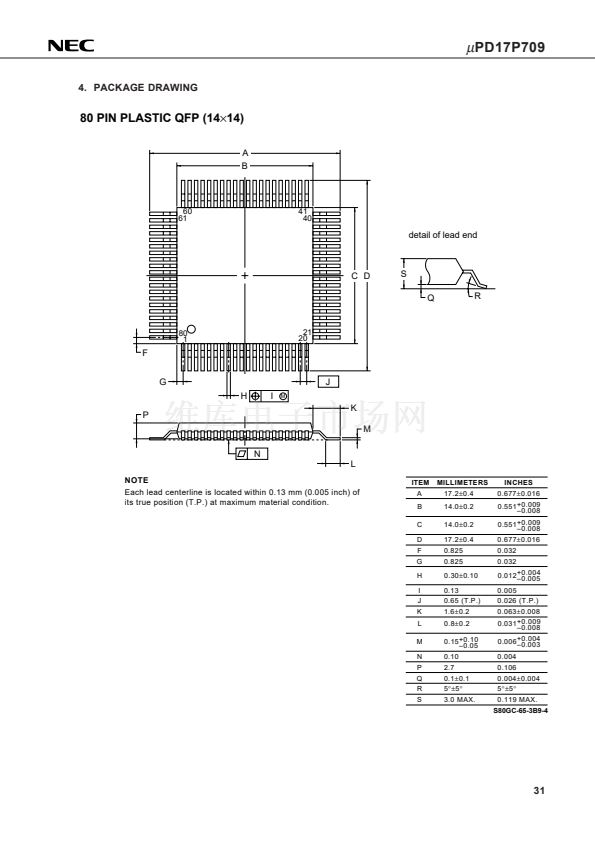

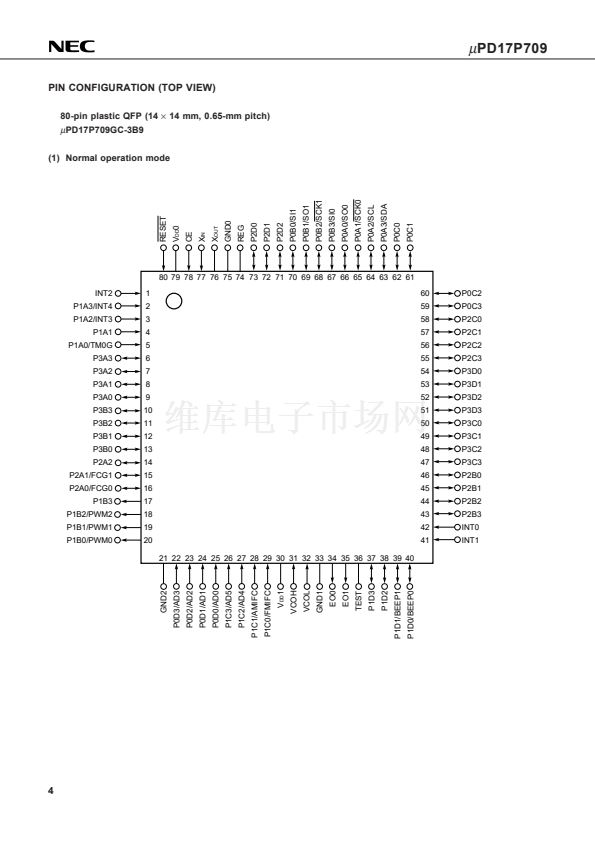

80-pin plastic QFP (14
脳
14 mm, 0.65-mm pitch)
碌
PD17P709GC-3B9
The information in this document is subject to change without notice.
Document No. U10142EJ2V0DS00 (2nd edition)
Date Published November 1996 P
Printed in Japan
The mark
shows major revised points.
漏
1995
