PRELIMINARY DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD17006AGF-011
4-BIT SINGLE-CHIP MICROCONTROLLER WITH PRESCALER,
PLL FREQUENCY SYNTHESIZER, AND IF COUNTER
FOR AUTOMOBILE FM, MW, AND LW RADIOS
DESCRIPTION
The
碌
PD17006AGF-011 is a 4-bit CMOS microcontroller for digital tuning and can receive European FM,
MW, and LW bands. It contains a prescaler (150 MHz MAX.), PLL frequency synthesizer, and IF counter.
This microcontroller supports European Radio Data System (RDS) and implements various RDS func-
tions, so that it can configure with a single chip a high-performance FM, MW, or LW tuner such as that for
luxury automobile stereo systems.
In addition, an RDS decoder is realized as a software library, so that the system using the
碌
PD170006AGF-
011 can eliminate one IC chip as compared with existing systems.
FEATURES
q
Preset memory
Five stations each for four bands, FM1, FM2, FM3,
and AM (shared with MW and LW), totaling 20
stations
q

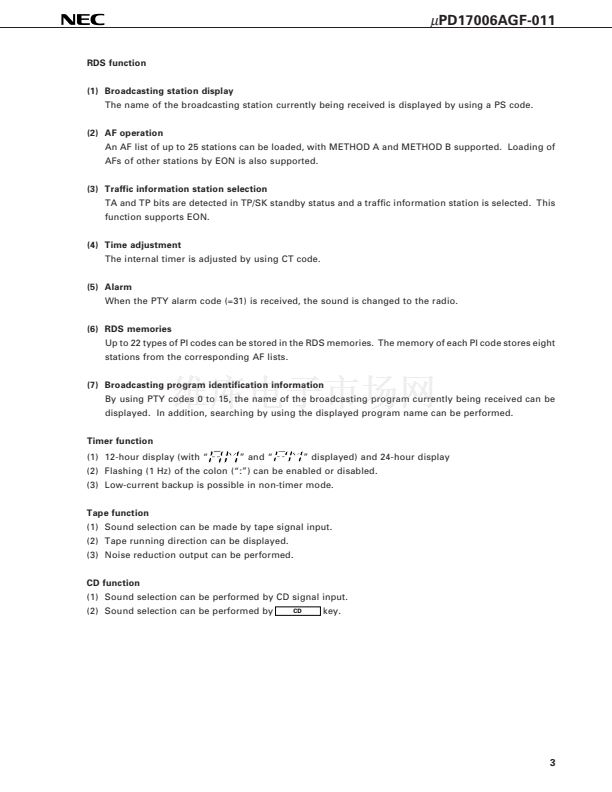

RDS function
鈥?Broadcasting station name display (PS)
鈥?AF operation
鈥?AF list of up to 25 stations can be loaded.
鈥?Supports METHOD A/B
鈥?Traffic information standby function (TP, TA)
鈥?Alarm function (PTY = 31)
鈥?PTY seek function (broadcasting program iden-
tification information)
鈥?CT function (time adjustment function)
鈥?RDS memory
AF data for eight stations can be stored for 22
types of PI codes.
鈥?EON function
鈥?RDS memory AF data update function
鈥?EON station traffic information selection func-
tion
鈥?RDS decode function
q
Last channel memory
One station for each band

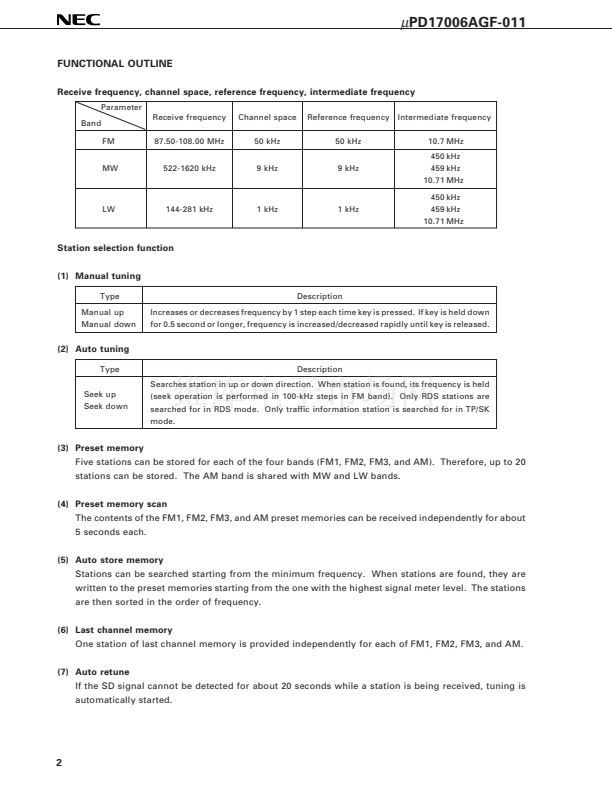

Tuning function
鈥?Manual seek/auto seek
鈥?Auto store memory
鈥?Auto retune
q
q
q
碌
PD16430A as LCD controller/driver
5 V鹵10% single power source
ORDERING INFORMAITON
Part number
Package
80-pin plastic QFP (14
脳
20 mm)
Quality grade
Standard
碌
PD17006AGF-011-3B9
Please refer to "Quality grade on NEC Semiconductor Devices" (Document number IEI-1209) published by
NEC Corporation to know the specification of quality grade on the devices and its recommended applications.
The information in this document is subject to change without notice.
Document No. ID-3526
(O.D. No. ID-9042)
Date Published November 1994 P
Printed in Japan
漏
1994
