DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD16782
SOURCE DRIVER FOR 300/288-OUTPUT TFT-LCD
(NAVIGATION, AUTOMOBILE LCD-TV)
DESCRIPTION
碌

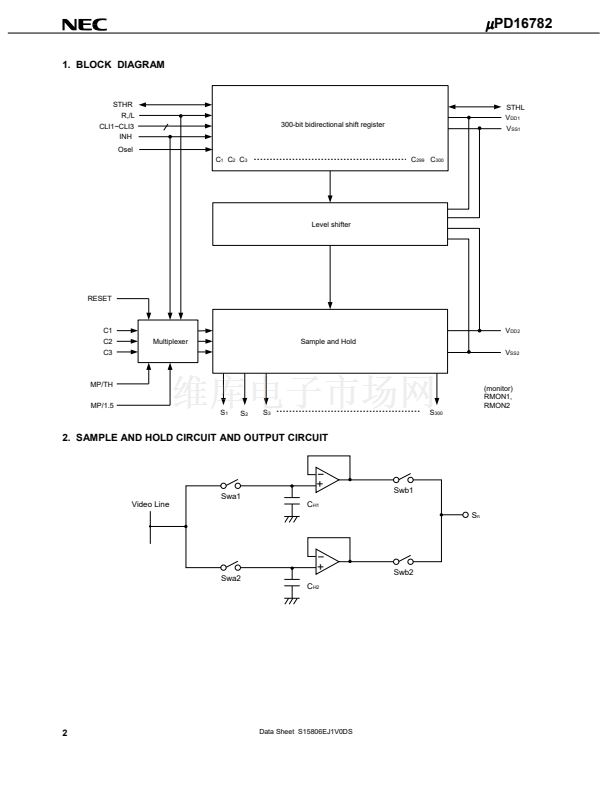

PD16782 is a source driver for TFT liquid crystal panels. This IC consists of a multiplexer circuit supporting a variety of
pixel arrays, a shift register that generates sampling timing, and two sample and hold circuits that sample analog voltages.
Because the two sample and hold circuits alternately execute sampling and holding, a high definition can be obtained.
In addition, simultaneous sampling and successive sampling are automatically selected according to the pixel array of
the LCD panel. It is ideal for a wide range of applications, including navigation systems and automobile LCD-TVs.
FEATURES
鈥?/div>
Can be driven on 5 V (Dynamic range: 4.3 V, V
DD2
= 5.0 V)
鈥?/div>
300/288-output
鈥?/div>
f
CLK
= 15 MHz MAX. (V
DD1
= 3.0 V)
鈥?/div>
Simultaneous/successive sampling selectable according to pixel array
Simultaneous sampling: Vertical stripe
Successive sampling: Delta array, mosaic array
鈥?/div>
Two sample and hold circuits
鈥?/div>
Low output deviation between pins (鹵 20 mV MAX.)
鈥?/div>
Stripe, delta, and mosaic pixel arrays supported by internal multiplexer circuit
鈥?/div>
Left and right shift selected by R,/L pin
鈥?/div>
COG mounting possible
Remark
/xxx indicates active low signal.
ORDERING INFORMATION
Part Number
Package
Chip
碌
PD16782P
Remark
Purchasing the above chip entails the exchange of documents such as a separate memorandum or
product quality, so please contact one of our sales representative.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. S15806EJ1V0DS00 (1st edition)
Date Published December 2002 NS CP (K)
Printed in Japan
2001
