DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD16780
288/300 OUTPUT TFT-LCD SOURCE DRIVER
DESCRIPTION
The
碌
PD16780 is a source driver for TFT-LCDs. The
碌
PD16780 corresponds only to LCD of Stripe array color
filter. The
碌

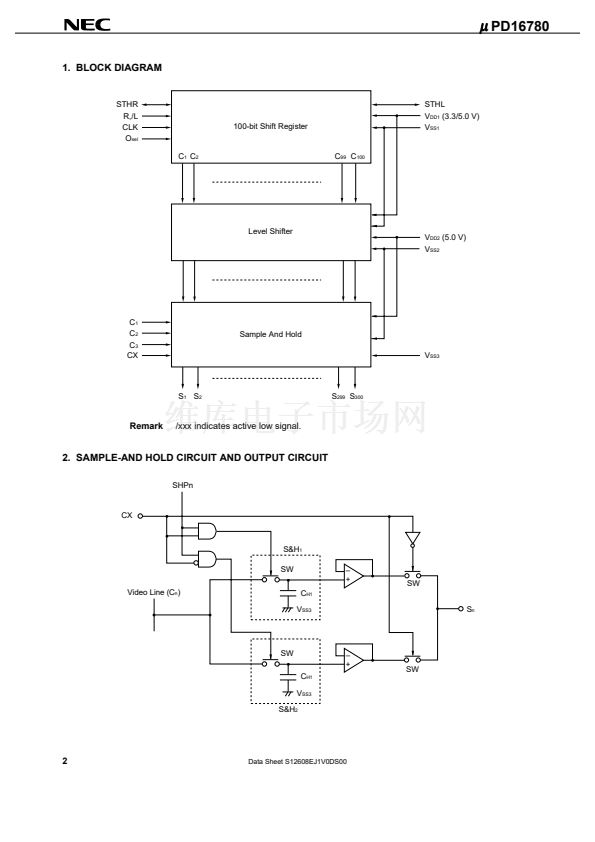

PD16780 is constitute a shift register which generates the sampling time, and a sample-and-hold circuit
which samples the analog voltage. There are two sample-and-hold circuits which perform sampling holding
alternately.
The application with high free degree is possible from driver operation system to LCD-TV because a high picture
quality is realized.
FEATURES
鈥?5.0 V Drive (Dynamic range 4.6 V
P-P
, V
DD2
= 5.0 V)
鈥?288/300 Output channel
鈥?f
MAX.
= 20 MHz (V
DD1
= 3.0 V)
鈥?Corresponds only to LCD of Stripe array color filter
鈥?Two on-chip sample-and-hold circuits
鈥?Small output deviation between pins (deviation between chip pins:
鹵
20 mV MAX.)
鈥?Switch between right and left shift using the R,/L pin
ORDERING INFORMATION
Part Number
Package
TCP (TAB package)
碌
PD16780N-xxx
Remark
The TCP鈥檚 external shape is custom-order item. Users are requested to consult wiht a NEC sales
representative.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No.
S12608EJ1V0DS00 (1st edition)
Date Published May 1999 NS CP(K)
Printed in Japan
The mark
鈥?/div>
shows major revised points.
漏
1998
