DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD16344
64-BIT AC-PDP DRIVER
DESCRIPTION
The
碌
PD16344 is a row driver for an AC plasma display panel (PDP) using high breakdown voltage CMOS
process. The
碌

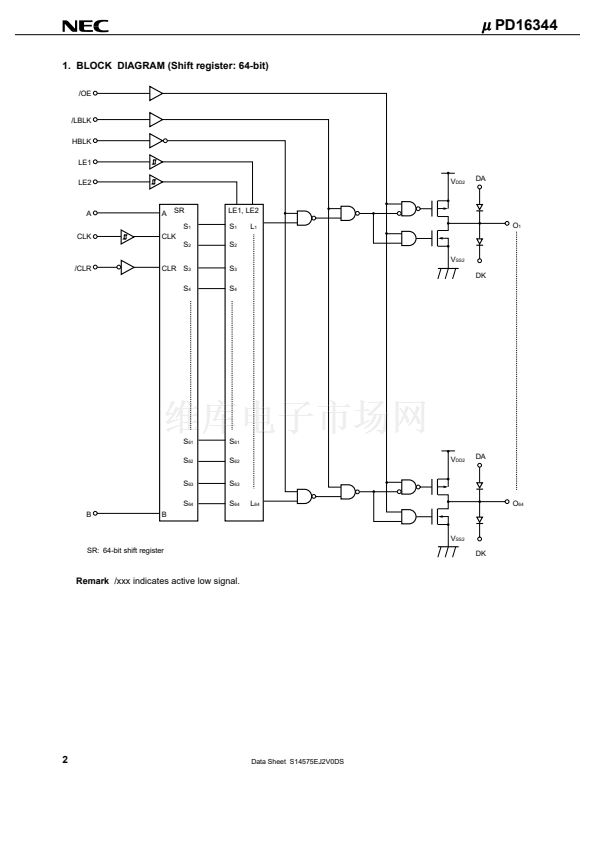

PD16344 consists of a 64-bit bi-directional shift register, latch circuit and high breakdown voltage
CMOS driver section. The logic section operates on a 5-V power supply so that it can be connected directly to a gate
array and microcomputer (CMOS level input). The driver section provides high breakdown voltage output of 120 V
and +400 mA,
鈭?50
mA. Both the logic and driver sections are constructed by CMOS, witch allows operation with
low power consumption.
FEATURES
鈥?/div>
High voltage full CMOS process
鈥?/div>
High breakdown voltage, high current output (Maximum rating: 120 V, +400 mA,
鈭?50
mA)
鈥?/div>
64-bit bi-directional shift register on chip
鈥?/div>
Data control by transfer clock (external) and latch
鈥?/div>
High-speed data transfer capability (f
CLK
= 12 MHz MAX.: when cascaded)
鈥?/div>
Wider operating ambient temperature (T
A
=
鈭?0擄C
to 85擄C)
ORDERING INFORMATION
Part number
Package
100-pin plastic QFP(14 x 20)
碌
PD16344GF-3BA
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. S14575EJ2V0DS00 (2nd edition)
Date Published November 2000 NS CP(K)
Printed in Japan
The mark
5
shows major revised points.
1999, 2000
