UPC8130TA-E3 Datasheet

  • UPC8130TA-E3

  • Microwave/Millimeter Wave Amplifier

  • 369.45KB

  • 40頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
碌
PC8130TA,
碌
PC8131TA
鈥?5 dBm INPUT, VARIABLE GAIN AMPLIFIER SILICON MMIC
FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE
BIPOLAR ANALOG INTEGRATED CIRCUITS
DESCRIPTION
The
碌
PC8130TA and
碌
PC8131TA are silicon monolithic integrated circuits designed as variable gain amplifier.
Due to 800 MHz to 1.5 GHz operation, these ICs are suitable for RF transmitter AGC stage of digital cellular
telephone. These ICs are lower distortion than conventional
碌
PC8119T and
碌
PC8120T so that 鈥?5 dBm input level
can be applied. These ICs also available in two types of gain control so you can choose either IC in accordance with
your system design. 3 V supply voltage and minimold package contribute to make your system lower voltage,
decreased space and fewer components.
The
碌
PC8130TA and
碌
PC8131TA are manufactured using NEC鈥檚 20 GHz f
T
NESAT鈩II silicon bipolar process.
This process uses silicon nitride passivation film and gold electrodes. These materials can protect chip surface from
external pollution and prevent corrosion/migration. Thus, this IC has excellent performance, uniformity and reliability.
FEATURES
鈥?Recommended operating frequency: f = 800 MHz to 1.5 GHz
鈥?Low distortion
: P
adj
鈮?/div>
鈥?0 dBc MAX. @P
in
= 鈥?5 dBm,
鈭?/div>
f =
鹵50
kHz, V
CC
= 3.0 V,
T
A
= +25 擄C
鈥?Supply voltage
: V
CC
= 2.7 to 3.3 V
鈥?Low current consumption
: I
CC
= 11 mA TYP. @V
CC
= 3.0 V
鈥?Gain control voltage
: V
AGC
= 0 to 2.4 V (recommended)
鈥?Two types of gain control
:
碌
PC8130TA = V
AGC
up vs. Gain up (Reverse control)
碌
PC8131TA = V
AGC
up vs. Gain down (Forward control)
鈥?AGC control can be constructed by external control circuit.
鈥?High-density surface mounting

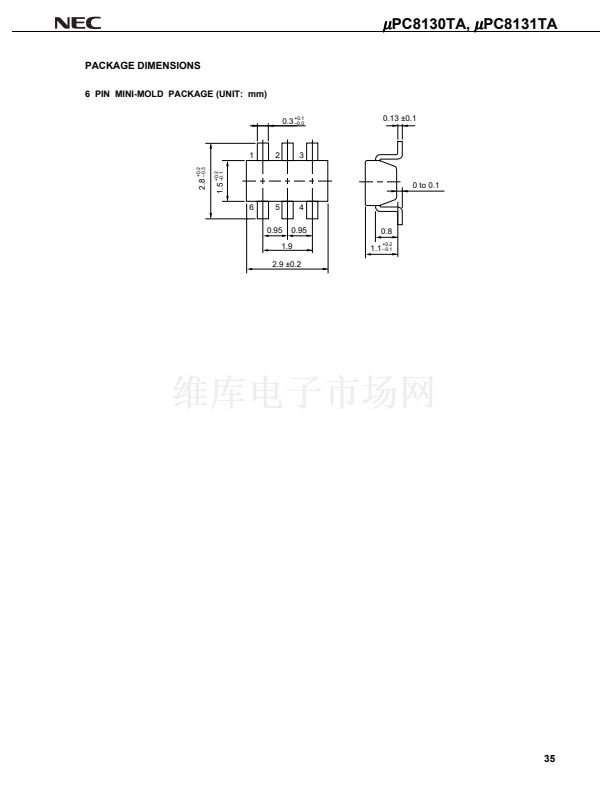

: 6 pin minimold package
APPLICATION
鈥?800 MHz to 900 MHz or 1.5 GHz Digital cellular telephone (PDC800M, PDC1.5G and so on)
ORDERING INFORMATION
Part Number
Package
6-pin minimold
C2R
Marking
C2Q
Supplying Form
Embossed tape 8 mm wide.
1, 2, 3 pins face to perforation side of the tape.
Qty 3 kp/reel.
Gain Control Type
Reverse control
Forward control
碌
PC8130TA-E3
碌
PC8131TA-E3
Remark
To order evaluation samples, please contact your local NEC sales office.
(Part number for sample order:
碌
PC8130TA,
碌
PC8131TA)

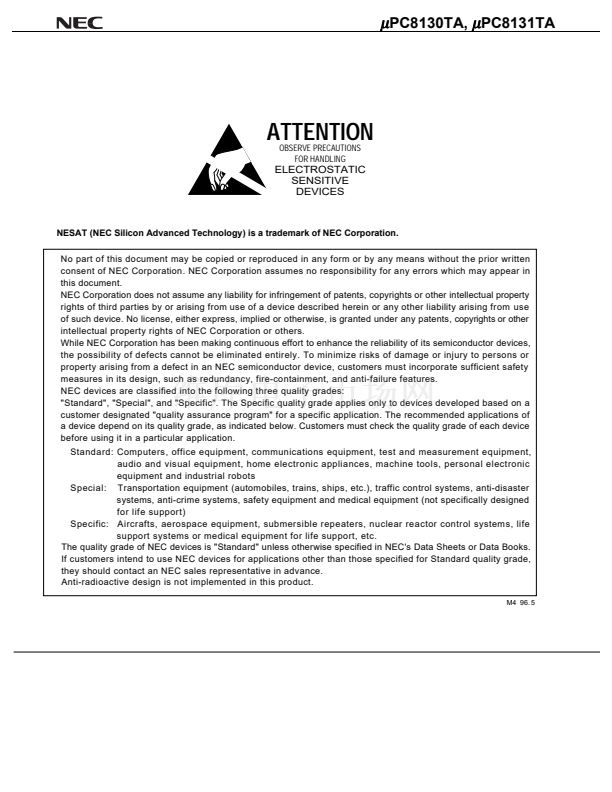

Caution Electro-static sensitive devices.
The information in this document is subject to change without notice.
Document No. P11721EJ2V0DS00 (2nd edition)
Date Published October 1998 N CP(K)
Printed in Japan
The mark
shows major revised points.
漏
1997
