DATA SHEET

DATA SHEET

BIPOLAR ANALOG INTEGRATED CIRCUIT

碌

PC8110GR

1 GHz DIRECT QUADRATURE MODULATOR

FOR DIGITAL MOBILE COMMUNICATION

DESCRIPTION

The

碌

PC8110GR is a sillicon monolithic integrated circuit designed as 1 GHz direct quadrature modulator for

digital mobile communication systems. This modulator housed in a 20 pin plastic SSOP that easy to install and

contributes to miniaturizing the system.

The device has power save function and can operates 2.7 to 3.6 V supply voltage to realize low power

consumption.

FEATURES

鈥?Direct modulation range : 800 MHz to 1 GHz

鈥?Supply voltage range

鈥?Low operation current

: V

CC

= 2.7 to 3.6 V

: I

CC

= 24 mA typical @ V

CC

= 3 V

鈥?Low phase difference due to digital phase shifter is adopted.

鈥?20 pin SSOP suitable for high density surface mounting.

鈥?Low current sleep mode

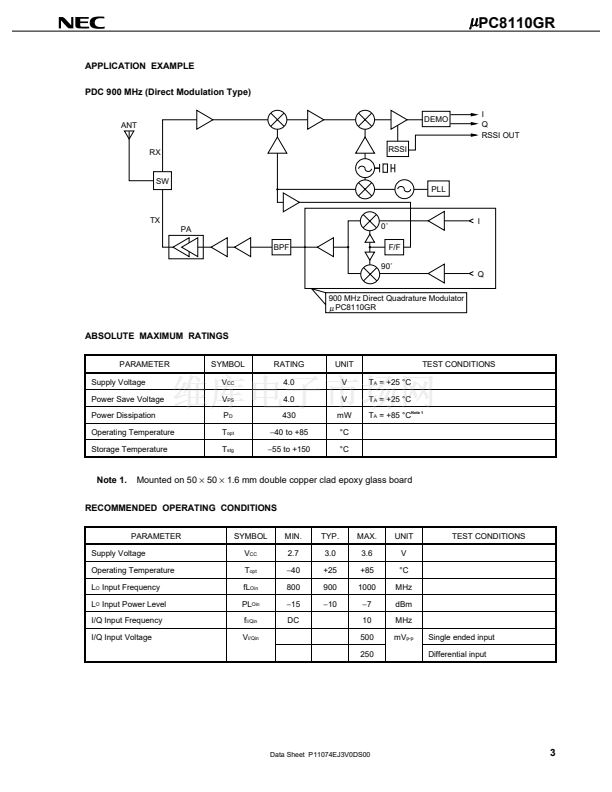

APPLICATION

鈥?Digital cellular phone (PDC, IS-54/IS-136, GSM etc..)

ORDERING INFORMATION

PART NUMBER

PACKAGE

20 pin plastic SSOP

PACKING FORM

Carrier tape width 12 mm. Q鈥檛y 2.5 kp/Reel Pin 1 indicated pull-out

direction of tape.

碌

PC8110GR-E1

Remark

For evaluation sample order, please contact your local NEC sales office. (Order number:

碌

PC8110GR)

Caution electro-static sensitive device

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for

availability and additional information.

Document No. P11074EJ3V0DS00 (3rd edition)

Date Published October 1999 N CP(K)

Printed in Japan

The mark

shows major revised points.

漏

1996, 1999
