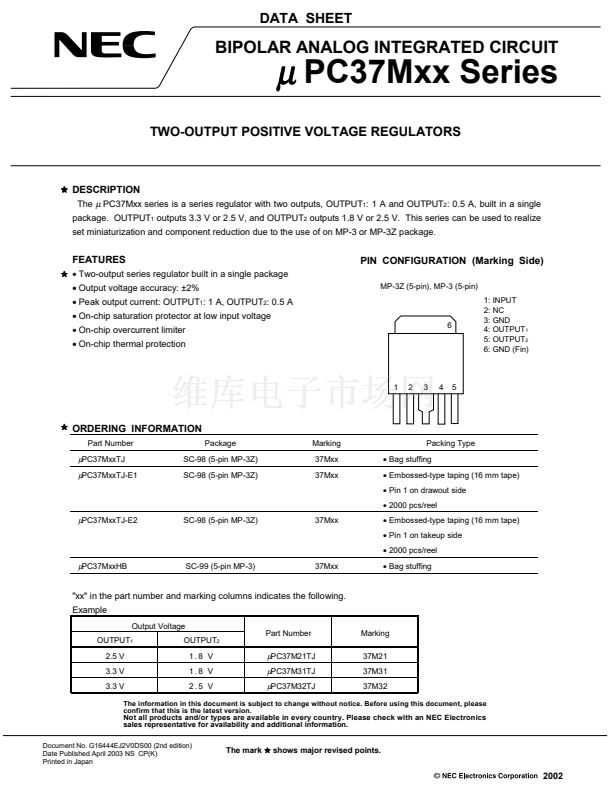

DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
碌
PC37Mxx Series
TWO-OUTPUT POSITIVE VOLTAGE REGULATORS
5
DESCRIPTION
The
碌
PC37Mxx series is a series regulator with two outputs, OUTPUT
1
: 1 A and OUTPUT
2
: 0.5 A, built in a single
package. OUTPUT
1
outputs 3.3 V or 2.5 V, and OUTPUT
2
outputs 1.8 V or 2.5 V. This series can be used to realize
set miniaturization and component reduction due to the use of on MP-3 or MP-3Z package.
FEATURES
5
鈥?/div>
Two-output series regulator built in a single package
鈥?/div>
Output voltage accuracy: 鹵2%
鈥?/div>
Peak output current: OUTPUT
1
: 1 A, OUTPUT
2
: 0.5 A
鈥?/div>
On-chip saturation protector at low input voltage
鈥?/div>
On-chip overcurrent limiter
鈥?/div>
On-chip thermal protection
PIN CONFIGURATION (Marking Side)
MP-3Z (5-pin), MP-3 (5-pin)
1: INPUT
2: NC
3: GND
4: OUTPUT
1
5: OUTPUT
2
6: GND (Fin)
6
1
2
3
4
5
5
ORDERING INFORMATION
Part Number
Package
SC-98 (5-pin MP-3Z)
SC-98 (5-pin MP-3Z)
Marking
37Mxx
37Mxx
Packing Type
鈥?/div>
Bag stuffing
鈥?/div>
Embossed-type taping (16 mm tape)
鈥?/div>
Pin 1 on drawout side
鈥?/div>
2000 pcs/reel
碌
PC37MxxTJ
碌
PC37MxxTJ-E1
碌
PC37MxxTJ-E2
SC-98 (5-pin MP-3Z)
37Mxx
鈥?/div>
Embossed-type taping (16 mm tape)
鈥?/div>
Pin 1 on takeup side
鈥?/div>
2000 pcs/reel
碌
PC37MxxHB
SC-99 (5-pin MP-3)
37Mxx
鈥?/div>
Bag stuffing
"xx" in the part number and marking columns indicates the following.
Example
Output Voltage
Part Number
OUTPUT
1
2.5 V
3.3 V
3.3 V
OUTPUT
2
1.8 V
1.8 V
2.5 V
Marking
37M21
37M31
37M32
碌
PC37M21TJ
碌
PC37M31TJ
碌
PC37M32TJ
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. G16444EJ2V0DS00 (2nd edition)
Date Published April 2003 NS CP(K)
Printed in Japan
The mark
5
shows major revised points.
2002
