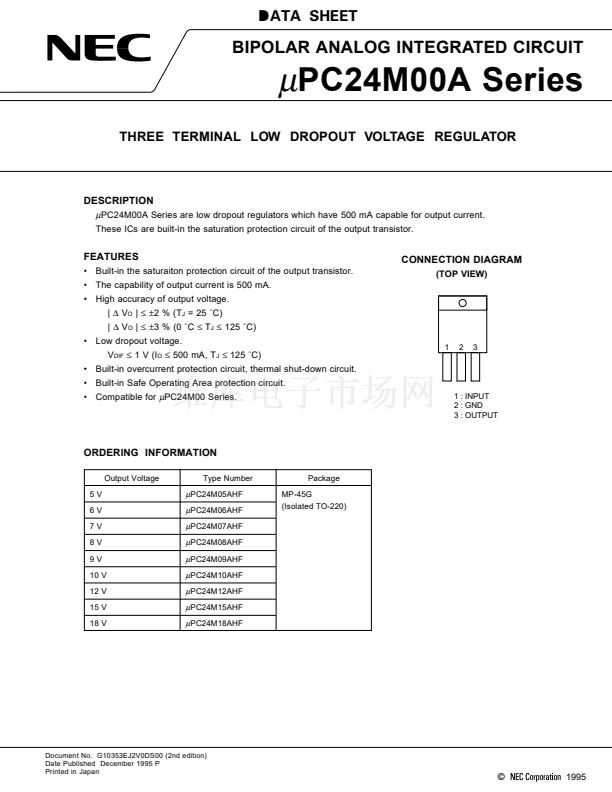

DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
碌
PC24M00A Series
THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR
DESCRIPTION
碌
PC24M00A Series are low dropout regulators which have 500 mA capable for output current.
These ICs are built-in the saturation protection circuit of the output transistor.
FEATURES
鈥?Built-in the saturaiton protection circuit of the output transistor.
鈥?The capability of output current is 500 mA.
鈥?High accuracy of output voltage.
|
鈭?/div>
V
O
|
鈮?鹵2
% (T
J
= 25 藲C)
|
鈭?/div>
V
O
|
鈮?鹵3
% (0 藲C
鈮?/div>
T
J
鈮?/div>
125 藲C)
鈥?Low dropout voltage.
V
DIF
鈮?/div>
1 V (I
O
鈮?/div>
500 mA, T
J
鈮?/div>
125 藲C)
鈥?Built-in overcurrent protection circuit, thermal shut-down circuit.
鈥?Built-in Safe Operating Area protection circuit.
鈥?Compatible for
碌
PC24M00 Series.
CONNECTION DIAGRAM
(TOP VIEW)
1
2
3
1 : INPUT
2 : GND
3 : OUTPUT
ORDERING INFORMATION
Output Voltage
5V
6V
7V
8V
9V
10 V
12 V
15 V
18 V
Type Number
Package
MP-45G
(Isolated TO-220)
碌
PC24M05AHF
碌
PC24M06AHF
碌
PC24M07AHF
碌
PC24M08AHF
碌
PC24M09AHF
碌
PC24M10AHF
碌
PC24M12AHF
碌
PC24M15AHF
碌
PC24M18AHF
Document No. G10353EJ2V0DS00 (2nd edition)
Date Published December 1995 P
Printed in Japan
漏
1995
