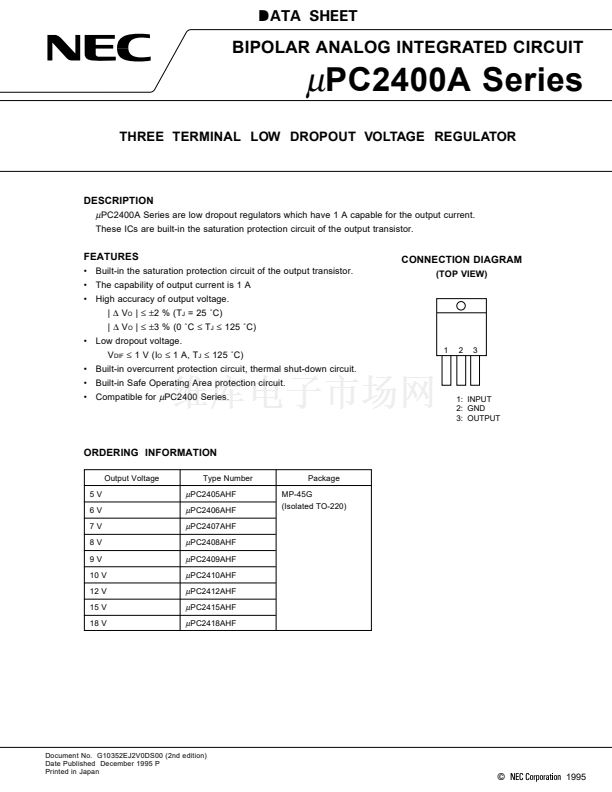

DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
碌
PC2400A Series
THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR
DESCRIPTION
碌
PC2400A Series are low dropout regulators which have 1 A capable for the output current.
These ICs are built-in the saturation protection circuit of the output transistor.
FEATURES
鈥?Built-in the saturation protection circuit of the output transistor.
鈥?The capability of output current is 1 A
鈥?High accuracy of output voltage.
|
鈭?/div>
V
O
|
鈮?鹵2
% (T
J
= 25 藲C)
|
鈭?/div>
V
O
|
鈮?鹵3
% (0 藲C
鈮?/div>
T
J
鈮?/div>
125 藲C)
鈥?Low dropout voltage.
V
DIF
鈮?/div>
1 V (I
O
鈮?/div>
1 A, T
J
鈮?/div>
125 藲C)
鈥?Built-in overcurrent protection circuit, thermal shut-down circuit.
鈥?Built-in Safe Operating Area protection circuit.
鈥?Compatible for
碌
PC2400 Series.
CONNECTION DIAGRAM
(TOP VIEW)
1
2
3
1: INPUT
2: GND
3: OUTPUT
ORDERING INFORMATION
Output Voltage
5V
6V
7V
8V
9V
10 V
12 V
15 V
18 V
Type Number
Package
MP-45G
(Isolated TO-220)
碌
PC2405AHF
碌
PC2406AHF
碌
PC2407AHF
碌
PC2408AHF
碌
PC2409AHF
碌
PC2410AHF
碌
PC2412AHF
碌
PC2415AHF
碌
PC2418AHF
Document No. G10352EJ2V0DS00 (2nd edition)
Date Published December 1995 P
Printed in Japan
漏
1995
