UPBLED470L Datasheet

  • UPBLED470L

  • LED

  • 261.92KB

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

UPBLED470L
LOW VOLTAGE BLUE LED
P
RODUCT
P
REVIEW
KEY FEATURES
WWW .
Microsemi
.C
OM
Microsemi鈥檚 high brightness UPBLED470L product is a new LED which
features a low forward voltage for low power consumption. This offers
impressive brightness with industry leading thermal resisitivity. These products
deliver superior thermals that keep junction temperatures low with a remarkable
package thermal resisitivity of 110 degrees C/Watt. The blue packages also
deliver a very wide viewing angle able to easily integrate into optical lenses. The
Optomite package performs extremely well under extreme temperature
conditions with less wavelength shift and intensity degradation seen by many
competitors.
IMPORTANT:
For the most current data, consult
MICROSEMI鈥檚
website:
http://www.microsemi.com
Low Thermal Resistance
Rugged Optomite 0603 package
Low forward voltage
High Brightness
Broad angular Emission
APPLICATIONS/BENEFITS
Mobil Phone Keypad
Panel, button, switch indicators.
Backlighting
Signage
Signals and Marker Lights
ABSOLUTE MAXIMUM RATINGS AT 25潞 C
(UNLESS OTHERWISE SPECIFIED)
Parameters
Forward Drive Current
Peak Forward Current
LED Operating Junction Temperature
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Electrostatic Discharge
ESD classification
THERMAL CHARACTERISTICS
(UNLESS OTHERWISE SPECIFIED)
Symbol
I
F
I
FP
Tj
V
R
P
D
T
OPR
T
S
ESD
Value
30
100
-40 to +150
8
125
-40 to +125
-45 to +150
1000
Class 2
Unit
DC
mA
mA
擄C
V
mW
擄C
擄C
V

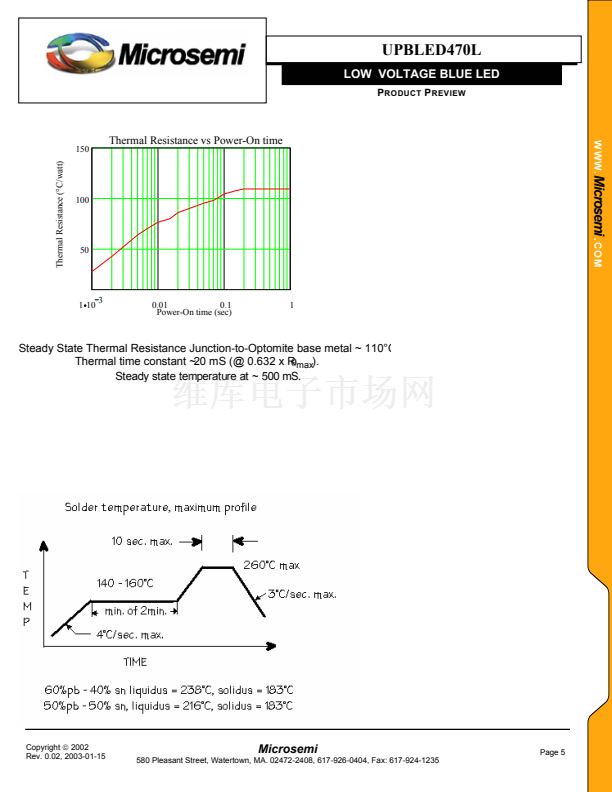

Thermal Resistance
Junction-to Soldering Point
Symbol
R
胃JS
Value
110
Units
擄C/W
UPBLED-470L
UPBLED-470L
For operation of these LEDs in pulse mode applications, devices may be used in conjunction with
the Microsemi LX1992LED Drivers
Copyright
錚?/div>
2002
Rev. 0.02, 2003-01-15
Microsemi
580 Pleasant Street, Watertown, MA. 02472-2408, 617-926-0404, Fax: 617-924-1235
Page 1
