ULN2064LBTR Datasheet

  • ULN2064LBTR

  • Interface IC

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

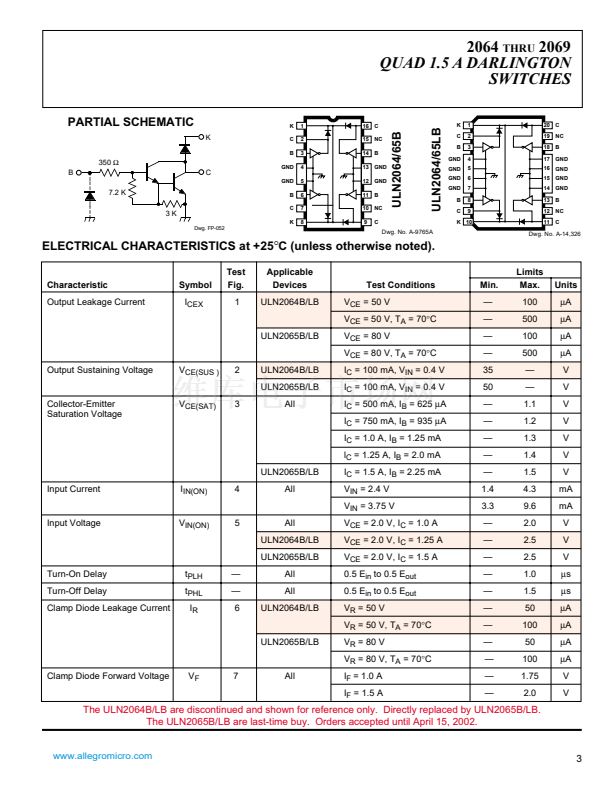

2064
THRU
2069
ULN2064/65B
K
C
B
GND
GND
B
C
K
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
C
NC
B
GND
GND
B
NC
C
QUAD 1.5 A DARLINGTON SWITCHES
High-voltage, high-current Darlington arrays ULN2064B/LB
through ULN2069B/LB are designed for interface between low-level
logic and a variety of peripheral loads such as relays, solenoids, dc and
stepper motors, magnetic print hammers, multiplexed LED and incan-
descent displays, heaters, and similar loads. Output off voltage ratings
of 50 V and 80 V are available. These quad drivers can drive resistive
loads to 480 watts (1.5 A x 80 V, 26% duty cycle). For inductive
loads, sustaining voltages of 35 V and 50 V at 100 mA are specified.
Quad drivers ULN2064B/LB, ULN2065B/LB, ULN2068B/LB,
and ULN2069B/LB are intended for use with TTL, low-speed TTL,
and 5 V MOS logic. The ULN2065B/LB and ULN2069B/LB are
selected for the 80 V minimum output breakdown specification. The
ULN2068B/LB and ULN2069B/LB have pre-driver stages and are
recommended for applications requiring high gain (low input-current
loading). Quad-driver arrays are supplied with heat-sink contact tabs
in 16-pin plastic DlPs (suffix 鈥楤鈥? and 20-lead surface-mountable wide-
body SOICs (suffix 鈥楲B鈥?.
Data Sheet
29305H鈥?/div>
Dwg. No. A-9765A
ABSOLUTE MAXIMUM RATINGS
at +25
擄
C Free-Air Temperature
for Any One Driver
(unless otherwise noted)
Output Voltage, V
CEX
................
See Guide
Output Sustaining Voltage,
V
CE(SUS)
.............................
See Guide
Output Current, I
OUT
(Note 1) ..........
1.75 A
Input Voltage, V
IN
......................
See Guide
Input Current, I
B
(Note 2) ..................
25 mA
Supply Voltage,
V
S
(ULN2068B/LB & 2069B/LB) ...
10 V
Total Package Power Dissipation,
P
D
.......................................
See Graph
Operating Temperature Range,
T
A
.................................
-20
擄
C to +85
擄
C
Storage Temperature Range,
T
S
................................
-55
擄
C to -150
擄
C
1. Allowable combinations of output current,
number of outputs conducting, and duty cycle
are shown on the following pages.
2. Input current may be limited by maximum
allowable input voltage.
FEATURES
s
s
s
s
s
TTL, DTL, MOS, CMOS Compatible Inputs
Transient-Protected Outputs
Loads to 480 Watts
Heat-Sink Contact Tabs
Automotive Capable
The ULN2064B and ULN2064LB are discontinued and
shown for reference only. Directly replaced by
ULN2065B and ULN2065LB.
The ULN2065B, ULN2065LB, ULN2068B, ULN2068LB,
ULN2069B, and ULN2069LB are last-time buy. Orders
accepted until April 15, 2002.
Always order by complete part number, e.g.,
ULN2068B .
