DC subminiature switch
Features
- Enclosed switch comply-
ing with IP 6K7
- Silicon-free version availa-
ble
- Models available for ope-
rating temperatures up to
120擄 C
- Rated for currents up to
10 A at 250 V AC
- Range of auxiliary actua-
tors available (can also be
retrofitted)
- Various contact materials
available, depending on
application
- Mechanical life:
min. 1 x 10
6
operations
- Wide variety of connec-
tion options
- Numerous approvals
Technical specifications
Contact configuration
Contact gap
Switching voltage (max.)
Switched current (max.)
Operating force
Total actuator travel
Mechanical life
Electrical life
Ambient temperature
Model with leads
Proof tracking index
Materials
Housing
Actuator
Contacts DC1, DC2, DC4
DC3
Terminals
Auxiliary actuator
Sealing gasket
Leads
Approvals
Degree of protection
(switch interior)
40
S.P.D.T, S.P.S.T. - N.O.,
S.P.S.T. - N.C.
< 3 mm (碌)
250 V AC
0.1 to 10 A AC (see table)
200 to 340 cN without aux.
actuator, depend. on model
ca. 1.6 mm
min. 1 x 10
6
operations
min. 1 0 000 operations in
compliance with VDE 0630
- 40擄 C to + 85擄 C /+120擄 C
- 40擄 C to + 105擄 C
PTI 175, PTI 250 on request
PET / PBT (UL 94 V-0)
POM (T85), PBT (T120)
AgNi
AuAgPt (crosspoint)
CuZn (silver-plated)
Stainless steel or plastic
SI (VMQ)
silicon-free alternative avail.
Cu (PVC-sheathed)
depending on model
IP6K7

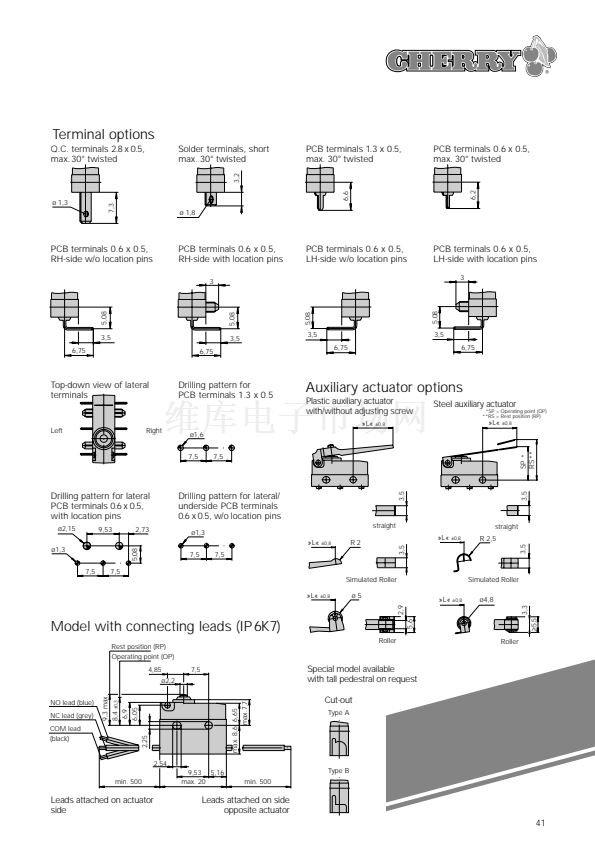

Dimensions in mm
Rest position
Operating point
max. 20
4,85
7,5
酶2,2
max. 9,3
2,25
2,54
7,5
9,53
7,5
5,16
2,73
2,35
max. 7,7
8,4
鹵0,3
6,05
6,65
6,9
6,5
1
2
3
4
