UCQ5812EPFTR Datasheet

  • UCQ5812EPFTR

  • VACUUM FLUORESCENT DISPLAY DRIVER|BICMOS/MOS|LDCC|28PIN|PLAS...

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

5812-F
UCQ5812EPF
SERIAL
DATA OUT
LOGIC
SUPPLY
LOAD
SUPPLY
OUT
20
SERIAL
DATA IN
OUT
19
OUT
1
BiMOS II 20-BIT SERIAL-INPUT, LATCHED
SOURCE DRIVERS FOR -40
擄
C TO +85
擄
C OPERATION
The UCQ5812AF/EPF combine a 20-bit CMOS shift register, data
latches, and control circuitry with high-voltage bipolar source drivers and
active DMOS pull-downs for reduced supply current requirements. Although
designed primarily for vacuum-fluorescent displays, the high-voltage, high-
current outputs also allow them to be used in other peripheral power driver
applications.
25
24
23
OUT
2
Data Sheet
26182.27B
OUT
18
5
6
7
8
9
10
V
DD
28
V
BB
27
26
4
3
2
1
OUT
12
11
ABSOLUTE MAXIMUM RATINGS
at T
A
= 25擄C
Logic Supply Voltage, V
DD
.....................
15 V
Driver Supply Voltage, V
BB
....................
60 V
Continuous Output Current Range,
I
OUT
.................................
-40 to +15 mA
Input Voltage Range,
V
IN
........................
-0.3 V to V
DD
+ 0.3 V
Package Power Dissipation, P
D
(UCQ5812AF) ...........................
3.12 W*
(UCQ5812EPF) ........................1.84
W鈥?/div>
Operating Temperature Range,
T
A
..................................
-40
擄
C to +85
擄
C
Storage Temperature Range,
T
S
................................
-55
擄
C to +150
擄
C
* Derate at rate of 22 mW/擄C above T
A
= +25擄C
鈥?Derate at rate of 15 mW/擄C above T
A
= +25擄C
Caution: Allegro CMOS devices have input static
protection but are susceptible to damage when
exposed to extremely high static electrical
charges.
Note that the UCQ5812AF (dual in-line package)
and UCQ5812EPF (PLCC package) are
electrically identical and share a common pin
number assignment.
2
N
81
IG
A6
S
鈥?/div>
E
t
D
en
W
em
E
c
N
la
R
rep
O
d
F
de
T
n
O
me
N
m
o
c
e
R
REGISTER
REGISTER
LATCHES
LATCHES
22
21
20
19
OUT
8
The CMOS shift register and latches allow direct interfacing with
microprocessor-based systems. With a 5 V supply, they will operate to at
least 3.3 MHz. At 12 V, higher speeds are possible. Especially useful for
inter-digit blanking, the BLANKING input disables the output source drives
and turns on the DMOS sink drivers. Use with TTL may require the use of
appropriate pull-up resistors to ensure an input logic high.
A CMOS serial data output enables cascade connections in applications
requiring additional drive lines. Similar devices are available as the
UCQ5810AF/LWF (10 bits), UCQ5811A (12 bits), and UCQ5818AF/EPF
(32 bits).
CLK
12
14
ST
17
13
15
OUT
11
16
GROUND
BLANKING
STROBE
CLOCK
OUT
10
OUT
9
18
Dwg. PP-059-1
The output source drivers are high-voltage PNP-NPN Darlingtons with a
minimum breakdown of 60 V and are capable of sourcing up to 40 mA. The
DMOS active pull-downs are capable of sinking up to 15 mA.

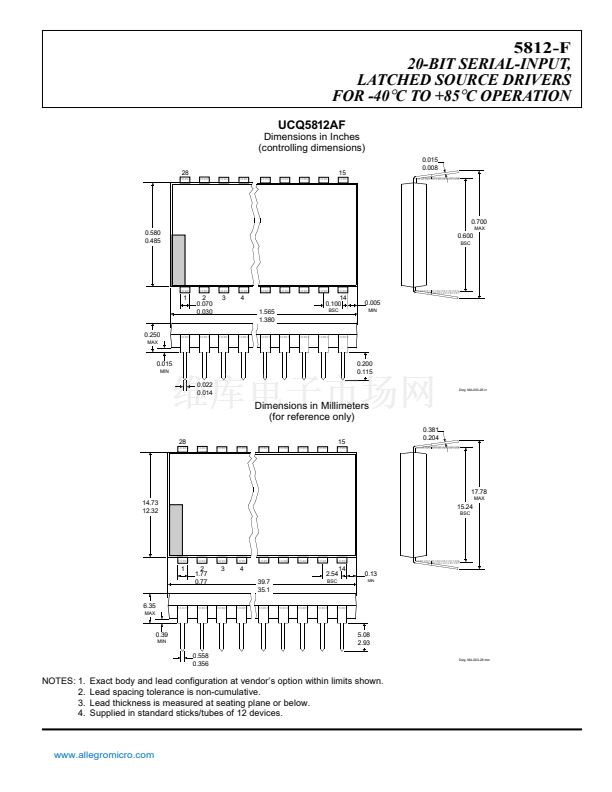

The UCQ5812AF is supplied in a 28-pin dual in-line plastic package with
0.600" (15.24 mm) row spacing. For surface mounting, the UCQ5812EPF is
furnished in 28-lead plastic chip carrier (quad pack) with 0.050"(1.22 mm)
centers. Copper lead-frames, reduced supply current requirements and lower
output saturation voltages, allow continuous operation, with all outputs
sourcing 25 mA, of the UCQ5812AF over the operating temperature range,
and the UCQ5812EPF up to +75擄C.
FEATURES
s
s
s
s
s
High-Speed Source Drivers
60 V Source Outputs
To 3.3 MHz Data Input Rate
Low-Output Saturation Voltages
Low-Power CMOS Logic and Latches
s
Active DMOS Pull-Downs
s
Reduced Supply Current
Requirements
s
Improved Replacement
for TL5812
Always order by complete part number, e.g.,
UCQ5812AF .
