Reversed Polarity Disconnect
DESCRIPTION
The UCC5629 Multimode SCSI Terminator provides a smooth transition
into the next generation of the SCSI Parallel Interface (SPI-2). It automati-
cally senses the bus, via DIFFB, and switches the termination to either sin-
gle ended (SE) or low voltage differential (LVD) SCSI, dependent on which
type of devices are connected to the bus. The UCC5629 can not be used
on a HVD, EIA485, differential SCSI bus. If the UCC5629 detects a HVD
SCSI device, it switches to a high impedance state.
The Multimode terminator contains all functions required to terminate and
auto detect and switch modes for SPI-2 bus architectures. Single Ended
and Differential impedances and currents are trimmed for maximum effec-
tiveness. Fail Safe biasing is provided to insure signal integrity. Device/Bus
type detection circuitry is integrated into the terminator to provide automatic
switching of termination between single ended and LVD SCSI and a high
impedance for HVD SCSI. The multimode function provides all the perform-
ance analog functions necessary to implement SPI-2 termination in a sin-
gle monolithic device.
The UCC5629 is offered in a 48 pin LQFP package for a temperature range
of 0擄C to 70擄C.

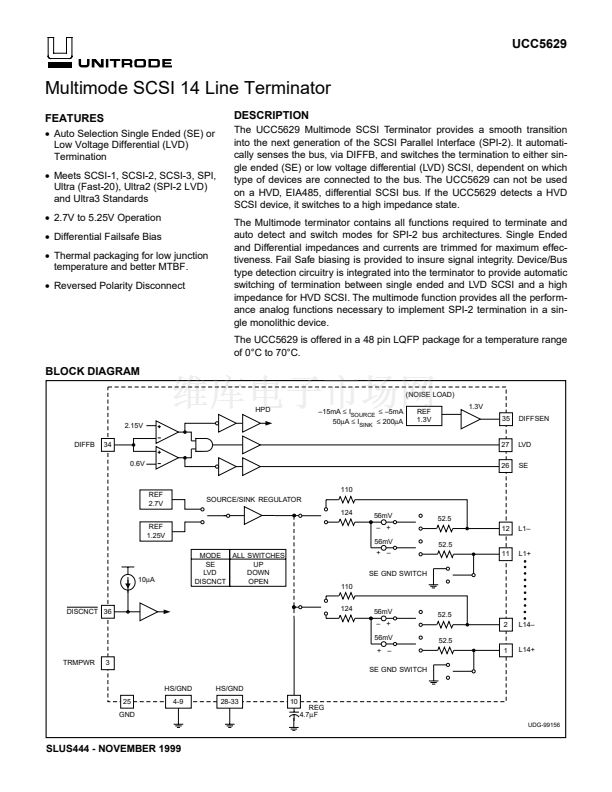

BLOCK DIAGRAM
(NOISE LOAD)
1.3V
HPD
2.15V
鈥?5mA
鈮?/div>
I
SOURCE
鈮?/div>
鈥?mA
50碌A(chǔ)
鈮?/div>
I
SINK
鈮?/div>
200碌A(chǔ)
REF
1.3V
35
DIFFSEN
DIFFB
34
0.6V
27
26
LVD
SE
REF
2.7V
110
SOURCE/SINK REGULATOR
124
56mV
鈥?+
56mV
52.5
12
52.5
11
REF
1.25V
ALL SWITCHES
MODE
UP
SE
DOWN
LVD
OPEN
DISCNCT
L1鈥?/div>
+ 鈥?/div>
L1+
10碌A(chǔ)
SE GND SWITCH
110
124
DISCNCT 36
56mV
鈥?+
56mV
+ 鈥?/div>
52.5
2
52.5
1
L14鈥?/div>
L14+
TRMPWR
3
SE GND SWITCH
HS/GND
HS/GND
25
GND
4-9
28-33
10
REG
4.7碌F
.
UDG-99156
SLUS444 - NOVEMBER 1999
