UCC2977 Datasheet

  • UCC2977

  • 多拓撲壓電變壓器控制器

  • 520.03KB

  • 30頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

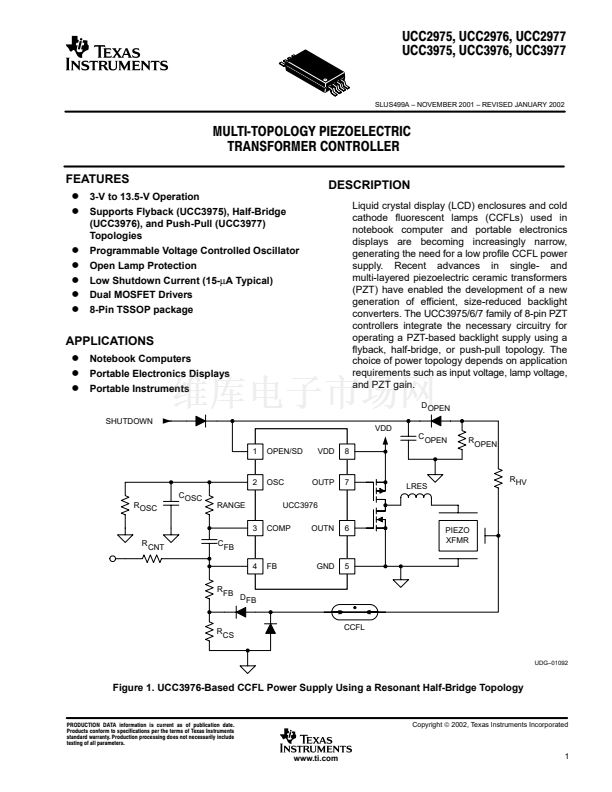

UCC2975, UCC2976, UCC2977
UCC3975, UCC3976, UCC3977
SLUS499A 鈥?NOVEMBER 2001 鈥?REVISED JANUARY 2002

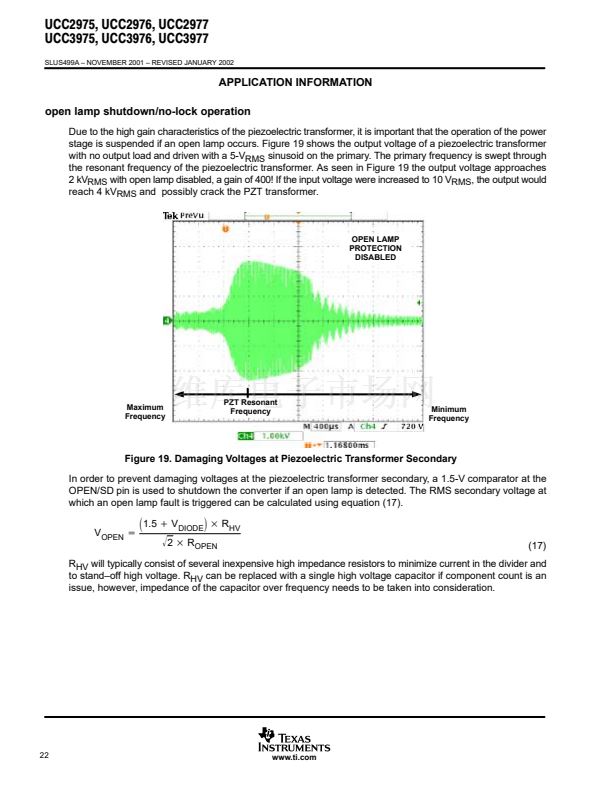

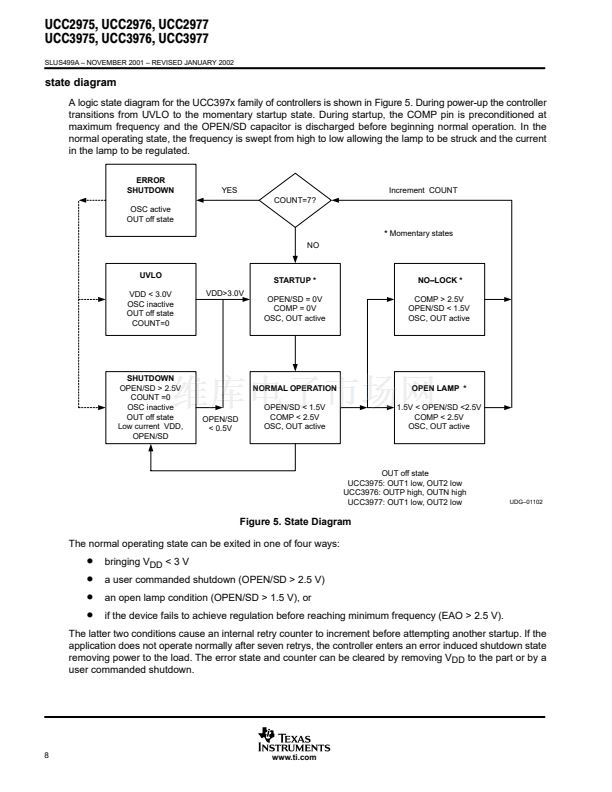

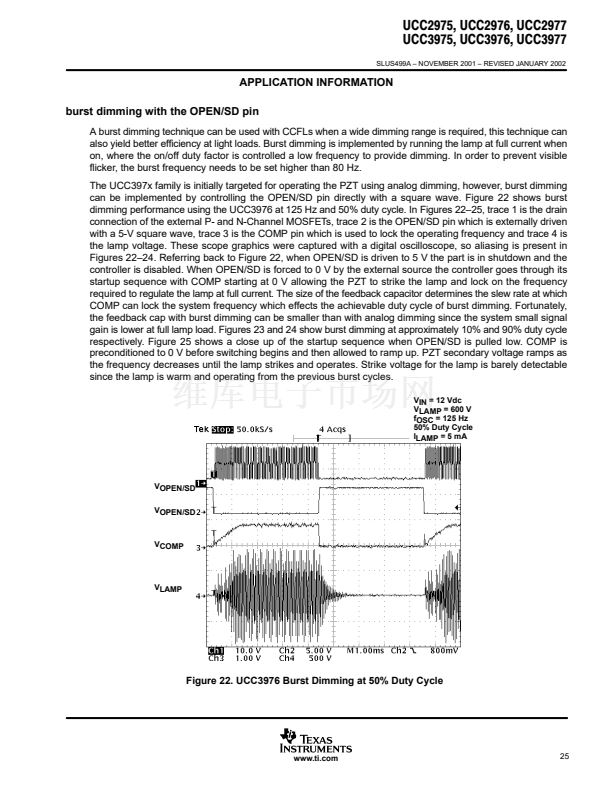

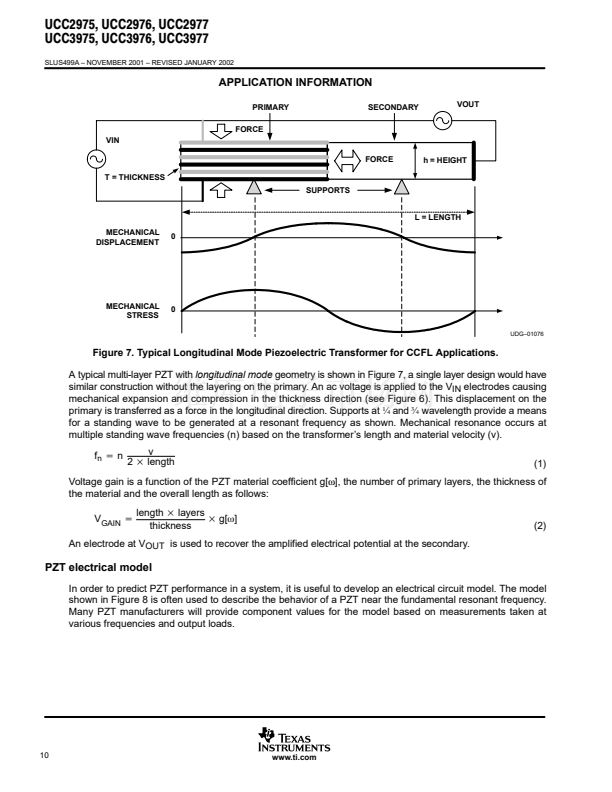

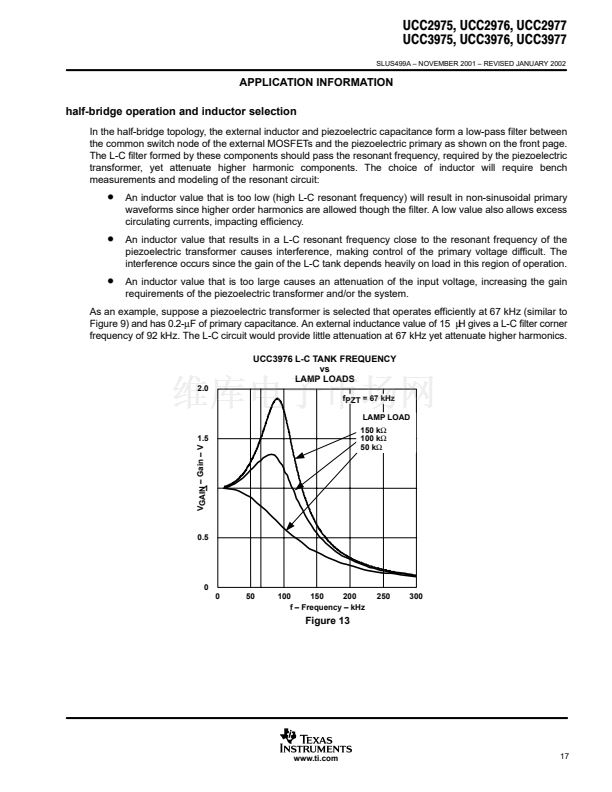

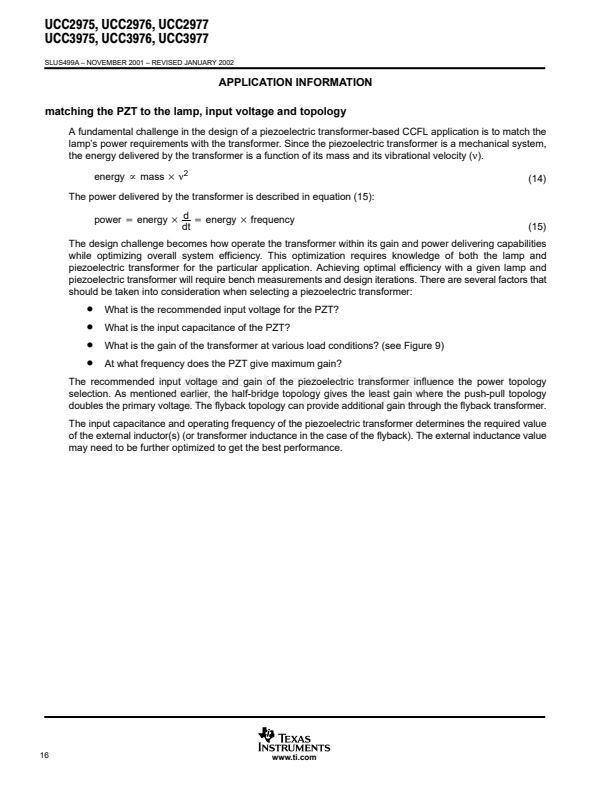

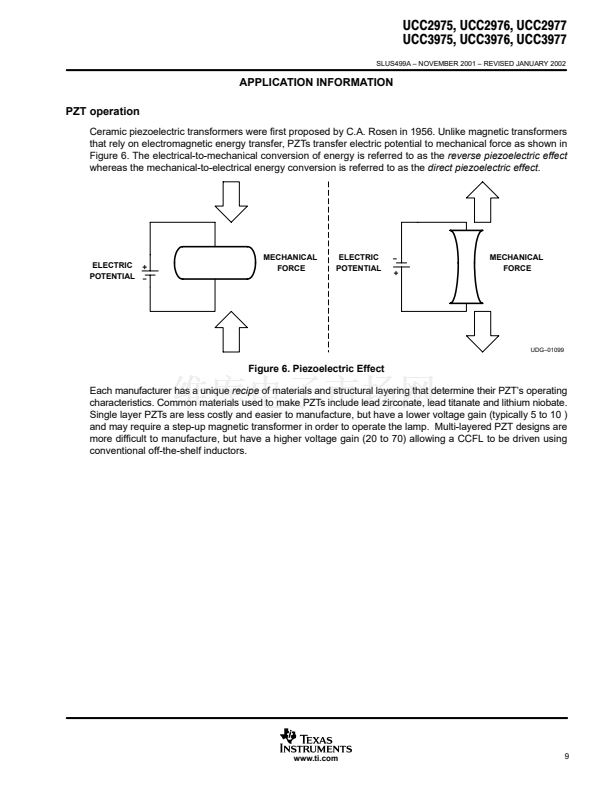

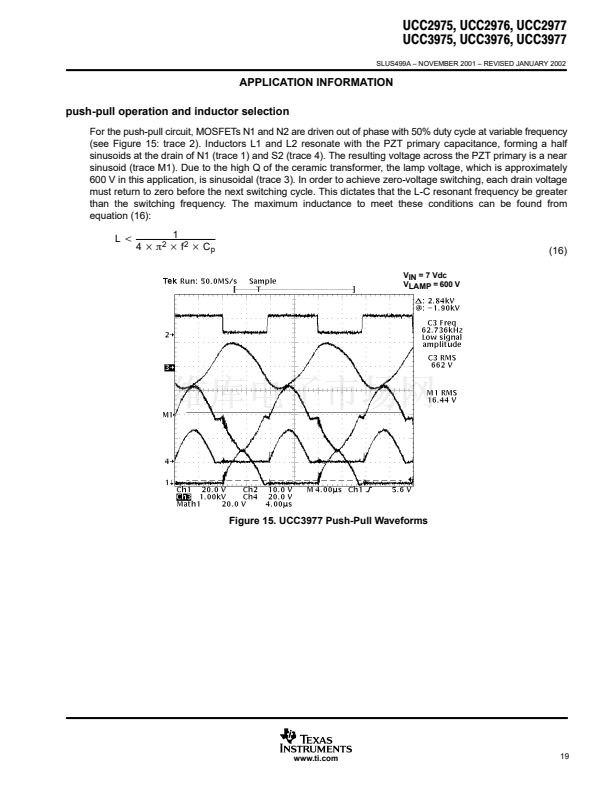

MULTI TOPOLOGY PIEZOELECTRIC
TRANSFORMER CONTROLLER
FEATURES
D
3-V to 13.5-V Operation
D
Supports Flyback (UCC3975), Half-Bridge
D
D
D
D
D
(UCC3976), and Push-Pull (UCC3977)
Topologies
Programmable Voltage Controlled Oscillator
Open Lamp Protection
Low Shutdown Current (15-碌A(chǔ) Typical)
Dual MOSFET Drivers
8-Pin TSSOP package
DESCRIPTION
Liquid crystal display (LCD) enclosures and cold
cathode fluorescent lamps (CCFLs) used in
notebook computer and portable electronics
displays are becoming increasingly narrow,
generating the need for a low profile CCFL power
supply. Recent advances in single- and
multi-layered piezoelectric ceramic transformers
(PZT) have enabled the development of a new
generation of efficient, size-reduced backlight
converters. The UCC3975/6/7 family of 8-pin PZT
controllers integrate the necessary circuitry for
operating a PZT-based backlight supply using a
flyback, half-bridge, or push-pull topology. The
choice of power topology depends on application
requirements such as input voltage, lamp voltage,
and PZT gain.
D OPEN
APPLICATIONS
D
Notebook Computers
D
Portable Electronics Displays
D
Portable Instruments
SHUTDOWN
VDD
C OPEN
1
OPEN/SD
VDD
8
R HV
R OPEN
2
R OSC
C OSC
RANGE
3
R CNT
C FB
4
R FB
OSC
OUTP
7
LRES
UCC3976
COMP
OUTN
6
PIEZO
XFMR
FB
GND
5
D FB
CCFL
R CS
UDG鈥?1092

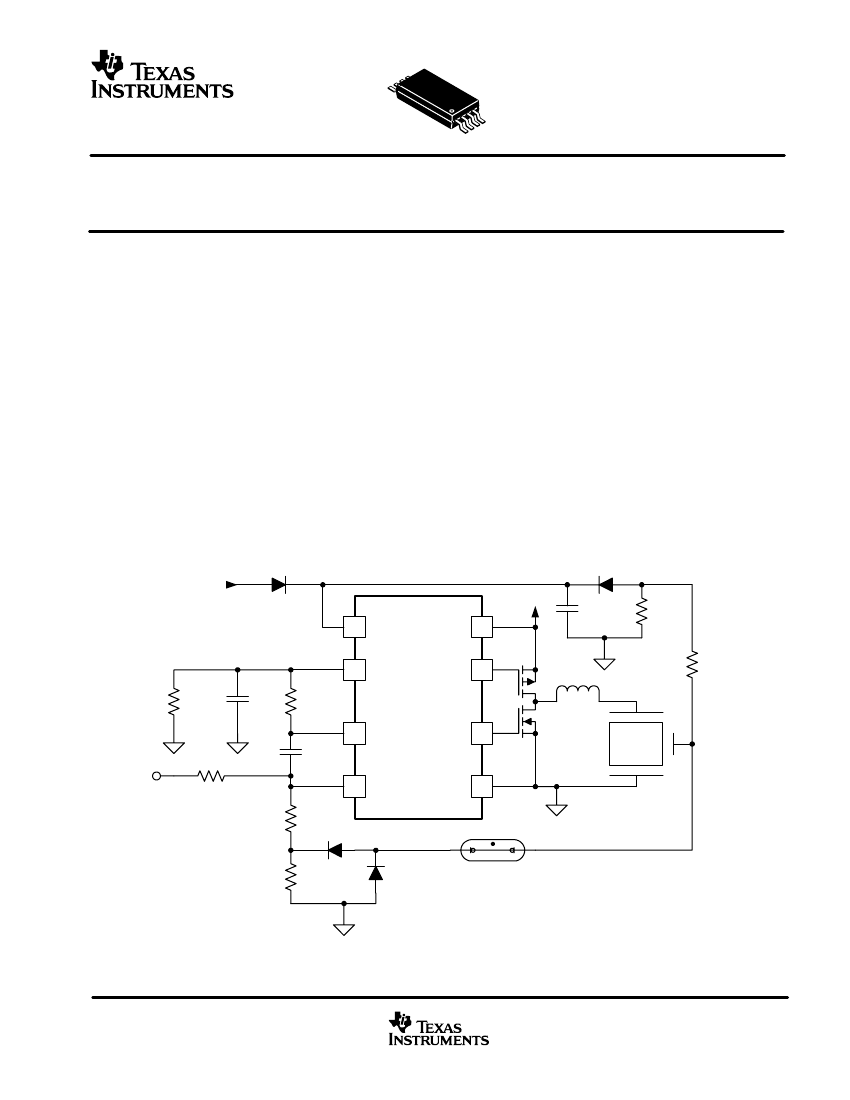

Figure 1. UCC3976-Based CCFL Power Supply Using a Resonant Half-Bridge Topology
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
2002, Texas Instruments Incorporated
www.ti.com
1
