UCC1921 Datasheet

  • UCC1921

  • Latchable Negative Floating Hot Swap Power Manager

  • 498.68KB

  • 11頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

UCC1921
UCC2921
UCC3921
Latchable Negative Floating Hot Swap Power Manager
FEATURES
鈥?/div>
Precision Fault Threshold
鈥?/div>
Programmable:
Average Power Limiting, Linear
Current Control, Overcurrent Limit
and Fault Time
鈥?/div>
Fault Output Indication Signal
鈥?/div>
Automatic Retry Mode or Latched
Operation Mode
鈥?/div>
Shutdown Control
鈥?/div>
Undervoltage Lockout
鈥?/div>
250碌s Glitch Filter on the SDFLTCH
pin
鈥?/div>
8-Pin DIL and SOIC
DESCRIPTION
The UCC3921 family of negative floating hot swap power managers pro-
vides complete power management, hot swap, and fault handling capa-
bility. The IC is referenced to the negative input voltage and is powered
through an external resistor connected to ground, which is essentially a
current drive as opposed to the traditional voltage drive. The onboard
10V shunt regulator protects the IC from excess voltage and serves as a
reference for programming the maximum allowable output sourcing cur-
rent during a fault. All control and housekeeping functions are integrated
and externally programmable. These include the fault current level, maxi-
mum output sourcing current, maximum fault time, selection of Retry or
Latched mode, soft start time, and average power limiting. In the event of
a constant fault, the internal timer will limit the on time from less than
0.1% to a maximum of 3% duty cycle. The duty cycle modulation de-
pends on the current into PL, which is a function of the voltage across
the FET, thus limiting average power dissipation in the FET. The fault
level is fixed at 50mV across the current sense amplifier to minimize total

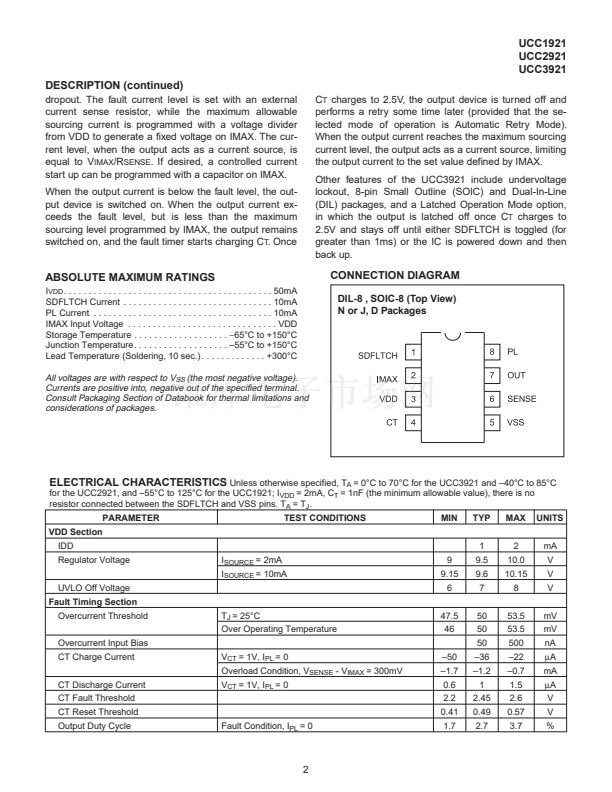

(continued)
BLOCK DIAGRAM
UDG-99052
3/98
