UC3573 Datasheet

  • UC3573

  • Buck Pulse Width Modulator Stepdown Voltage Regulator

  • 5頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

UC1573
UC2573
UC3573
Buck Pulse Width Modulator Stepdown Voltage Regulator
FEATURES
鈥?/div>
Simple Single Inductor Buck PWM
Stepdown Voltage Regulation
鈥?/div>
Drives External PMOS Switch
鈥?/div>
Contains UVLO Circuit
鈥?/div>
Includes Pulse-by-Pulse Current Limit
鈥?/div>
Low 50碌A(chǔ) Sleep Mode Current
DESCRIPTION
The UC3573 is a Buck pulse width modulator which steps down and regu-
lates a positive input voltage. The chip is optimized for use in a single in-
ductor buck switching converter employing an external PMOS switch. The
block diagram consists of a precision reference, an error amplifier config-
ured for voltage mode operation, an oscillator, a PWM comparator with
latching logic, and a 0.5A peak gate driver. The UC3573 includes an
undervoltage lockout circuit to insure sufficient input supply voltage is pres-
ent before any switching activity can occur, and a pulse-by-pulse current
limit. Input current can be sensed and limited to a user determined maxi-
mum value. In addition, a sleep comparator interfaces to the UVLO circuit
which turns the chip off when the input voltage is below the UVLO thresh-
old. This reduces the supply current to only 50碌A(chǔ), making the UC3573
ideal for battery powered applications.

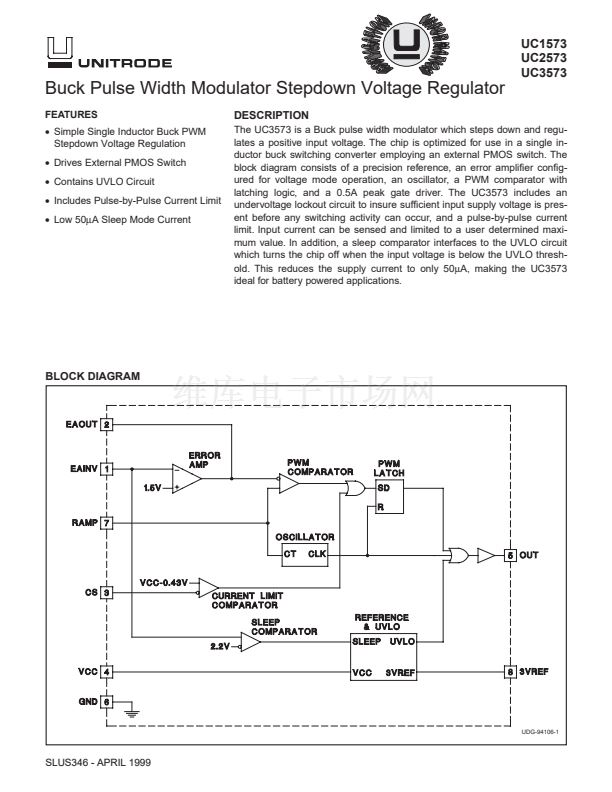

BLOCK DIAGRAM
UDG-94106-1

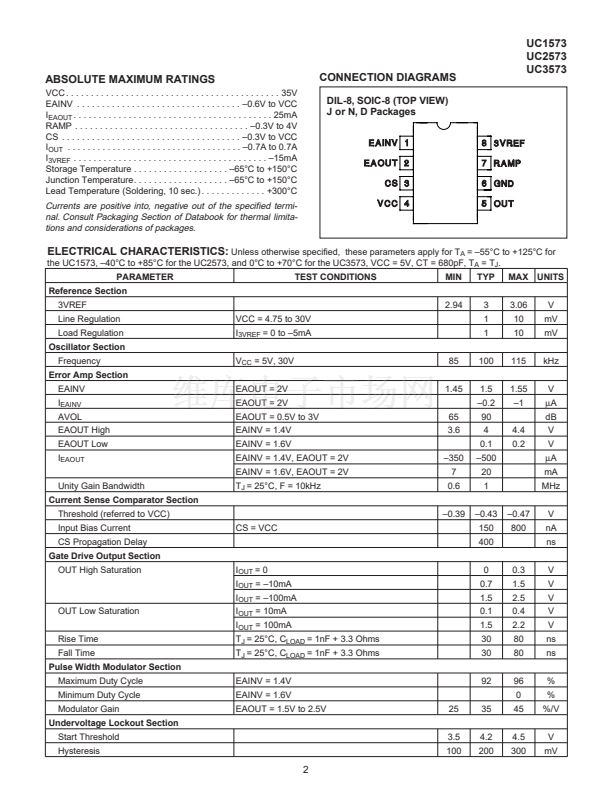

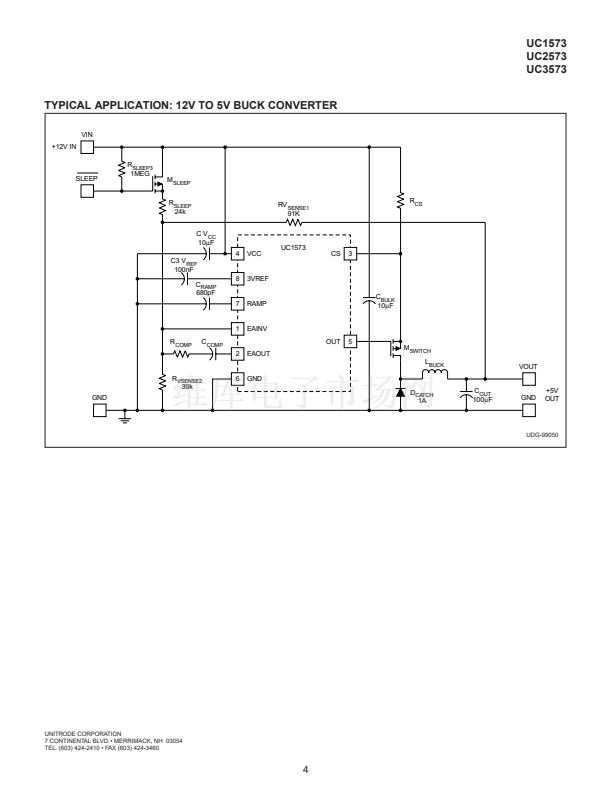

SLUS346 - APRIL 1999
