鈥?/div>
The master power supply, which is automatically designated as the supply
that regulates to the highest voltage, drives the share bus with a voltage
Compatible with Existing Power
Supply Designs Incorporating Remote
proportional to its output current. The UC3902 trims the output voltage of
Output Voltage Sensing
the other paralleled supplies so that they each support their share of the
load current. Typically, each supply is designed for the same current level
Differential Share Bus
although that is not necessary for use with the UC3902. By appropriately
Precision Current Sense Amplifier with
scaling the current sense resistor, supplies with different output current ca-
Gain of 40
pability can be paralleled with each supply providing the same percentage
of their output current capability for a particular load.
UVLO (Undervoltage Lockout)
Circuitry
A differential line is used for the share bus to maximize noise immunity and
accommodate different voltage drops in each power converter鈥檚 ground re-
User Programmable Share Loop
turn line. Trimming of each converter鈥檚 output voltage is accomplished by
Compensation
injecting a small current into the output voltage sense line, which requires a
small resistance (typically 20鈩?鈥?100鈩? to be inserted.

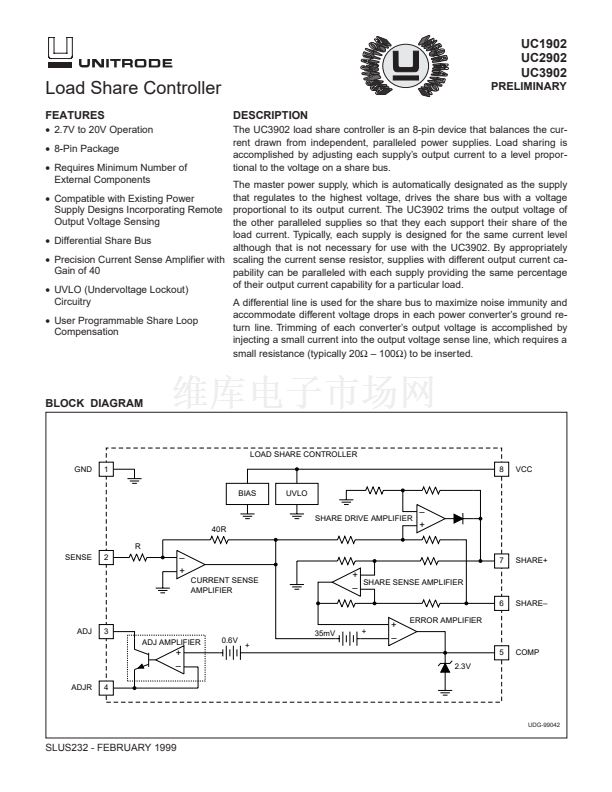

BLOCK DIAGRAM
LOAD SHARE CONTROLLER
GND
1
BIAS
UVLO
SHARE DRIVE AMPLIFIER
40R
R
SENSE
2
8
VCC
鈥?/div>
+
鈥?/div>
+
CURRENT SENSE
AMPLIFIER
7
SHARE+
+
SHARE SENSE AMPLIFIER
鈥?/div>
6
SHARE鈥?/div>
ADJ
3
ADJ AMPLIFIER
0.6V
35mV
+
+
+
鈥?/div>
ERROR AMPLIFIER
+
鈥?/div>
ADJR
4
5
2.3V
COMP
UDG-99042
SLUS232 - FEBRUARY 1999
