碌A(chǔ)7900
SERIES
NEGATIVE VOLTAGE REGULATORS
SLVS058D 鈭?JUNE 1976 鈭?REVISED APRIL 2004
D
D
D
D
D
D
D
3-Terminal Regulators
Output Current Up To 1.5 A
No External Components
Internal Thermal Overload Protection
High-Power Dissipation Capability
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation
KCS (TO-220) PACKAGE
(TOP VIEW)
INPUT
OUTPUT
INPUT
COMMON
KTE PACKAGE
(TOP VIEW)
description/ordering information
INPUT
OUTPUT
This
series
of
fixed-negative-voltage
INPUT
integrated-circuit voltage regulators is designed
COMMON
to complement Series
碌A(chǔ)7800
in a wide range of
applications. These applications include on-card
regulation for elimination of noise and distribution
problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output
current. The internal current limiting and thermal shutdown features of these regulators essentially make them
immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external
components to obtain adjustable output voltages and currents and also as the power-pass element in precision
regulators.
ORDERING INFORMATION
TJ
VO(NOM)
(V)
鈭?5
Power Flex (KTE)
TO-220, short shoulder (KCS)
Power Flex (KTE)
鈭?2
0擄C
to 125擄C
鈭?
鈭?
TO-220, short shoulder (KCS)
Power Flex (KTE)
TO-220, short shoulder (KCS)
Power Flex (KTE)
PACKAGE鈥?/div>
Reel of 2000
Tube of 50
Reel of 2000
Tube of 50
Reel of 2000
Tube of 50
Reel of 2000
ORDERABLE
PART NUMBER
碌A(chǔ)7915CKTER
碌A(chǔ)7915CKCS
碌A(chǔ)7912CKTER
碌A(chǔ)7912CKCS
碌A(chǔ)7908CKTER
碌A(chǔ)7908CKCS
碌A(chǔ)7905CKTER
TOP-SIDE
MARKING
碌A(chǔ)7915C
碌A(chǔ)7915C
碌A(chǔ)7912C
碌A(chǔ)7912C
碌A(chǔ)7908C
碌A(chǔ)7908C
碌A(chǔ)7905C
TO-220, short shoulder (KCS)
Tube of 50
碌A(chǔ)7905CKCS
碌A(chǔ)7905C

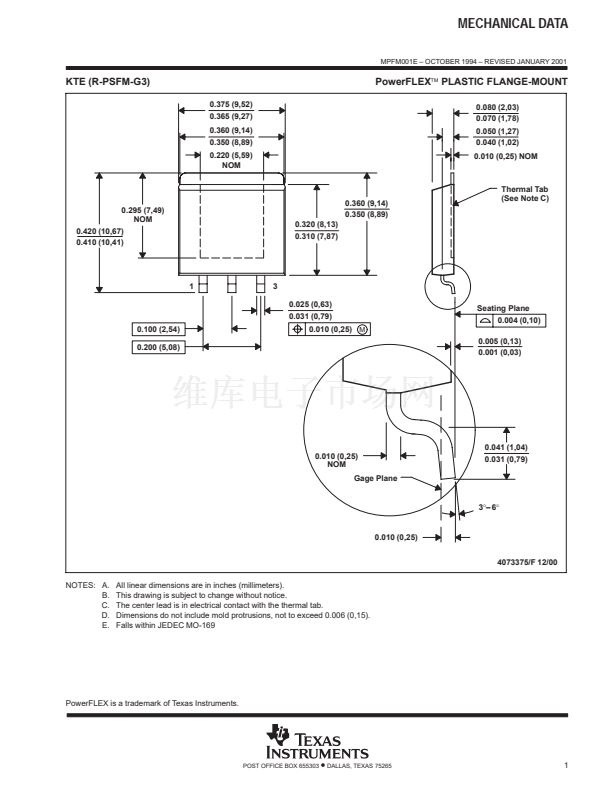

鈥?Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright
錚?/div>
2004, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
