U4090B-NFNG3 Datasheet

  • U4090B-NFNG3

  • Telecommunication IC

  • 31頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

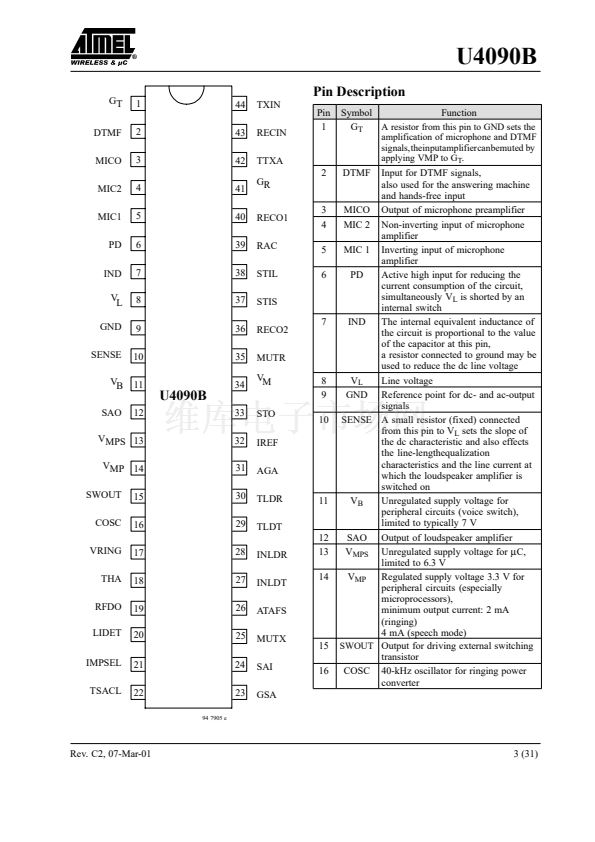

U4090B
Monolithic Integrated Feature Phone Circuit
Description
The
碌c-controlled
telephone circuit U4090B is a linear
integrated circuit for use in feature phones, answering
machines and fax machines. It contains the speech circuit,
tone ringer interface with DC/DC converter, sidetone
equivalent and ear protection rectifiers. The circuit is line
powered and contains all components necessary for
amplification of signals and adaptation to the line.
An integrated voice switch with loudspeaker amplifier
allows loudhearing or hands-free operation. With an
anti-feedback function, acoustical feedback during
loudhearing can be reduced significantly. The generated
supply voltage is suitable for a wide range of peripheral
circuits.
Features
D
DC characteristic adjustable
D
Transmit and receive gain adjustable
D
Symmetrical input of microphone amplifier
D
Anti-clipping in transmit direction
D
Automatic line-loss compensation
D
Symmetrical output of earpiece amplifier
D
Built-in ear protection
D
DTMF and MUTE input
D
Adjustable sidetone suppression independent
of sending and receiving amplification
D
Speech circuit with two sidetone networks
D
Built-in line detection circuit
D
Integrated amplifier for loudhearing operation
D
Anti-clipping for loudspeaker amplifier
D
Improved acoustical feedback suppression
D
Power down
D
Voice switch
D
Tone ringer interface with dc/dc converter
D
Zero crossing detection
D
Common speaker for loudhearing and tone ringer
D
Supply voltages for all functional blocks of a
subscriber set
D
Integrated transistor for short circuiting the line
voltage
D
Answering machine interface
D
Operation possible from-10 mA line currents
Benefits
D
Savings of one piezo-electric transducer
D
Complete system integration of analog signal proces-
sing on one chip
D
Very few external components
Applications
Feature phone, answering machine, fax machine, speaker
phone

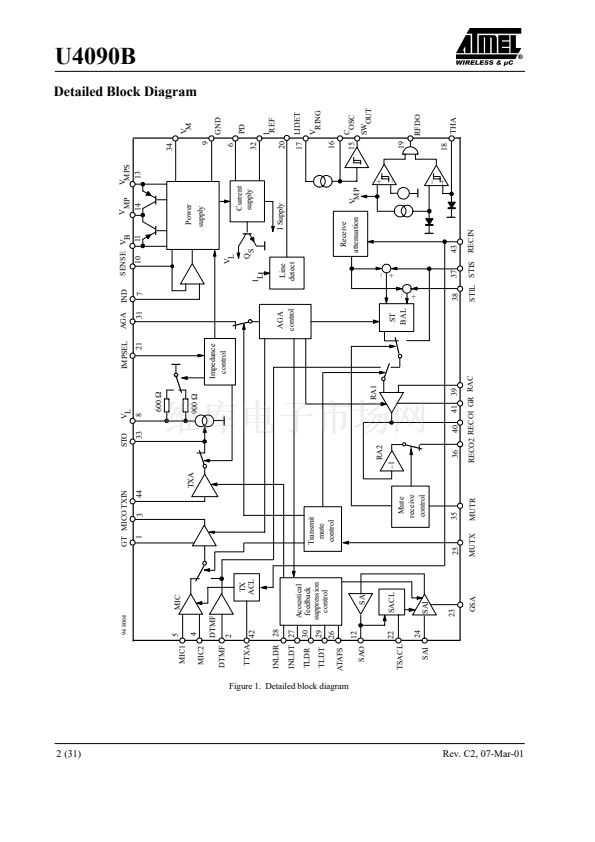

Block Diagram
Speech
circuit
Audio
amplifier
Loudhearing
and
Tone ringing
Voice
switch
Tone
ringer
MC with
EEPROM/
DTMF
94 8741
Ordering Information
Extended Type Number
U4090B-NFN
U4090B-NFNG3
Rev. C2, 07-Mar-01
Package
SSO44
SSO44
Remarks
Taped and reeled
1 (31)
