鈩?/div>
(TXC-05860), and ASPEN
廬
(TXC-05810) UTOPIA
Level 2 interface
鈥?Non-blocking switching capacity
鈥?8 UTOPIA Level 2 ports at rates of up to OC-12
鈥?Configurable cell (or packet chunk) size per port of
52 to 64 bytes
鈥?Switch engine operating at 33 MHz or 50 MHz
system clock
鈥?Switch bandwidth determined by the system clock
and settings
鈥?Host insertion/extraction for the local host interface
鈥?16-bit general purpose microprocessor interface
operating up to 33 MHz
鈥?Motorola MPC850/860 microprocessor compatible
鈥?Backpressure mechanism to avoid cell loss
鈥?Two priority levels supported for both unicast and
multicast to any combination of destination ports
鈥?Per port statistics supported
鈥?Chip diagnostic mode supported
鈥?Built in self test for power-on reset
鈥?LED leads for chip status and port status
鈥?Test Access Port for IEEE 1149.1 boundary scan
鈥?+3.3 V and +1.8 V power supplies
鈥?640-lead Plastic Ball Grid Array package (PBGA),
31 mm x 31 mm
AsTriX
錚?/div>
Device
DESCRIPTION
The AsTriX
鈩?/div>
(TXC-05840)
CellBus
Expansion Switch is
a single chip switching solution for ATM systems. In order
to meet the accelerating need for bandwidth in access
systems, the AsTriX is designed to allow higher
CellBus
throughput by aggregating multiple
CellBus
shelves
through a switch, and is capable of rates up to 800 Mbit/s
per port. The AsTriX ports support UTOPIA Level 2
interfaces. The switch is non-blocking, incorporating a
backpressure mechanism for eliminating congestion
towards any one port.
The switch may be used to scale a
CellBus
architecture to
deliver up to 9.6 Gbit/s system bandwidth, by connecting
up to 8
CellBus
segments (each capable of 1.2 Gbit/s
switching). A single port (or multiple ports) may be used to
implement an OC-12 uplink in a mux application.
Together with TranSwitch鈥檚 CUBIT, ASPEN and Sertopia
family devices, the AsTriX switch device can be used to
create a cost effective point-to-point serial backplane based
access system.
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Remote Access Concentrators
Multi-service Access Devices
Digital Cross Connect Systems
DSLAM
Routers

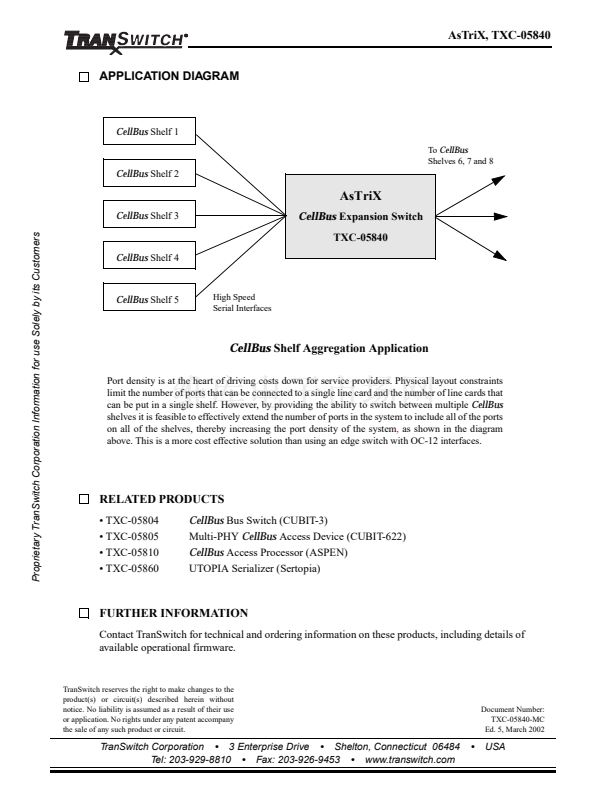

Aggregation of multiple
CellBus
shelves
Status
Clock, controls, test, etc.
Port 1
Port 2
UTOPIA Level 2 Ports
Port 3
Port 5
AsTriX
CellBus
Expansion Switch
Port 6
UTOPIA Level 2 Ports
Port 7
TXC-05840
Port 4
Address
Data
Controls
Port 8
Microprocessor Interface
Copyright
餂?/div>
2002 TranSwitch Corporation
AsTriX and Sertopia are trademarks of TranSwitch Corporation
TranSwitch, TXC, ASPEN, CUBIT and CellBus are registered trademarks of TranSwitch Corporation
Document Number:
TXC-05840-MC
Ed. 5, March 2002
TranSwitch Corporation
鈥?/div>
3 Enterprise Drive
鈥?/div>
Shelton, Connecticut 06484
Tel: 203-929-8810
鈥?/div>
Fax: 203-926-9453
鈥?/div>
www.transwitch.com
鈥?/div>
USA
Proprietary TranSwitch Corporation Information for use Solely by its Customers
