TXC-05802BIPQ Datasheet

  • TXC-05802BIPQ

  • ATM DATA-LINK SWITCHING/ROUTING|CMOS|QFP|208PIN|PLASTIC

  • 90頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

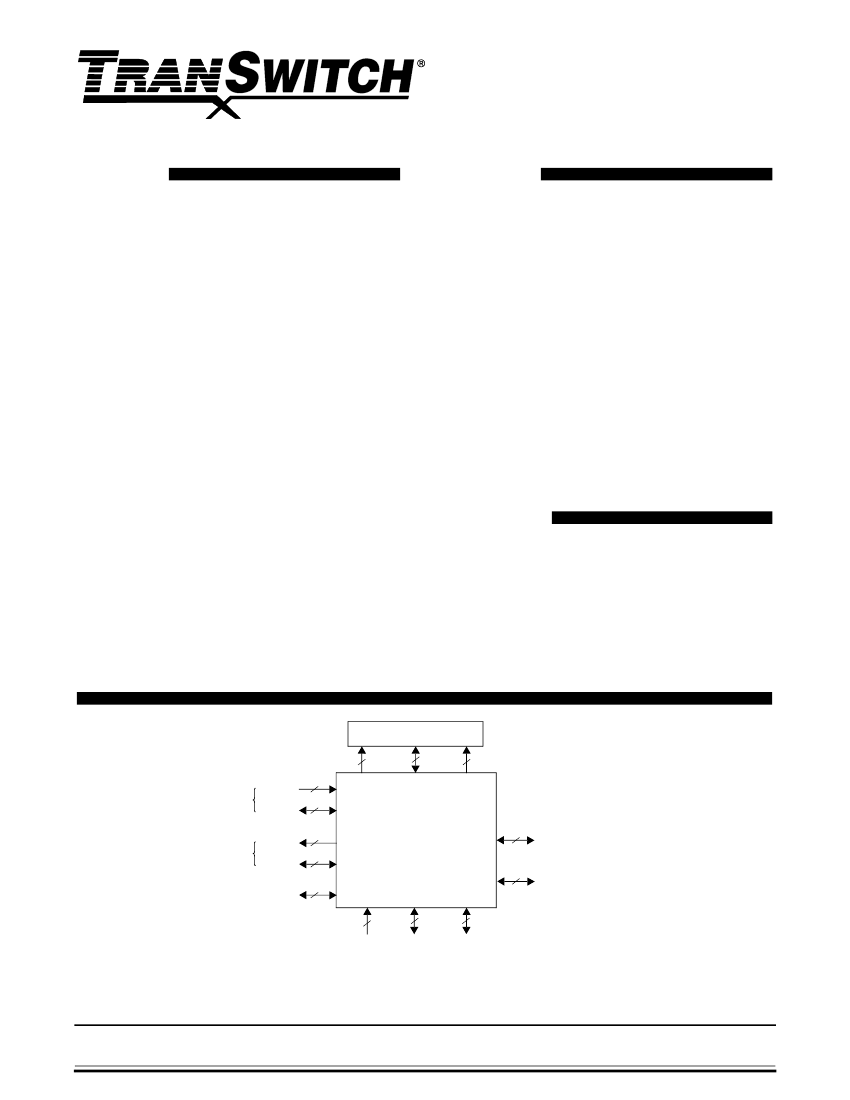

CUBIT
廬
-Pro Device
CellBus
廬
Bus Switch
TXC-05802B
DATA SHEET
FEATURES

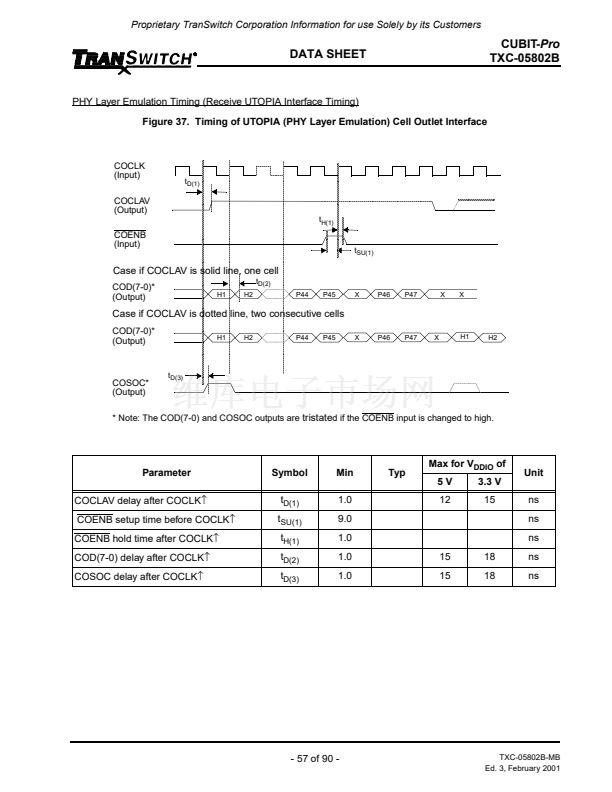

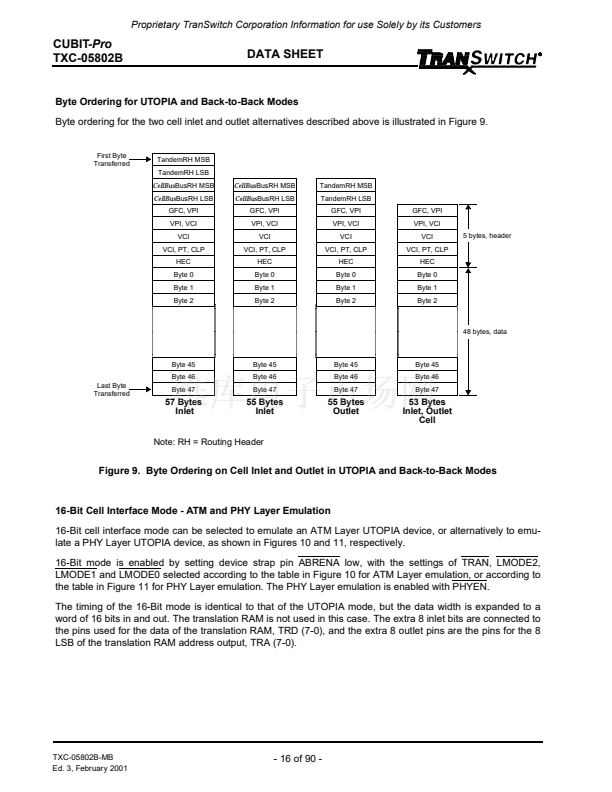

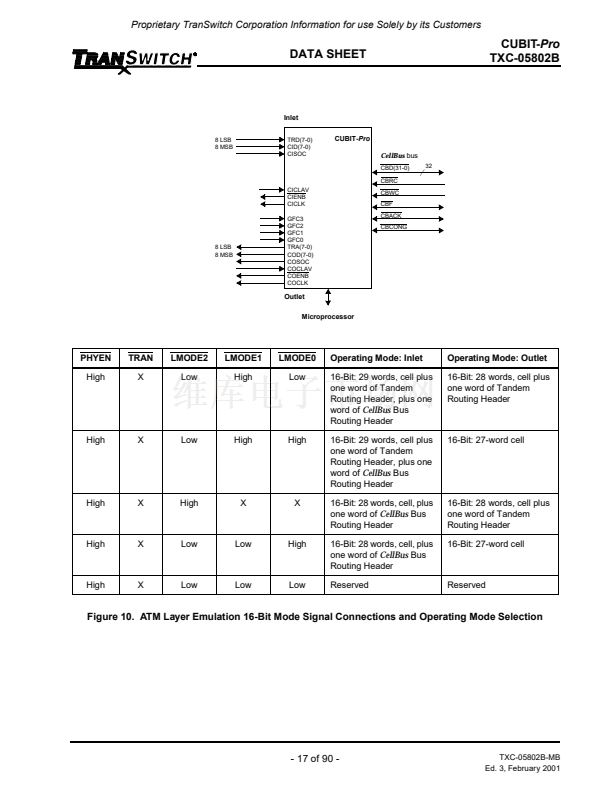

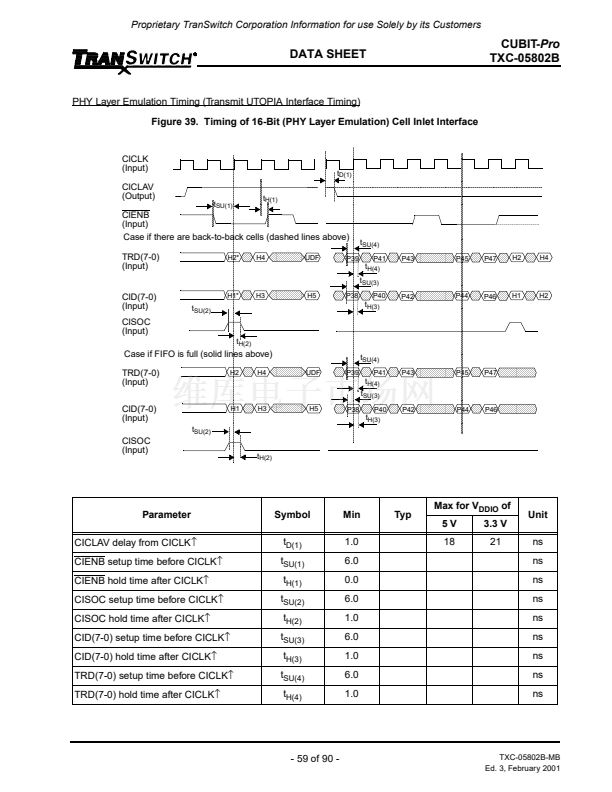

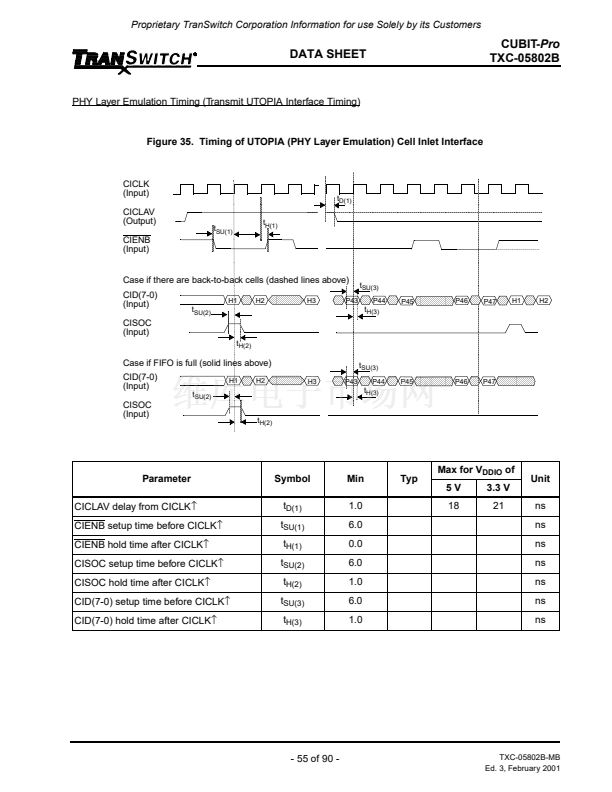

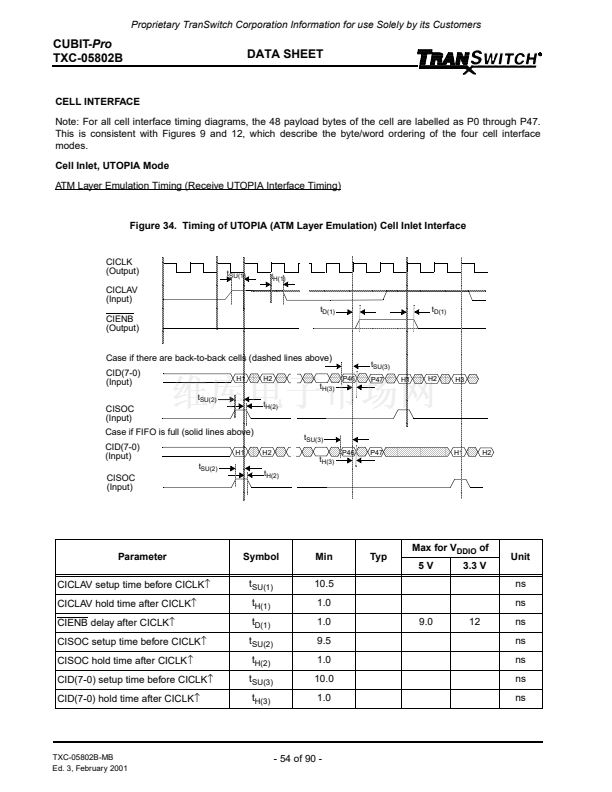

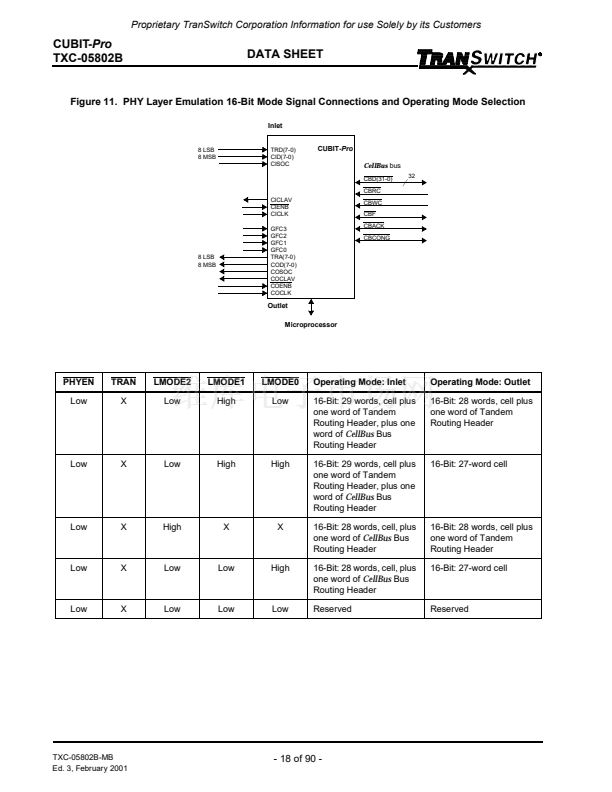

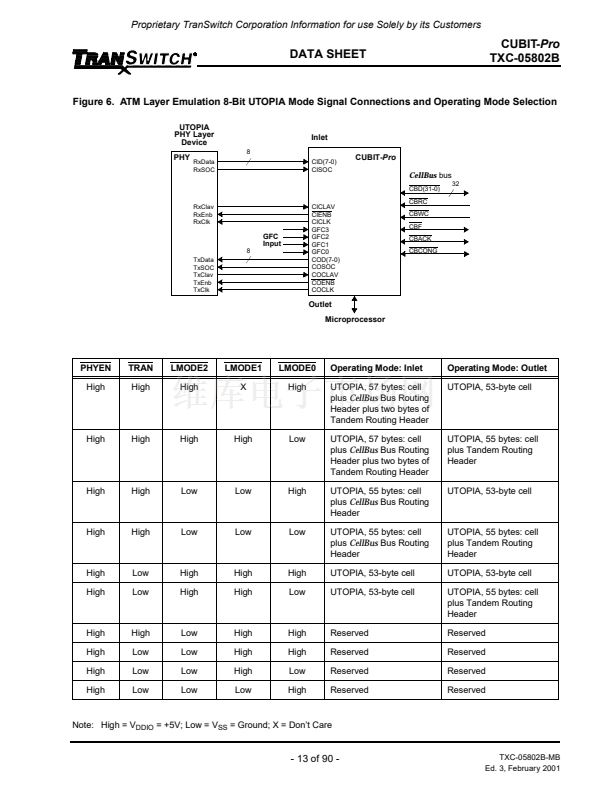

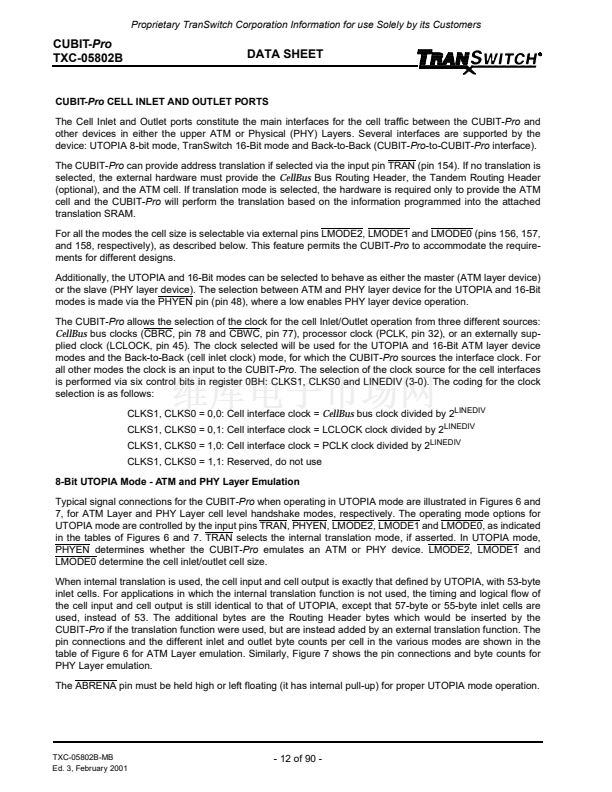

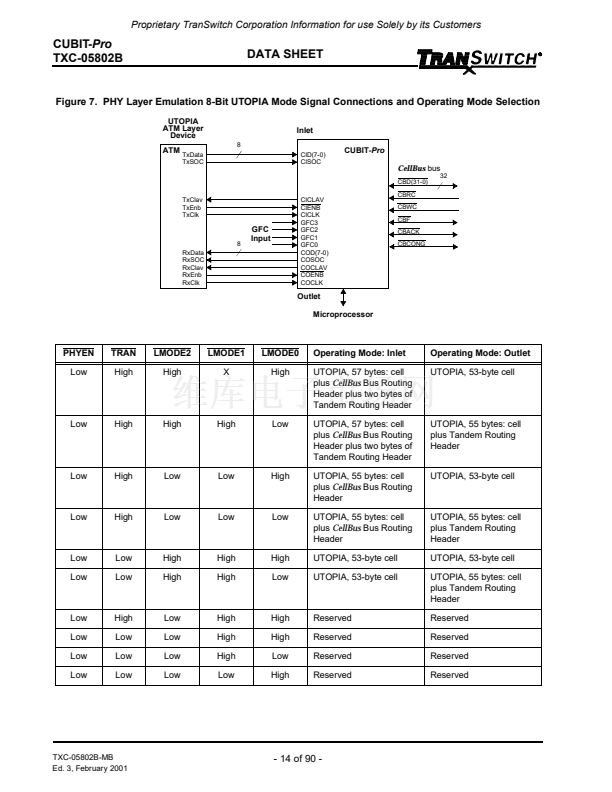

鈥?UTOPIA and 16-Bit (ATM or PHY) Layer cell inter-
faces

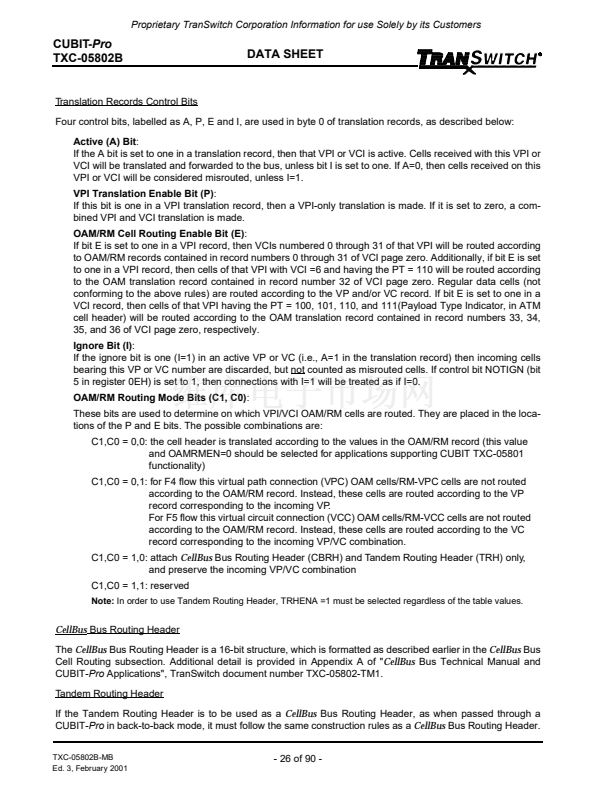

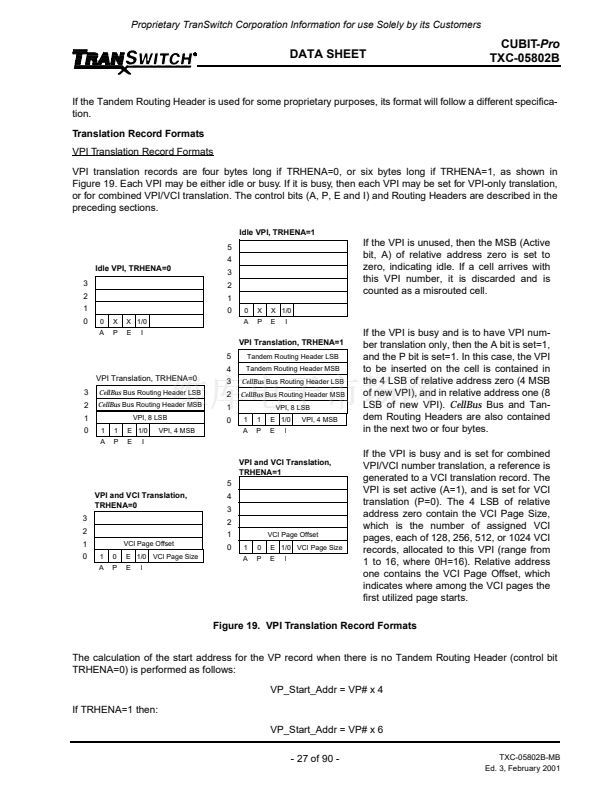

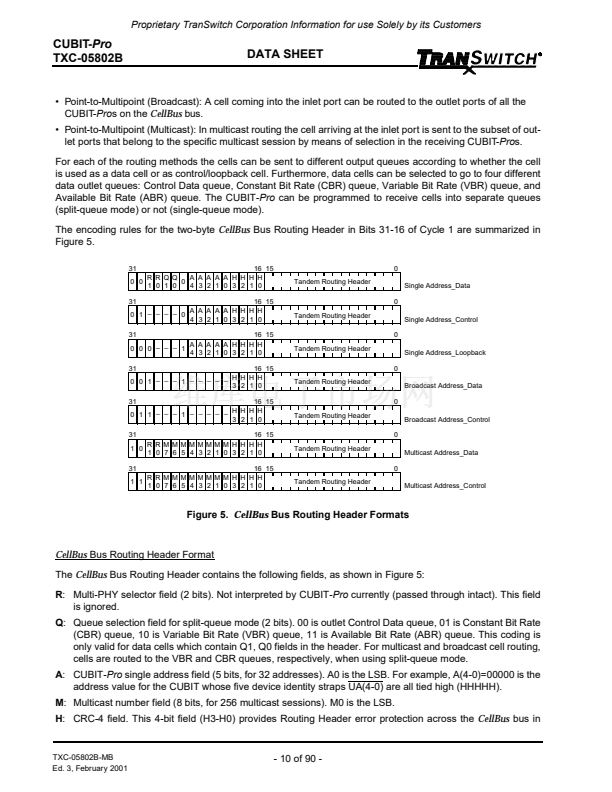

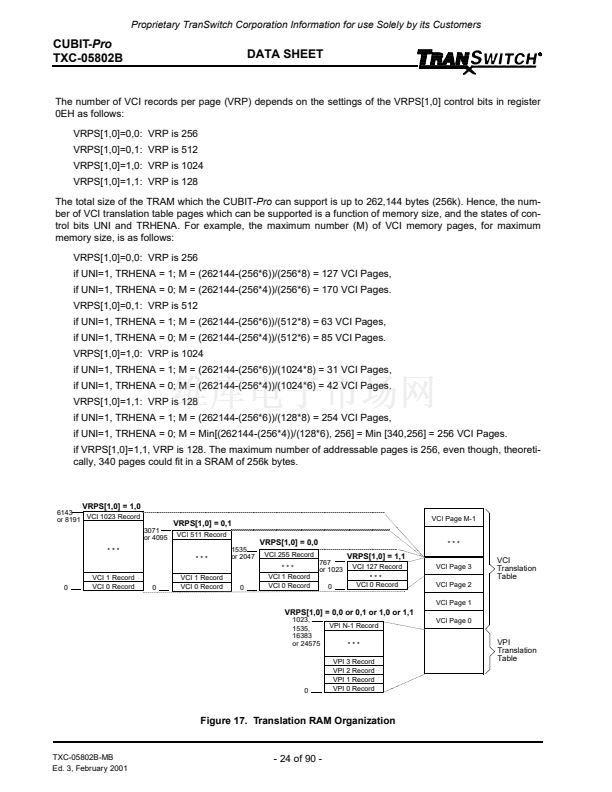

鈥?Inlet-side address translation and routing header
insertion, using external SRAM of up to 256 kB

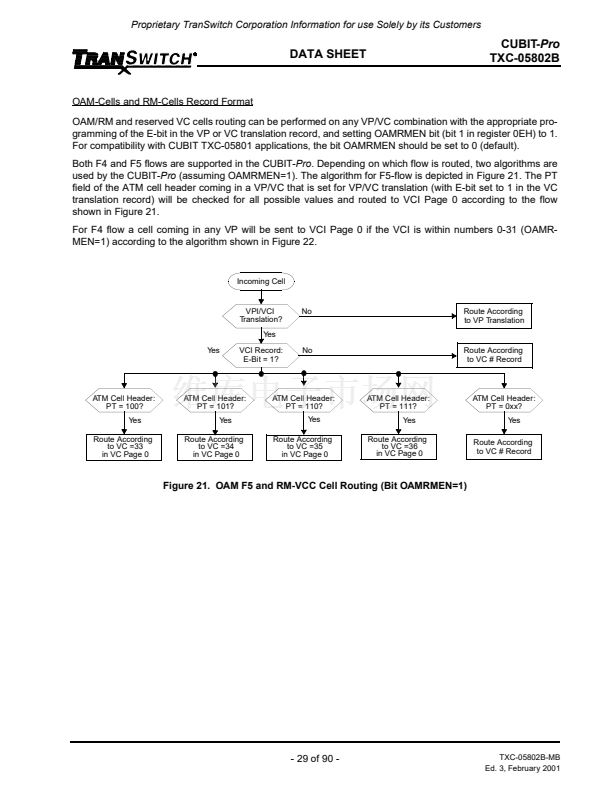

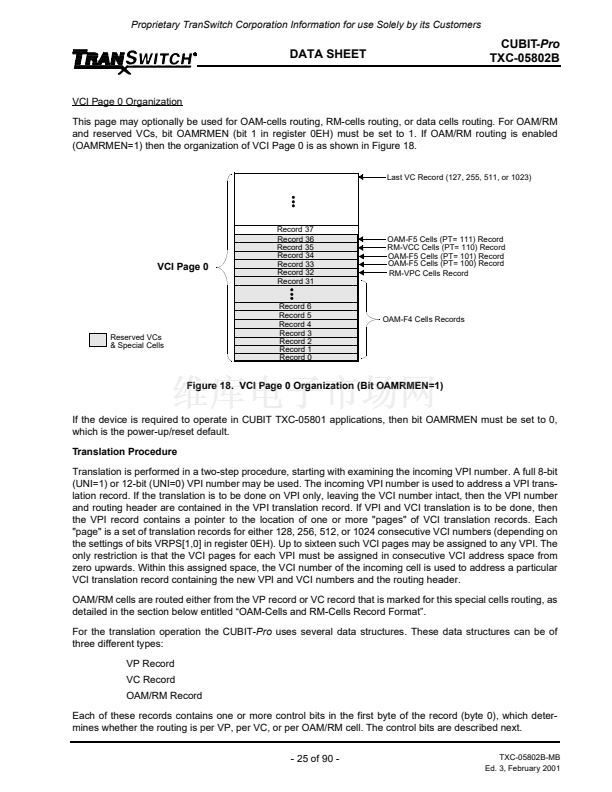

鈥?Programmable OAM-cell and RM-cell routing
鈥?/div>
CellBus
bus access request, grant reception and
bus transmission
鈥?/div>

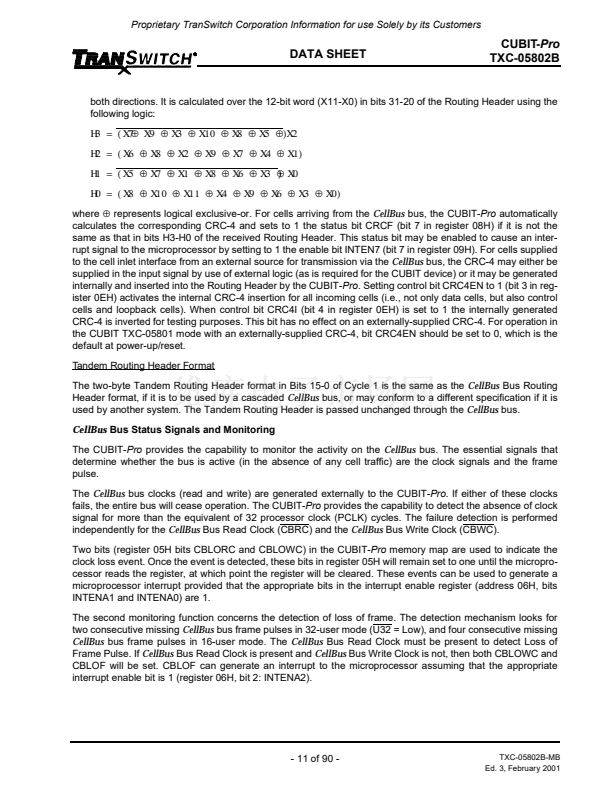

CellBus
bus cell reception and address recognition
鈥?Outlet cell queuing: various modes

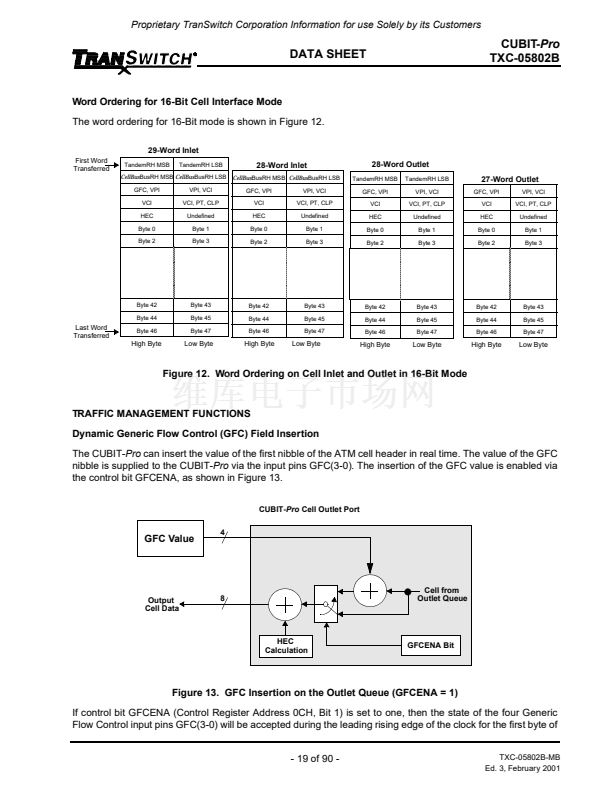

鈥?Ability to insert GFC field in real time

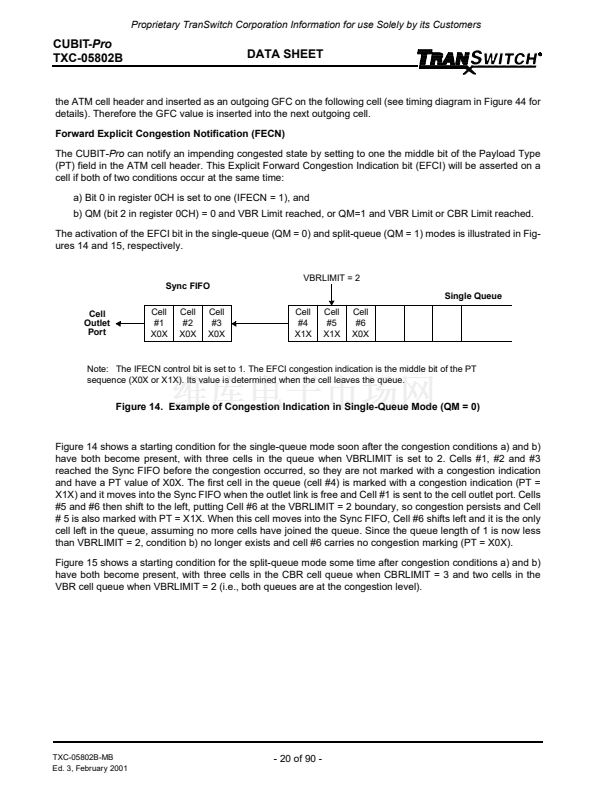

鈥?Ability to insert FECN indication, under program-
mable conditions

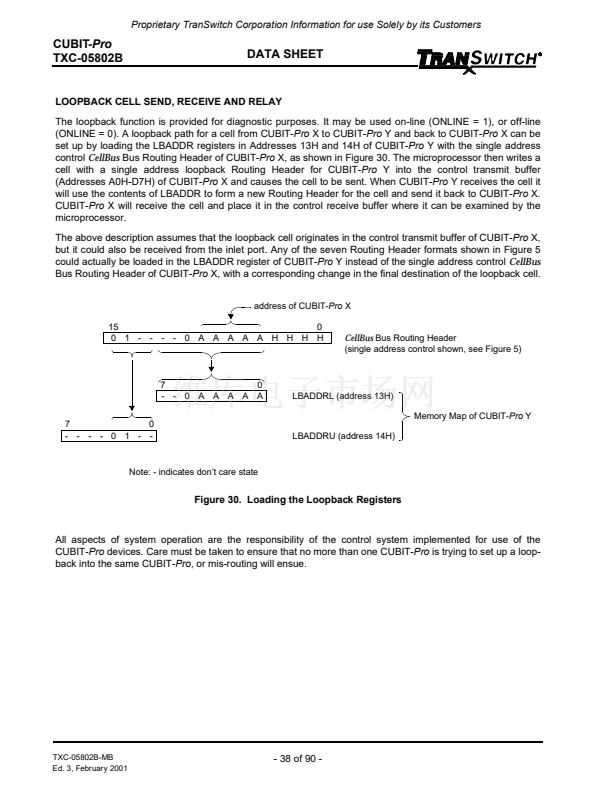

鈥?Ability to send and receive cells for control purpos-
es over same
CellBus
bus
鈥?Cell insertion and extraction via microprocessor
port
鈥?Master bus arbiter and frame pulse generator in-
cluded in each CUBIT-Pro, with enabling pin

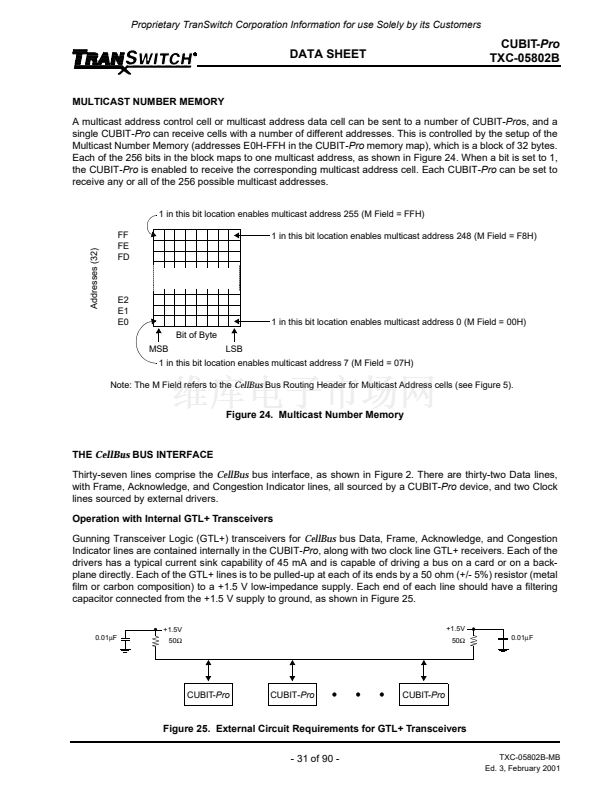

鈥?Improved internal GTL+ transceivers for
CellBus
bus connection

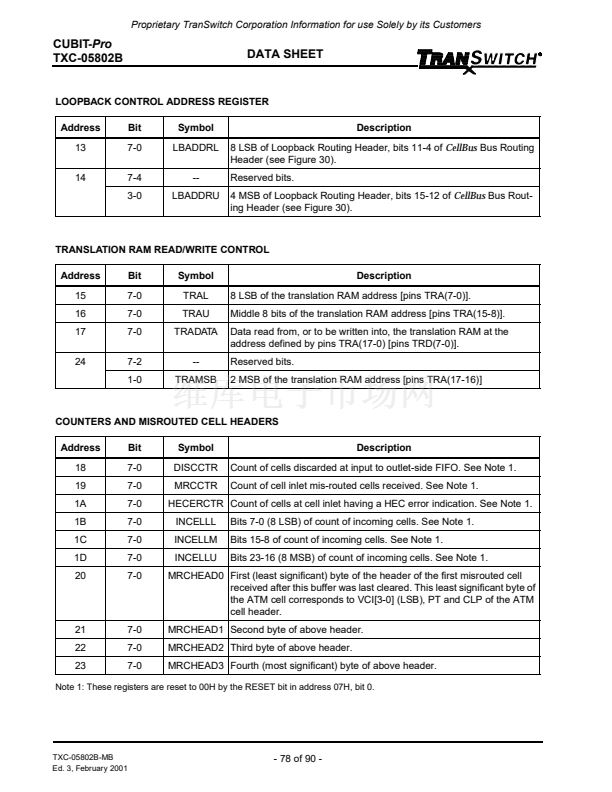

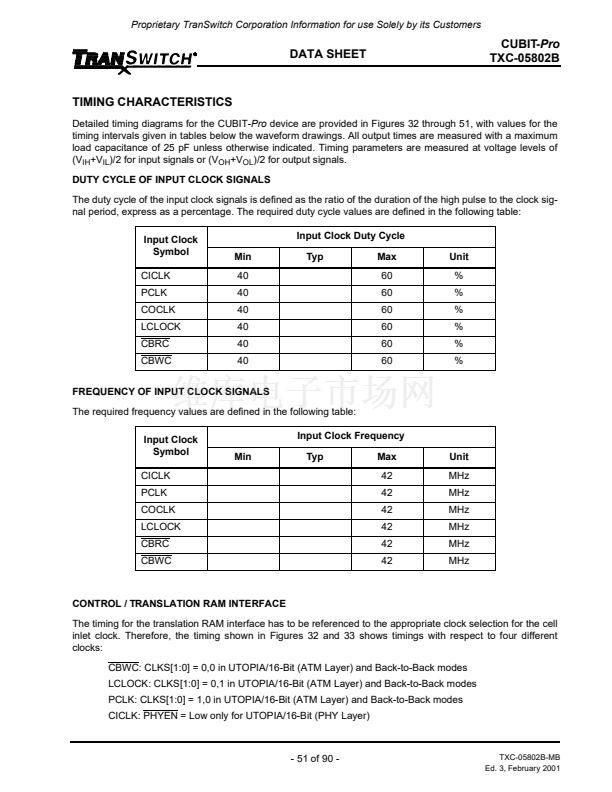

鈥?Interface port to translation table in SRAM

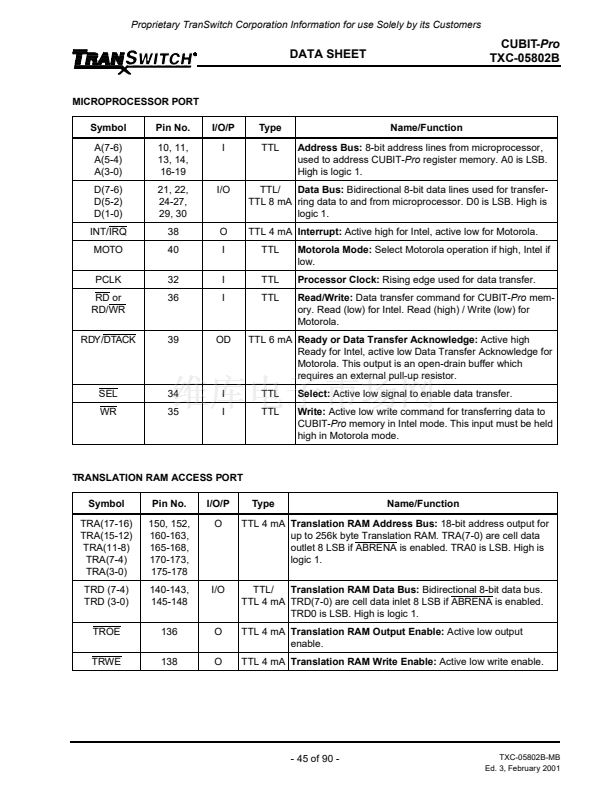

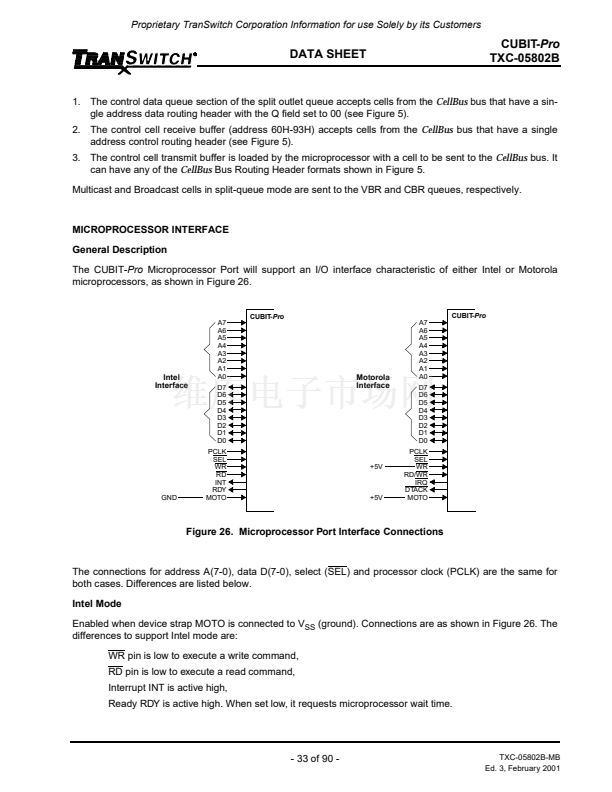

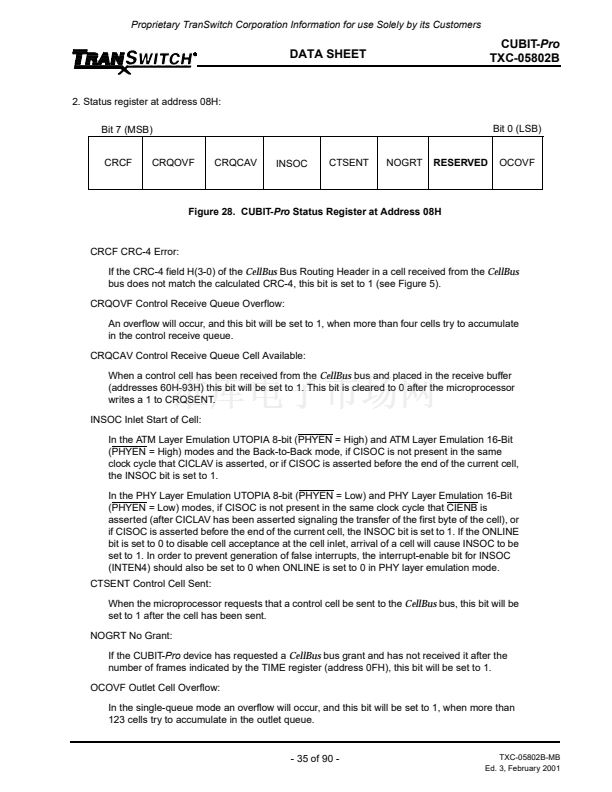

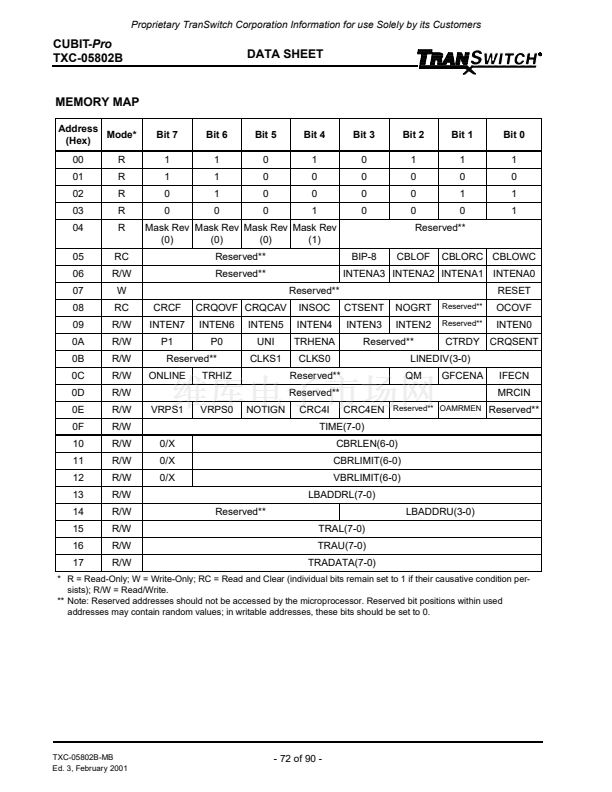

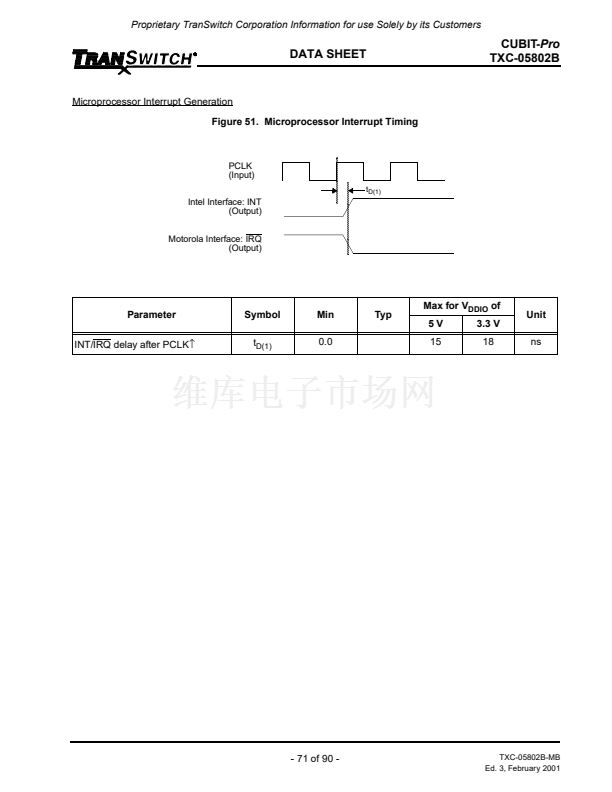

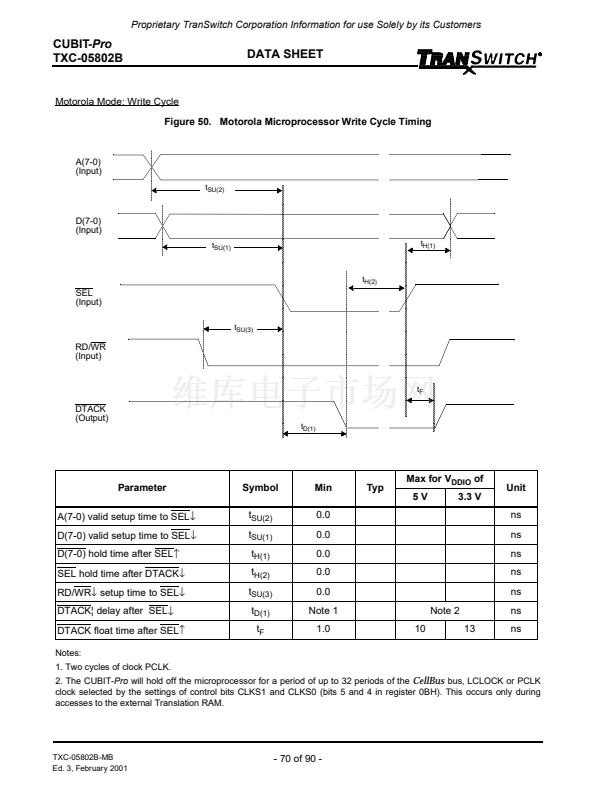

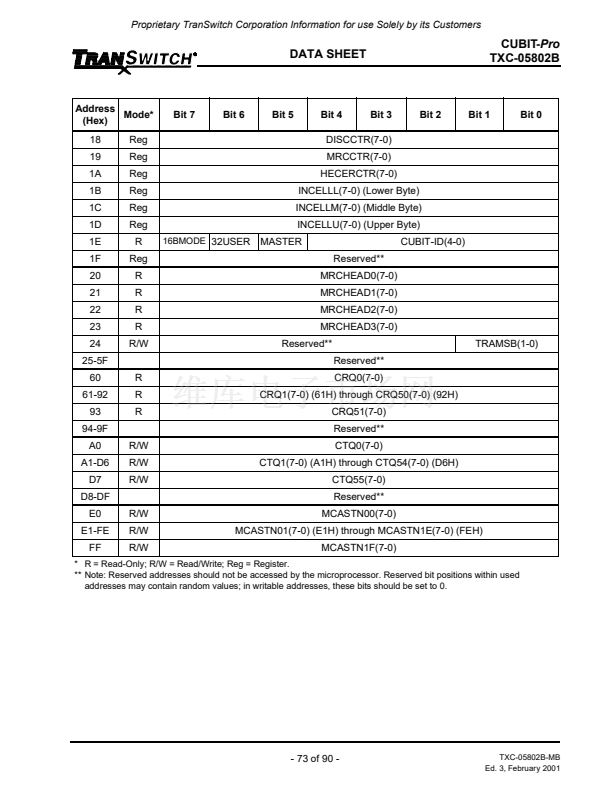

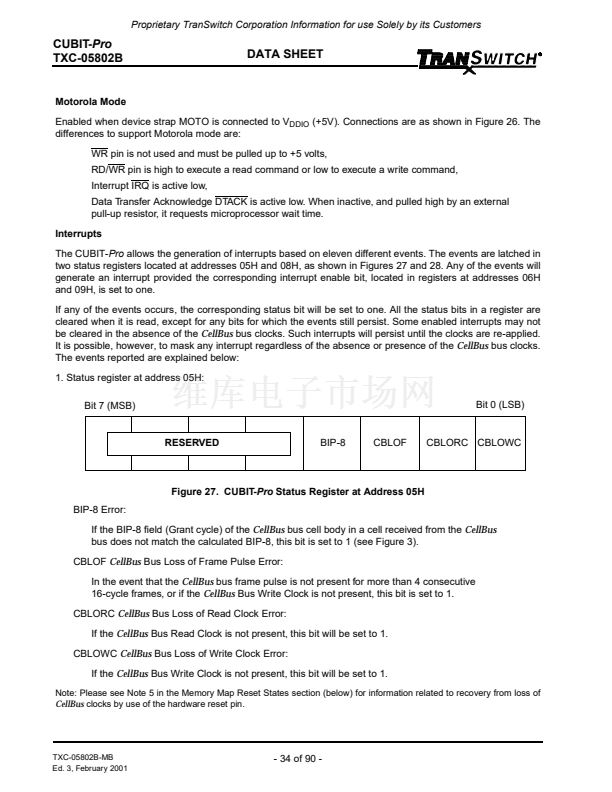

鈥?Microprocessor control port, selectable for Intel or
Motorola interface

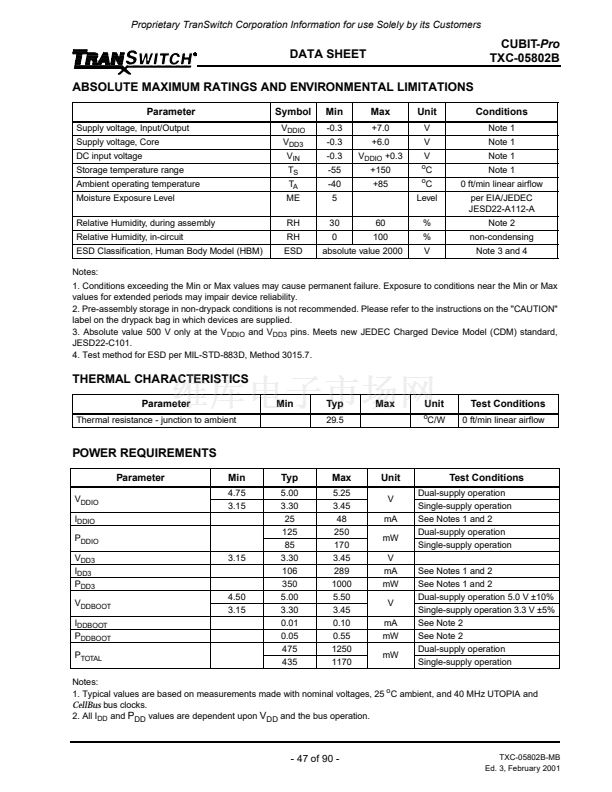

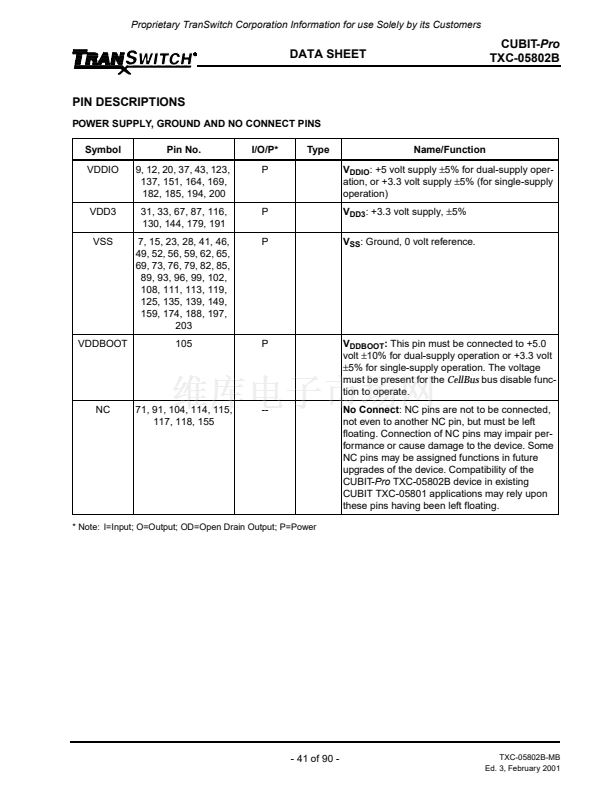

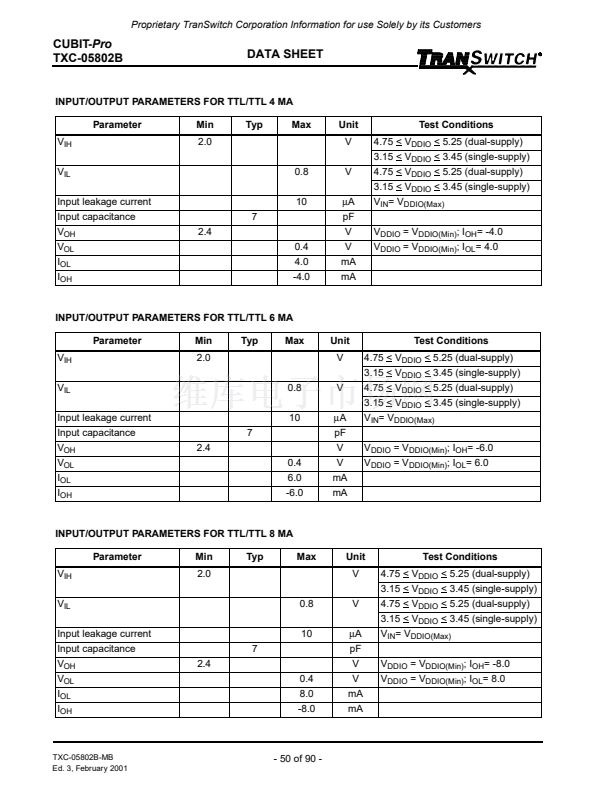

鈥?+5 V and +3.3 V power supplies (dual-supply op-
eration) or single-supply +3.3 V operation

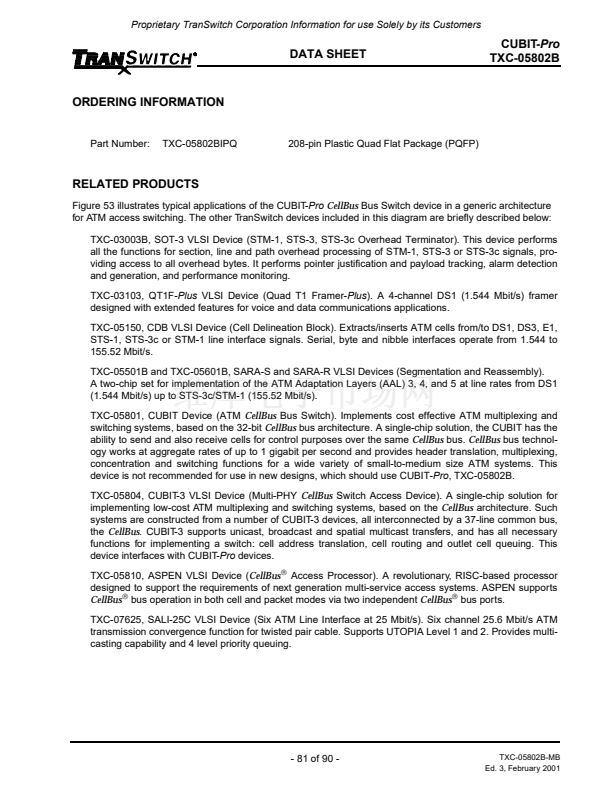

鈥?208-pin plastic quad flat package (28 x 28 mm)
DESCRIPTION
CUBIT-Pro
TM
is a single-chip solution for implementing

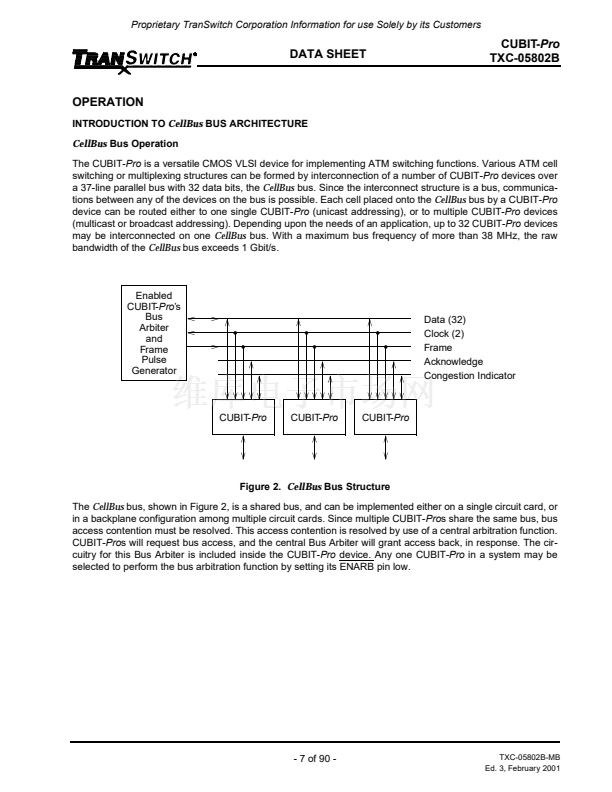

cost effective ATM access systems. It is based on the
CellBus
廬

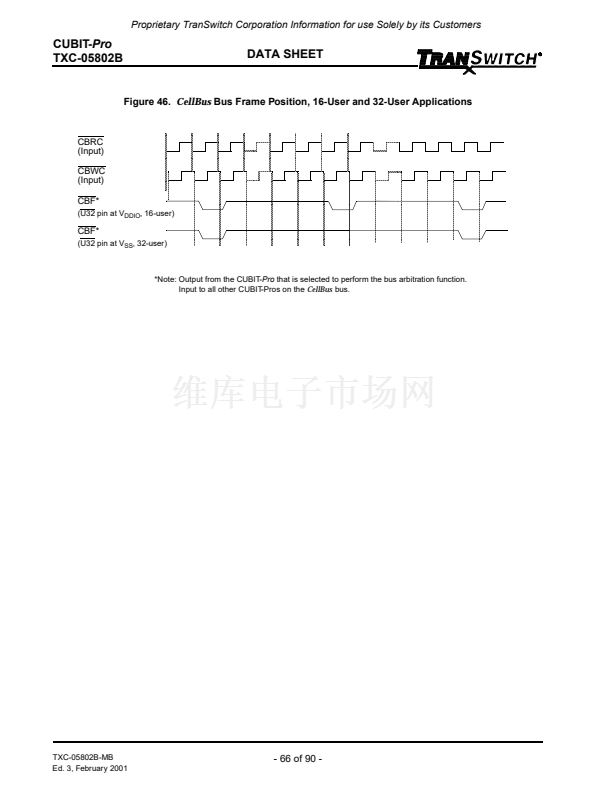

Bus Architecture (CellBus). Such systems are

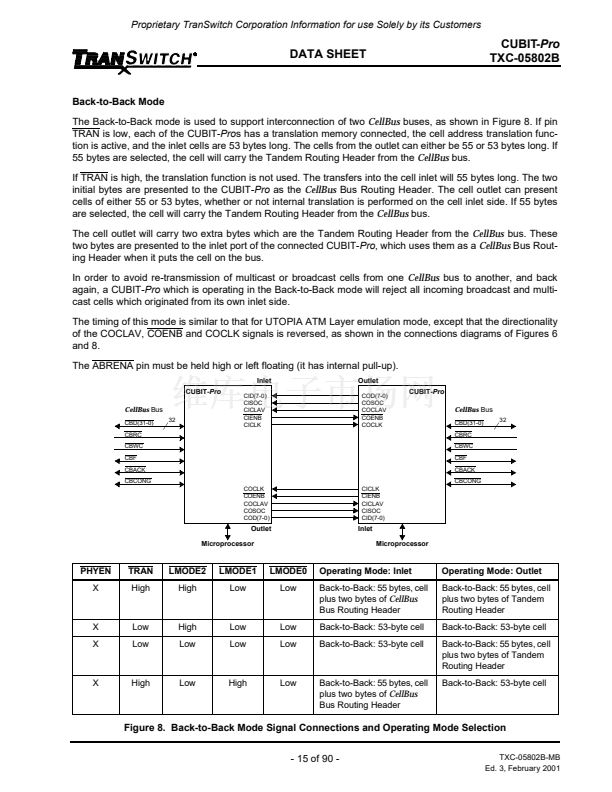

constructed from a number of CUBIT-Pro devices, all
interconnected by a 37-line common bus, the
CellBus
bus. When operating at a 38 MHz clock rate, a
CellBus
bus system can handle 1 Gbit/s of net ATM cell band-
width. CUBIT-Pro supports unicast and multicast trans-
fers, and has all necessary functions for implementing a
switch: cell address translation, cell routing, and outlet
cell queuing.
The TXC-05802B has GTL+ drivers with improved slew
rate control. This ensures
CellBus
compatibility with new
generations of
CellBus
devices. The TXC-05802B is a
functional replacement for the TXC-05802 and is tar-
geted for GTL+ applications. It can operate with dual 5 V
and 3.3 V supplies, or a single 3.3 V supply.
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
xDSL Access Multiplexer
Remote Access Equipment
Cable Modem Access Multiplexer
ATM LAN hub
ATM multiplexer/concentrator
Small-stand-alone ATM switch
Add-Drop Ring Switch
Edge switching equipment

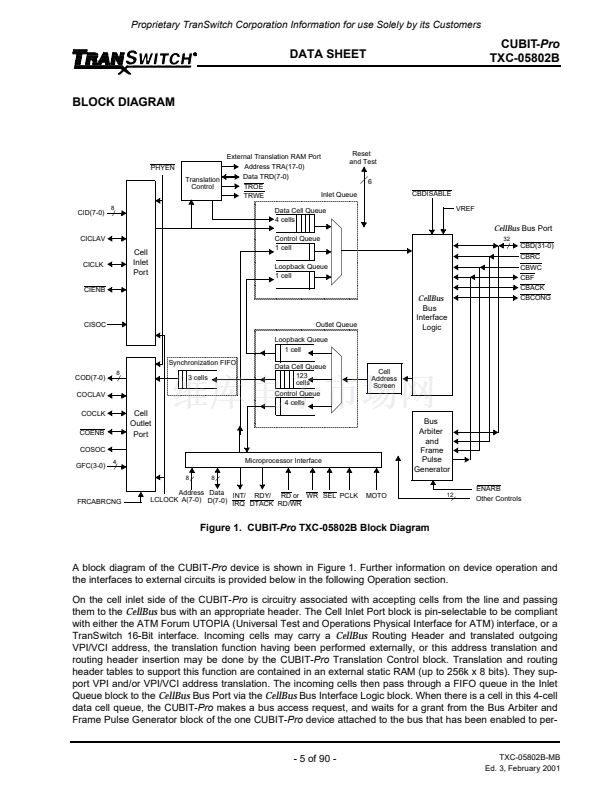

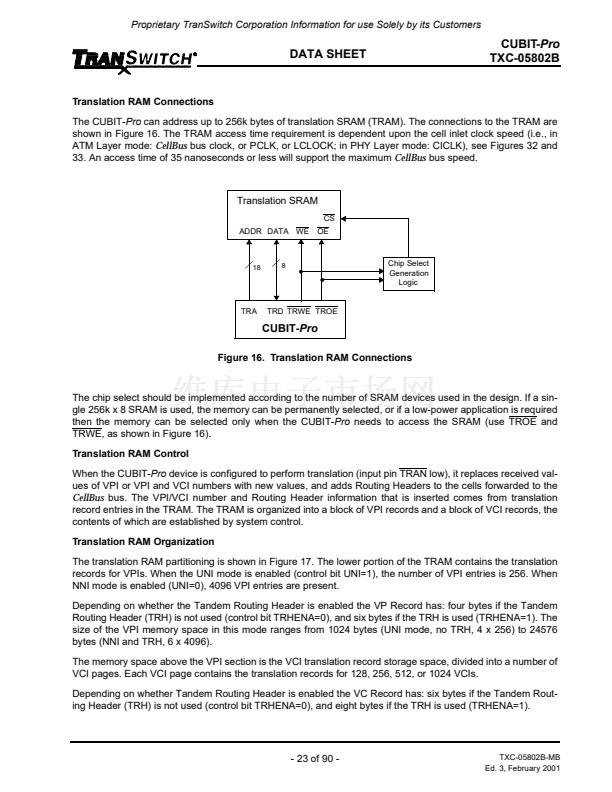

Translation RAM
Address

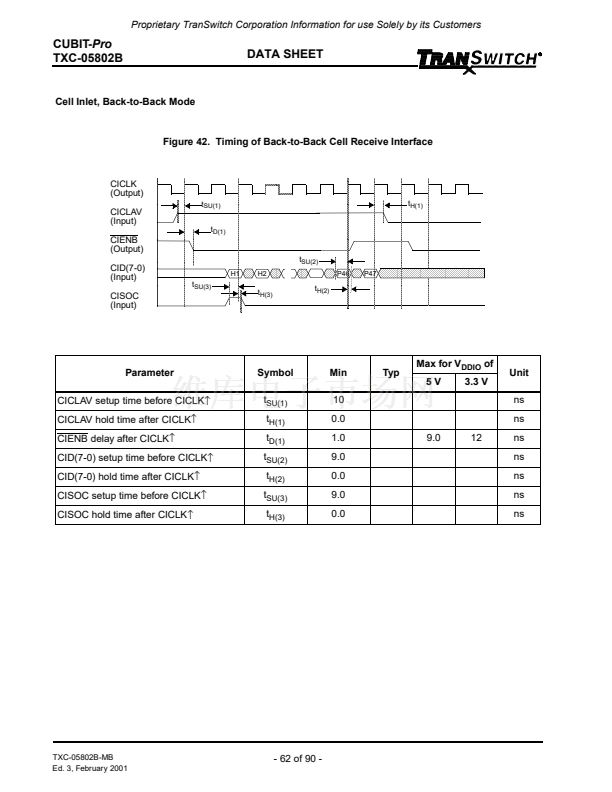

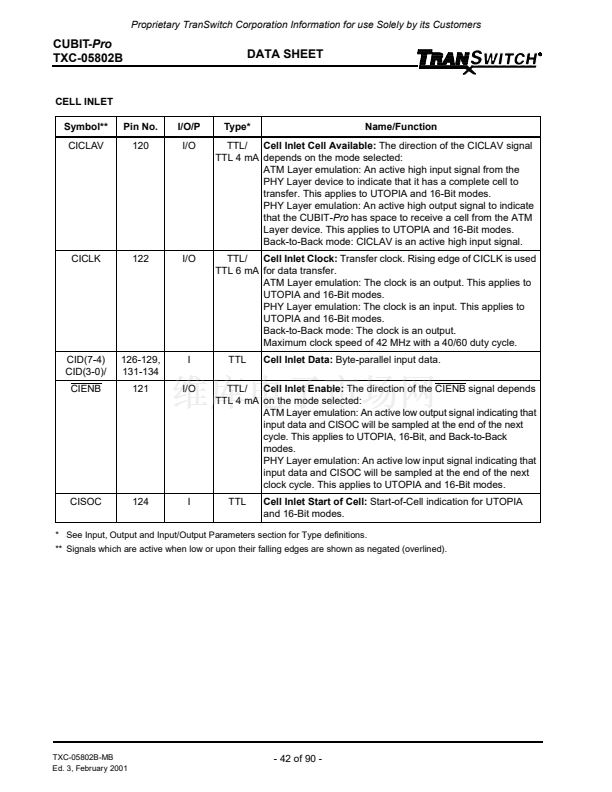

Cell Inlet
Data
Other
Data
Other
8
4
8
8
22
18
8
Data
2
Control
CUBIT-Pro
37

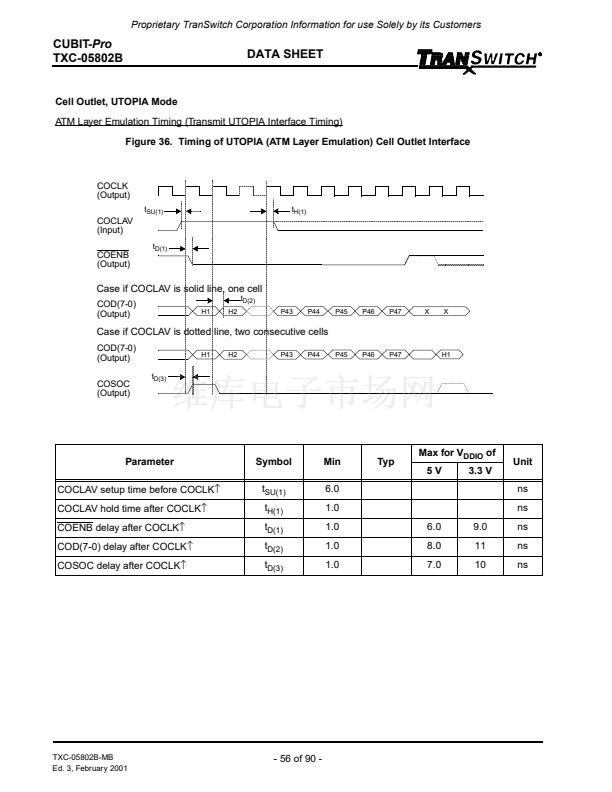

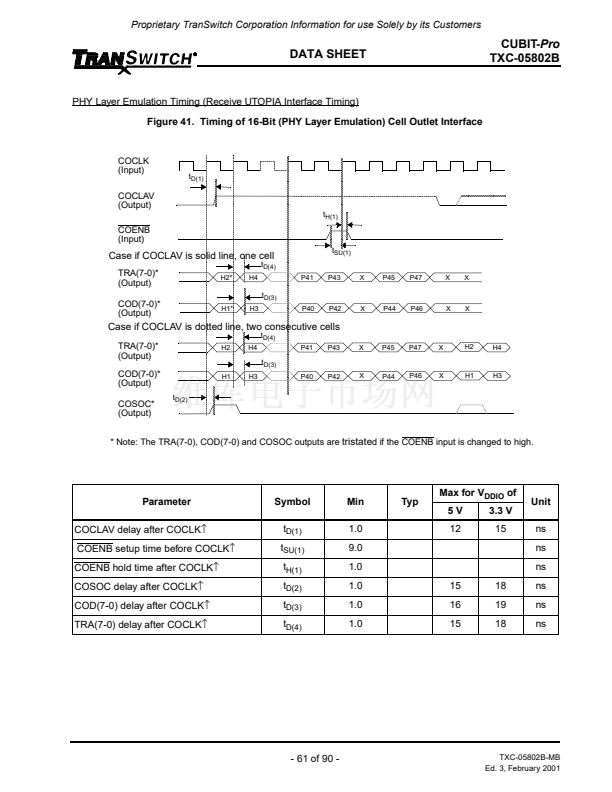

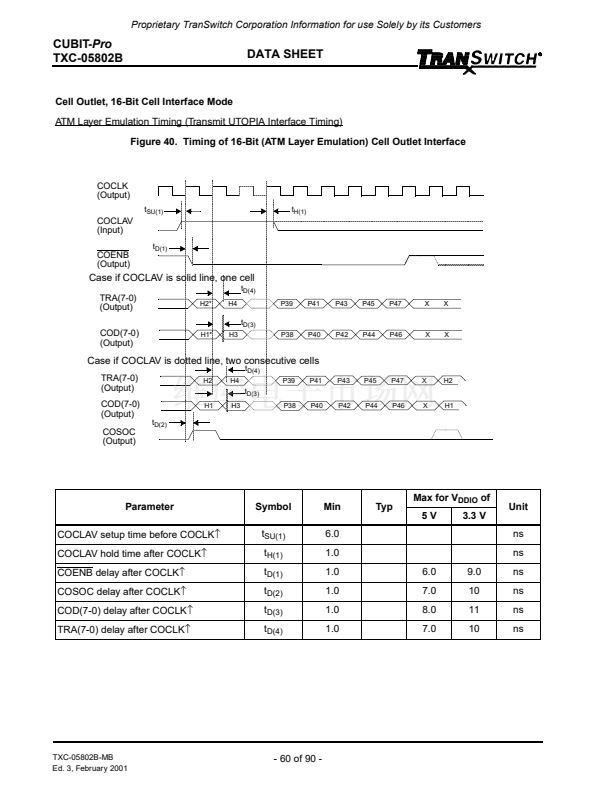

Cell Outlet
CellBus
Bus Switch
TXC-05802B
8
8
Data
7
2
CellBus
Bus Port (32-bit data)
Other
CellBus
bus-related signals
Clock, controls, test, etc.
Address
Controls and clock input
U.S. Patents No. 5,568,060; 5,901,146
Microprocessor Port
U.S. and/or foreign patents issued or pending
Copyright
餂?/div>
2001 TranSwitch Corporation
CUBIT-Pro is a trademark of TranSwitch Corporation
TranSwitch, TXC, CellBus, CUBIT and SALI-25C are registered trademarks of Tran-
Switch Corporation
Document Number:
TXC-05802B-MB

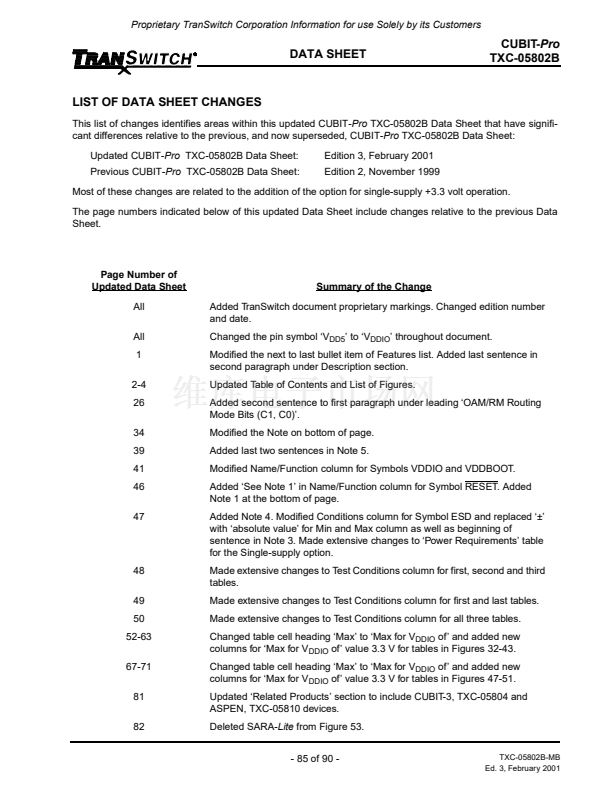

Ed. 3, February 2001
TranSwitch Corporation
鈥?/div>
3 Enterprise Drive
鈥?/div>
Shelton, Connecticut 06484
Tel: 203-929-8810
鈥?/div>
Fax: 203-926-9453
鈥?/div>
www.transwitch.com
鈥?/div>
USA
Proprietary TranSwitch Corporation Information for use Solely by its Customers
