TXC-04216AIBG Datasheet

  • TXC-04216AIBG

  • Telecommunication IC

  • 144頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

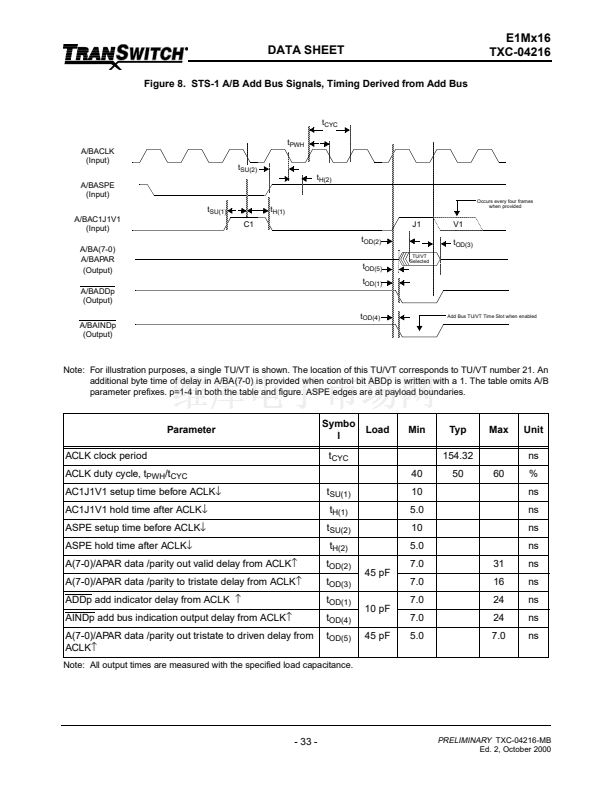

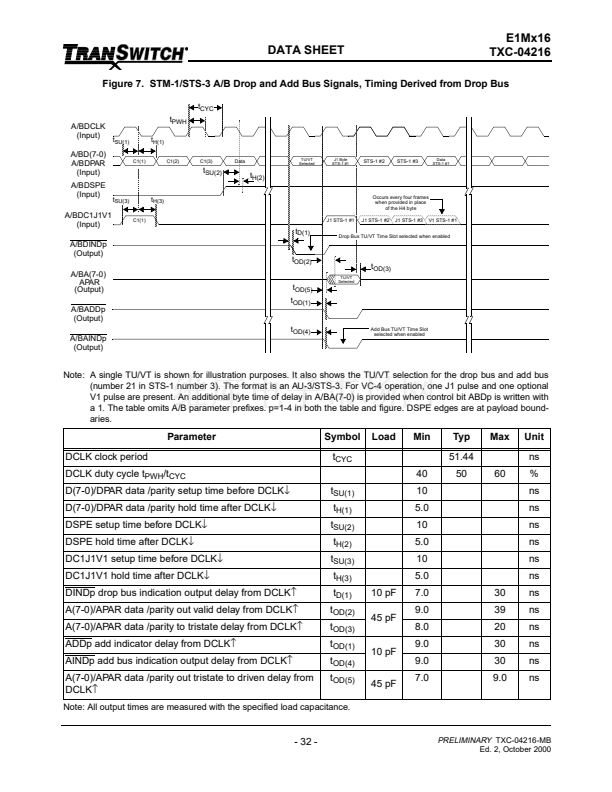

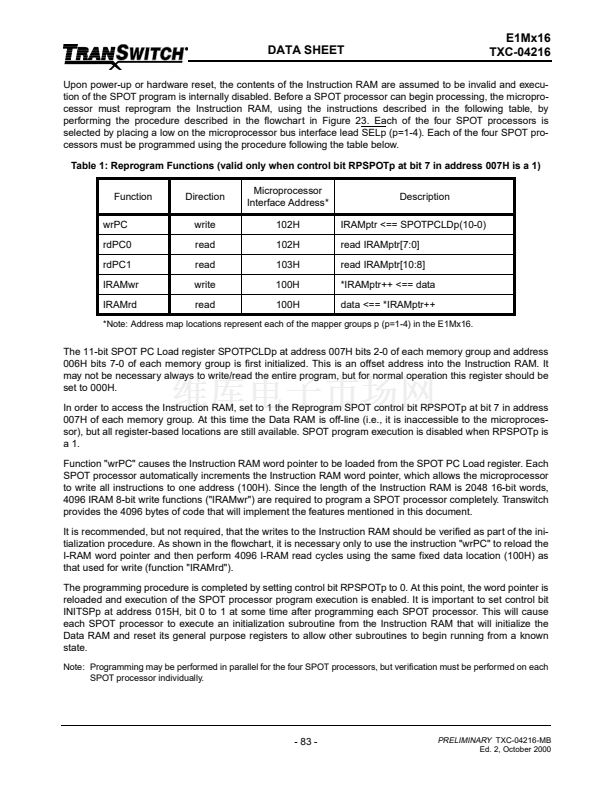

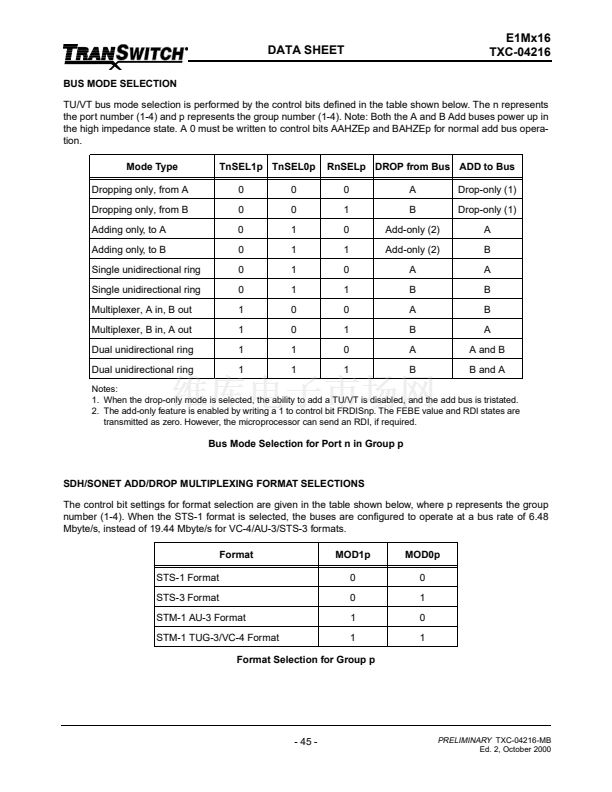

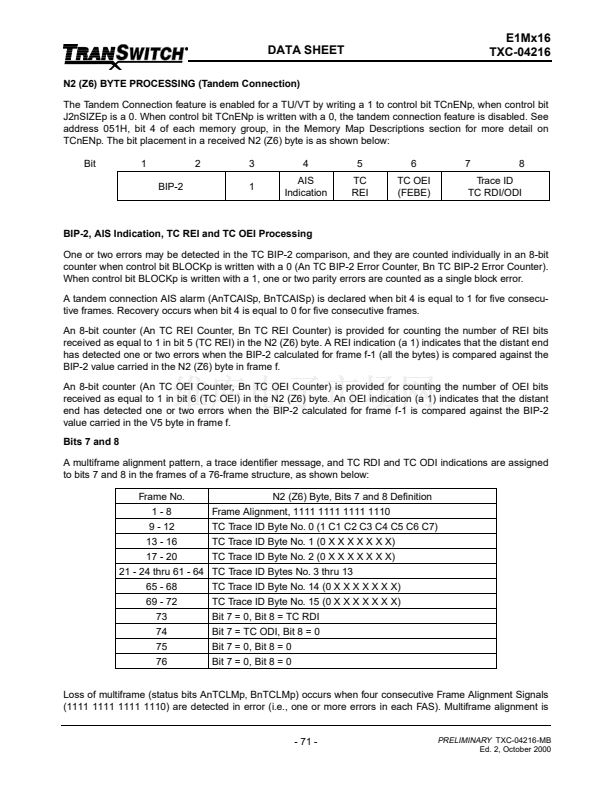

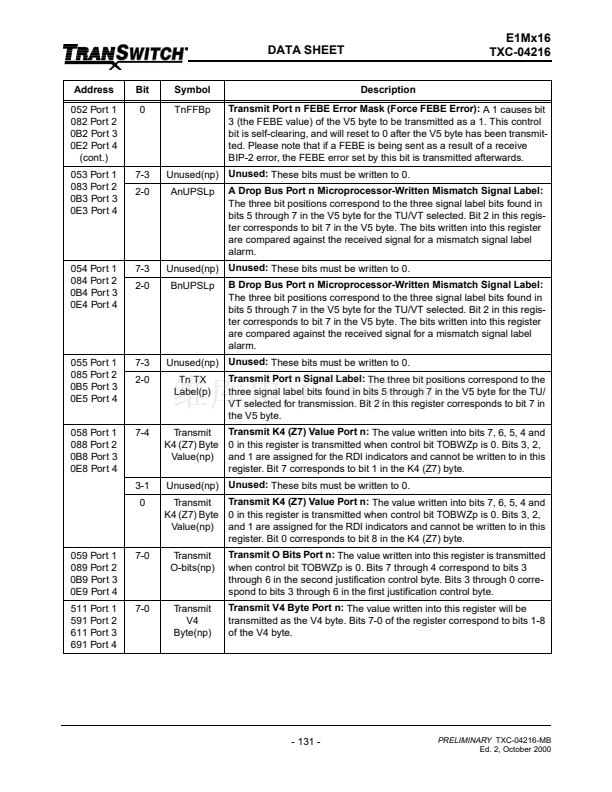

E1Mx16 Device
E1 Mapper 16-Channel
TXC-04216
DATA SHEET

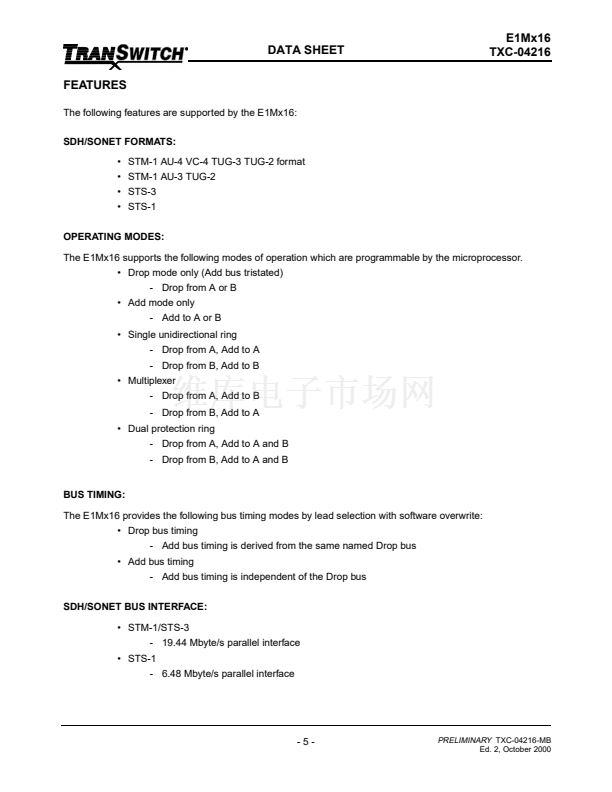

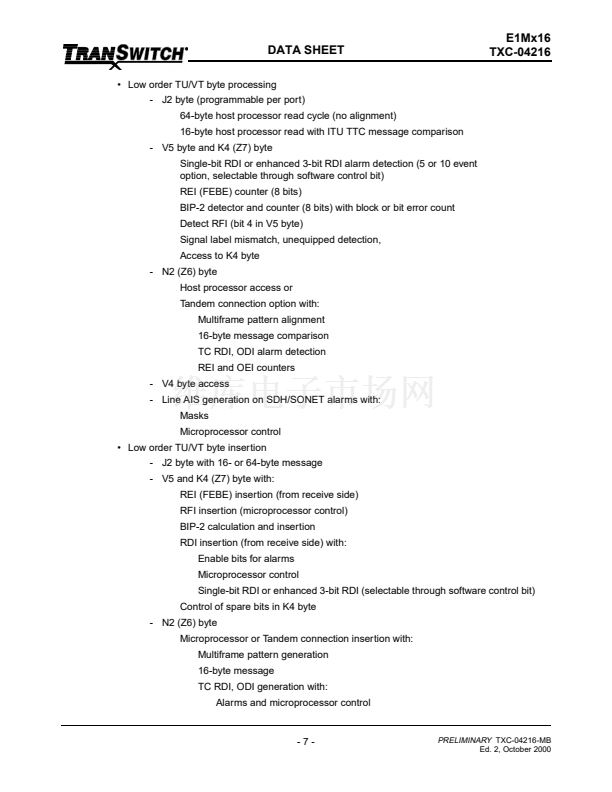

FEATURES
鈥?Add/drop sixteen 2.048 Mbit/s signals from an
STM-1 VC-4/AU-3, STS-3, or an STS-1
鈥?Independent add and drop bus timing modes
鈥?Selectable HDB3 positive/negative rail or NRZ E1
interface. Performance counter provided for illegal
coding violations.
鈥?Digital desynchronizers
鈥?J2 16-byte ETSI trail trace comparison
鈥?Drop buses are monitored for parity, loss of clock,
upstream AIS and H4 multiframe errors
鈥?TU Tandem Connection ETSI message
processing and generation
鈥?Performance counters are provided for TU/VT
pointer movements, BIP-2 errors and Far End
Block Errors (REIs)
鈥?TU/VTs are monitored for Loss Of Pointer, New
Data Flags (NDFs), AIS, Remote Defect
Indication (RDI), and size errors (S-bits)
鈥?V5 Byte Signal Label Mismatch and Unequipped
detection
鈥?E1 facility and line loopbacks, generation of BIP-2
and REI errors, and send RDI capability
鈥?Intel / Motorola compatible microprocessor bus
interface with interrupt capability
鈥?Programmable internal RISC processor
implements VT-POH and VT-alarm handling
鈥?Boundary scan capability (IEEE 1149.1)
鈥?Single +5V,
鹵5%
power supply
鈥?388-lead plastic ball grid array
(35 x 35 mm) package

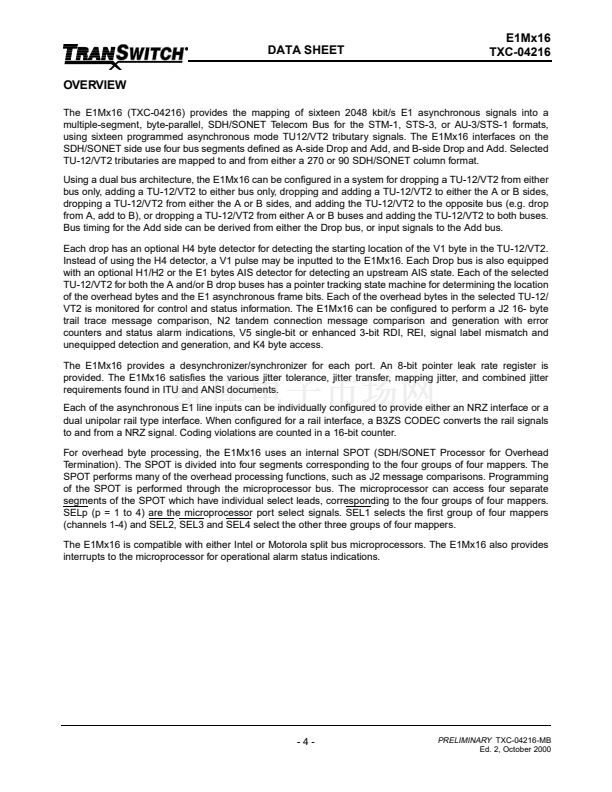

DESCRIPTION
The E1 Mapper 16-Channel device is designed for add/drop
multiplexer, terminal multiplexer, and dual and single unidi-
rectional ring applications. Four field-proven QE1M Quad E1
Mapper chips are interconnected in a single compact pack-
age to permit higher application board densities.
Sixteen E1 2.048 Mbit/s signals are mapped to and from
asynchronous Tributary Unit-12s (TU-12s) or Virtual Tribu-
tary 2s (VT2s). The E1Mx16 interfaces to a multiple-seg-
ment, byte-parallel SDH/SONET-formatted Telecom Bus at
the 19.44 Mbit/s byte rate for STM-1/STS-3 operation or at
the 6.48 Mbit/s byte rate for STS-1 operation. This Bus per-
mits the E1Mx16 to connect directly to other TranSwitch
devices in application designs. The E1 signals can be either
HDB3 positive/negative rail or NRZ format. The E1Mx16
provides performance counters, alarm detection, and the
ability to generate errors and Alarm Indication Signals (AIS).
E1 facility and line loopback capabilities are also provided.
APPLICATIONS
鈥?STM-1/STS-3/STS-1 to 2.048 Mbit/s add/drop
mux/demux
鈥?Unidirectional or bidirectional ring applications
鈥?STM-1/STS-3/STS-1 termination terminal mode
multiplexer
鈥?STM-1/STS-3/STS-1 test equipment
PRELIMINARY
information documents contain information on products in the sampling, pre-production
or early production phases of the product life cycle. Characteristic data and other specifications are
subject to change. Contact TranSwitch Applications Engineering for current information on this product.
STM-1/STS-3/STS-1
TELECOM BUS SIDE
External Clock
+5V
13
14
13
14
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2.048 Mbit/s
TRIBUTARY SIDE
7
A - side
drop bus
A - side
add bus
B - side
drop bus
B - side
add bus
Channel 1
P & N data
and clock for
receive and
transmit, plus
receive data
zero-output
control
E1Mx16
E1 Mapper 16-Channel
TXC-04216
5
Boundary
Scan
3
Microprocessor Controls
interface
7
Channel 16
U.S. Patents No. 4,967,405; 5,033,064;
5,040,170; 5,265,096; 5,289,507; 5,297,180; 5,528,598; 5,535,218
U.S. and/or foreign patents issued or pending
Copyright
餂?/div>
2000 TranSwitch Corporation
E1Mx16 is a trademark of TranSwitch Corporation
TranSwitch and TXC are registered trademarks of TranSwitch Corporation
Document Number:
PRELIMINARY
TXC-04216-MB
Ed. 2, October 2000
TranSwitch Corporation
鈥?/div>
3 Enterprise Drive
鈥?/div>
Shelton, Connecticut 06484
Tel: 203-929-8810
鈥?/div>
Fax: 203-926-9453
鈥?/div>
www.transwitch.com
鈥?/div>
USA
