TUA4401 Datasheet

  • TUA4401

  • FM Receiver Circuit

  • 780.65KB

  • 32頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Carradio IC
FM Car Radio IC with PLL
TUA 4401
Specification
B6CA
1
Features
鈥?/div>
Double balanced RF mixer with low noise
figure, high IP3 and wide dynamic range
鈥?/div>
Strictly symmetrical RF circuitry
鈥?/div>
IF amplifier with adjustable gain
鈥?/div>
7 stage limiter amplifier with dB linear field-
strength output
鈥?/div>
Low distortion coincidence demodulator
鈥?/div>
Multipath detector with analog output
鈥?/div>
CMOS PLL-Synthesizer
鈥?/div>
Resolution between 100 kHz and 6.25kHz
鈥?/div>
Search tuning stop with IF counter and
Fieldstrength/Multipath evaluation
鈥?/div>
ADC鈥檚 for fieldstr. and Multipath detector
鈥?/div>
SOCCAR Bus
I
2
C Bus and 3 Wire Bus operation possible
MQFP 64
Package
2
Type
Ordering Information
Ordering Code
Package
MQFP-64
TUA 4401
3
General Description
The TUA 4401 is the first Infineon Carradio IC using BICMOS technology.
The combination of an analog FM receiver circuit and a digital PLL synthesizer on the same chip reduces the
over all pin count in comparision to two separate IC鈥檚 and in addition the number of necessary external com-
ponents. This gives the flexibility both for high performance and low cost applications.
The recommended applications for this device are FM only carradios and background receivers, capable for
all world standards.
TUA 4401 features:
Frontend
- High level, high impedance mixer input with improved dynamic range
- High input / output 3rd order intercept point
- Integrated prestage AGC generation and control for PIN diodes and MOS tetrode
- Bus controlled AGC threshold
- 2 pin 1st local oscillator with improved low phase noise, internally coupled to PLL
- Strictly symmetrical RF parts
- PLL with fast acquisition mode
- Resolution 100 kHz, 50 kHz, 25 kHz, 12,5 kHz, 10 kHz and 6.25 kHz
- High running (61.5 MHz) crystal oscillator to avoid interference with bus controlled adjustment

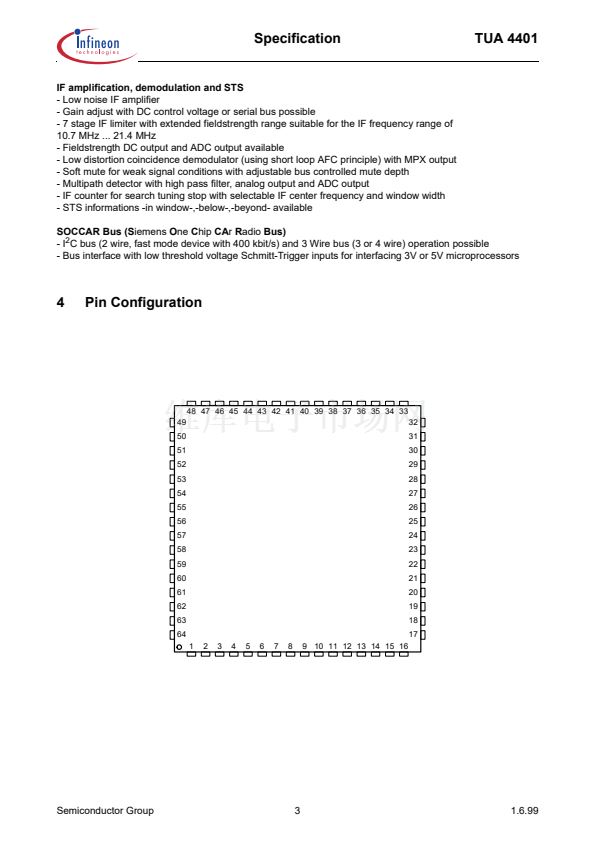

Semiconductor Group
2
1.6.99
