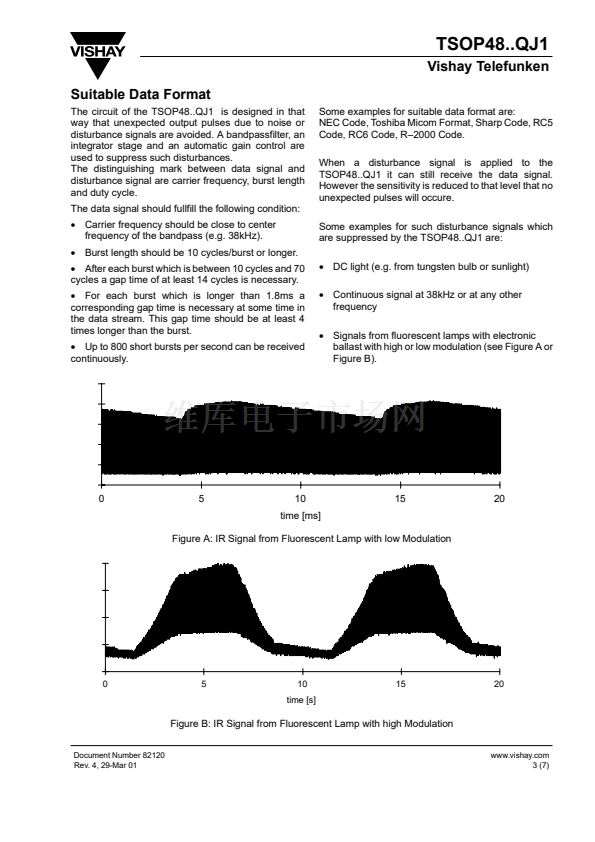

TSOP48..QJ1

Vishay Telefunken

Photo Modules for PCM Remote Control Systems

Available types for different carrier frequencies

Type

TSOP4830QJ1

TSOP4836QJ1

TSOP4838QJ1

TSOP4856QJ1

fo

30 kHz

36 kHz

38 kHz

56 kHz

Type

TSOP4833QJ1

TSOP4837QJ1

TSOP4840QJ1

fo

33 kHz

36.7 kHz

40 kHz

Description

The TSOP48..QJ1 鈥?series are miniaturized receivers

for infrared remote control systems. PIN diode and

preamplifier are assembled on lead frame, the epoxy

package is designed as IR filter.

The demodulated output signal can directly be de-

coded by a microprocessor. TSOP48..QJ1 is the

standard IR remote control receiver series, supporting

all major transmission codes.

16 078

Features

D

Photo detector and preamplifier in one package

D

Internal filter for PCM frequency

D

Improved shielding against electrical field

disturbance

D

Low power consumption

D

High immunity against ambient light

D

Continuous data transmission possible

(800 bit/s)

D

TTL and CMOS compatibility

D

Output active low

D

Suitable burst length

鈮?0

cycles/burst

Block Diagram

3

Input

Control

Circuit

30 k

W

1

PIN

AGC

Band

Pass

Demodu-

lator

2

9612226

V

S

OUT

GND

Document Number 82120

Rev. 4, 29-Mar 01

www.vishay.com

1 (7)
