TSOP34833 Datasheet

IC型號：
TSOP34833
PDF描述：
IR Receiver Modules for Remote Control Systems
文件大?。?/label>
241.00KB
PDF頁數：
7頁
芯片廠家：
VISHAY

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

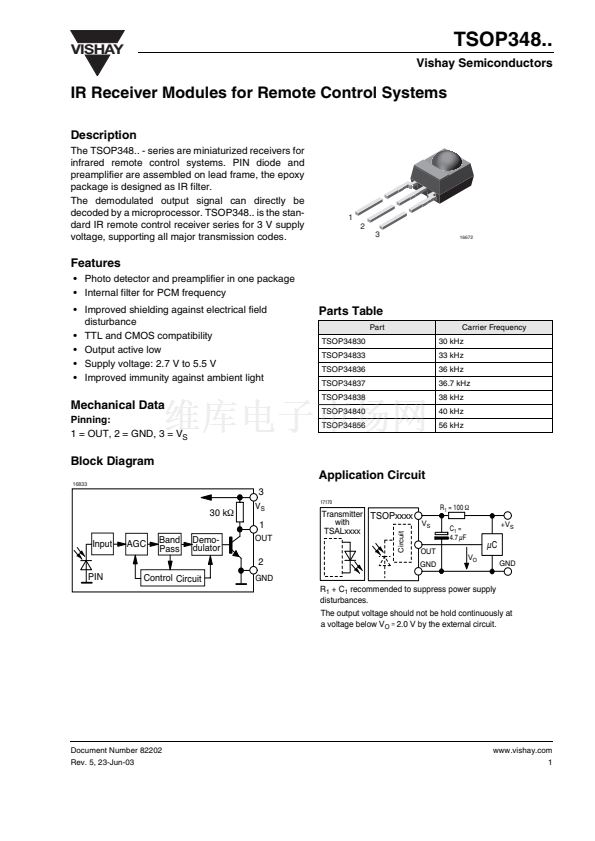

VISHAY

TSOP348..

Vishay Semiconductors

IR Receiver Modules for Remote Control Systems

Description

The TSOP348.. - series are miniaturized receivers for

infrared remote control systems. PIN diode and

preamplifier are assembled on lead frame, the epoxy

package is designed as IR filter.

The demodulated output signal can directly be

decoded by a microprocessor. TSOP348.. is the stan-

dard IR remote control receiver series for 3 V supply

voltage, supporting all major transmission codes.

16672

Features

鈥?Photo detector and preamplifier in one package

鈥?Internal filter for PCM frequency

鈥?Improved shielding against electrical field

disturbance

鈥?TTL and CMOS compatibility

鈥?Output active low

鈥?Supply voltage: 2.7 V to 5.5 V

鈥?Improved immunity against ambient light

Parts Table

Part

TSOP34830

TSOP34833

TSOP34836

TSOP34837

TSOP34838

TSOP34840

TSOP34856

Carrier Frequency

30 kHz

33 kHz

36 kHz

36.7 kHz

38 kHz

40 kHz

56 kHz

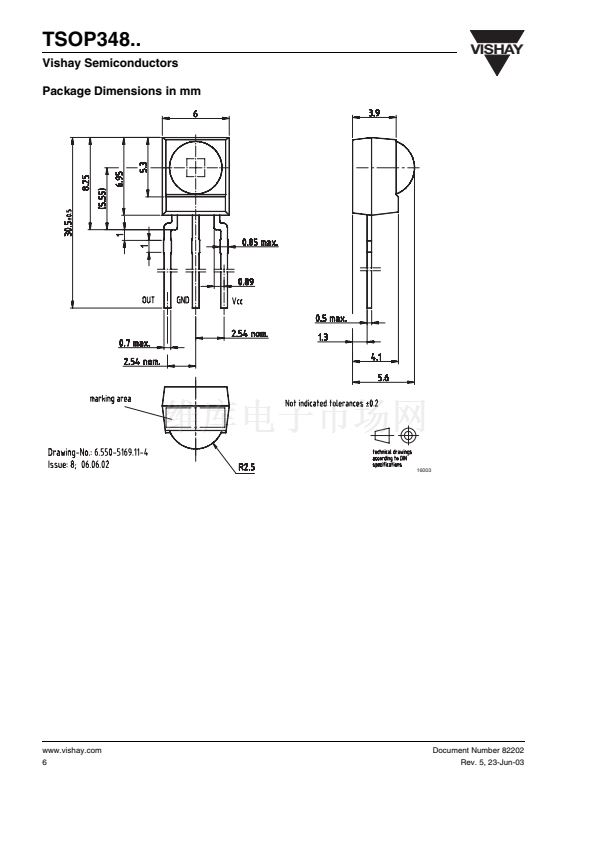

Mechanical Data

Pinning:

1 = OUT, 2 = GND, 3 = V

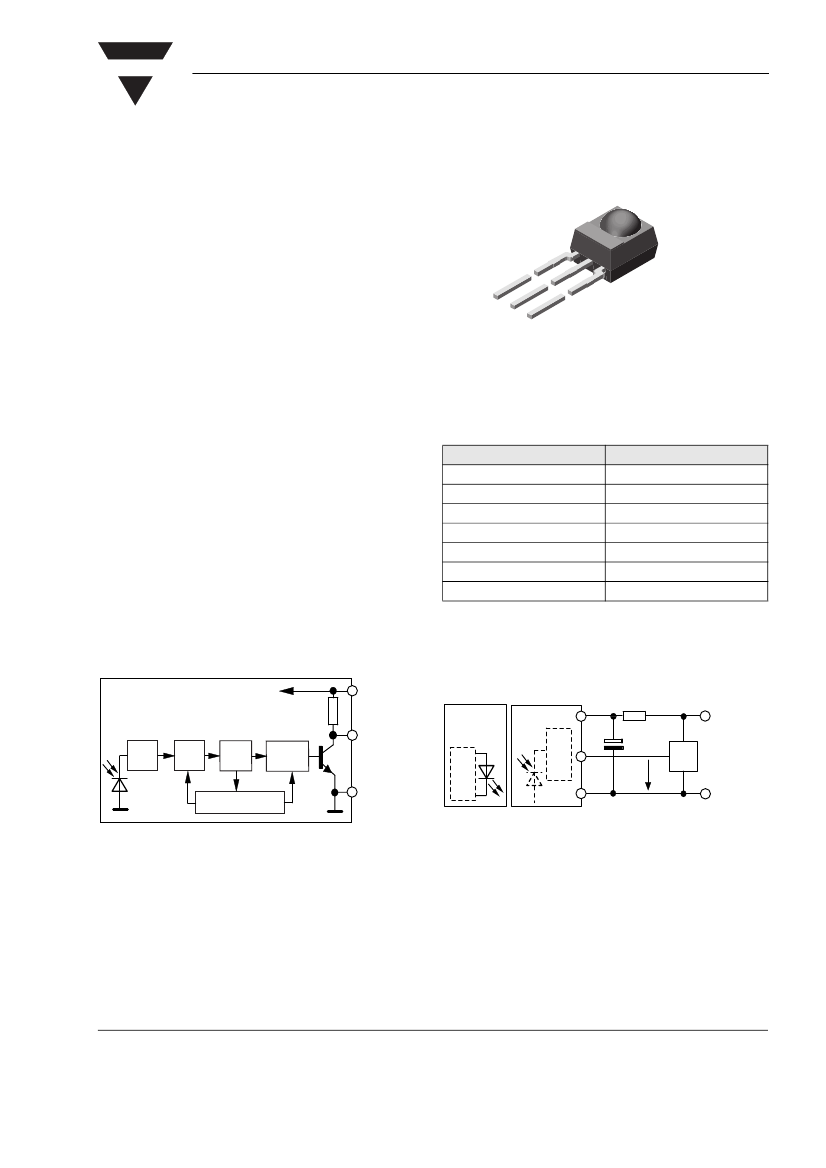

Block Diagram

Application Circuit

16833

30 k鈩?/div>

Input

AGC

Band

Pass

Demo-

dulator

17170

OUT

Circuit

Transmitter

TSOPxxxx

with

TSALxxxx

= 100

鈩?/div>

4.7 碌F

OUT

GND

碌C

GND

Control Circuit

GND

+ C

recommended to suppress power supply

disturbances.

The output voltage should not be hold continuously at

a voltage below V

O =

2.0 V by the external circuit.

Document Number 82202

Rev. 5, 23-Jun-03

www.vishay.com

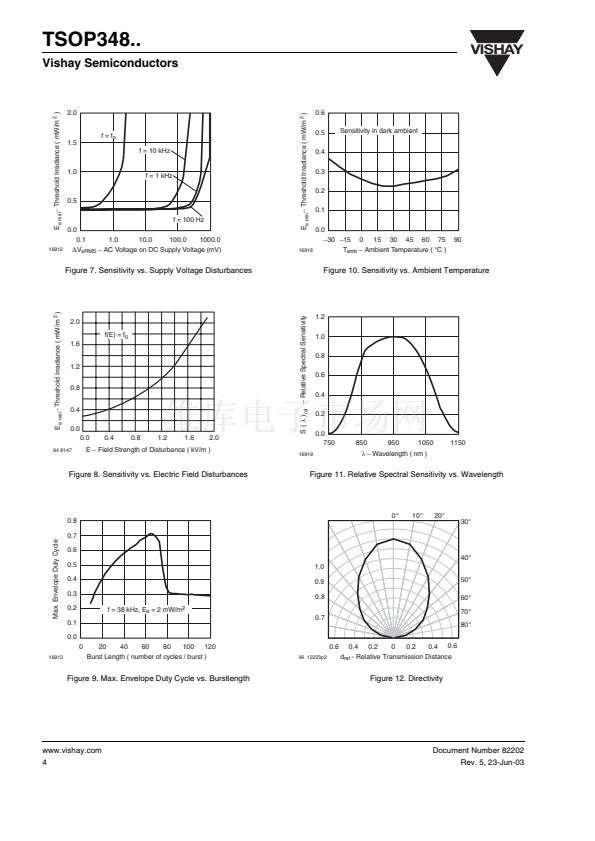

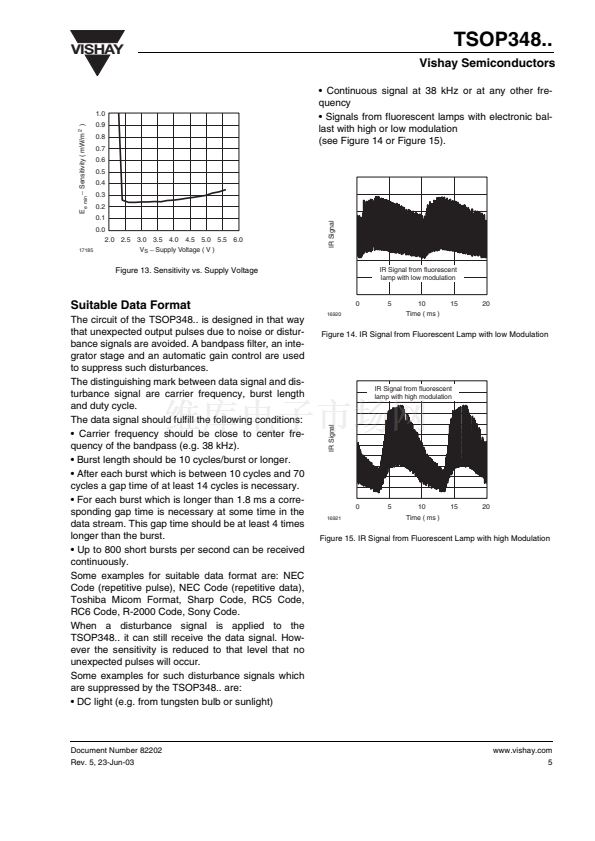

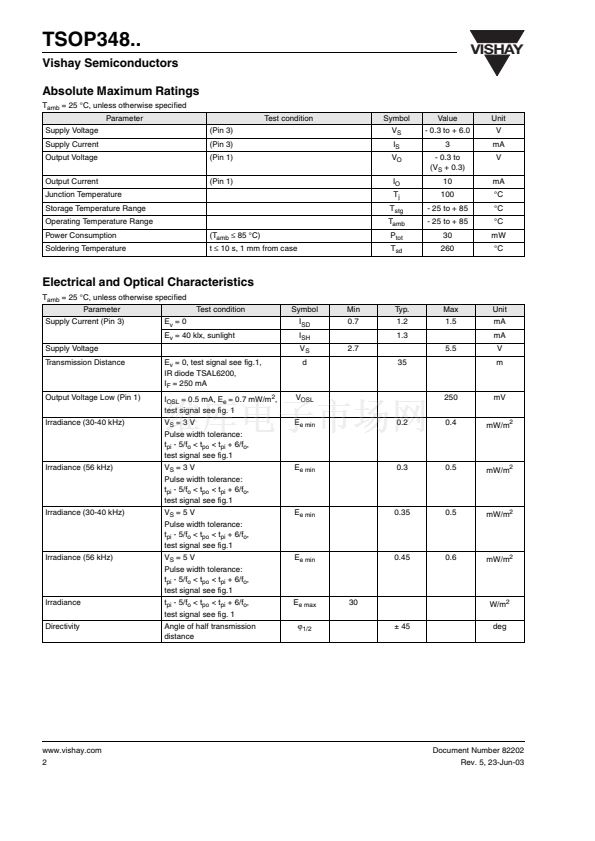

制造商
Vishay
產品種類
紅外接收機
載頻
33 KHz
傳輸距離
45 m
顯示角
45 deg
輸出電流
5 mA
工作電壓
2.5 V to 5.5 V
電源電流
0.35 mA
功率耗散
10 mW
最大工作溫度
+ 85 C
最小工作溫度
- 25 C
封裝
Tube
射束角
45 deg
安裝風格
Through Hole
工廠包裝數量
2160
