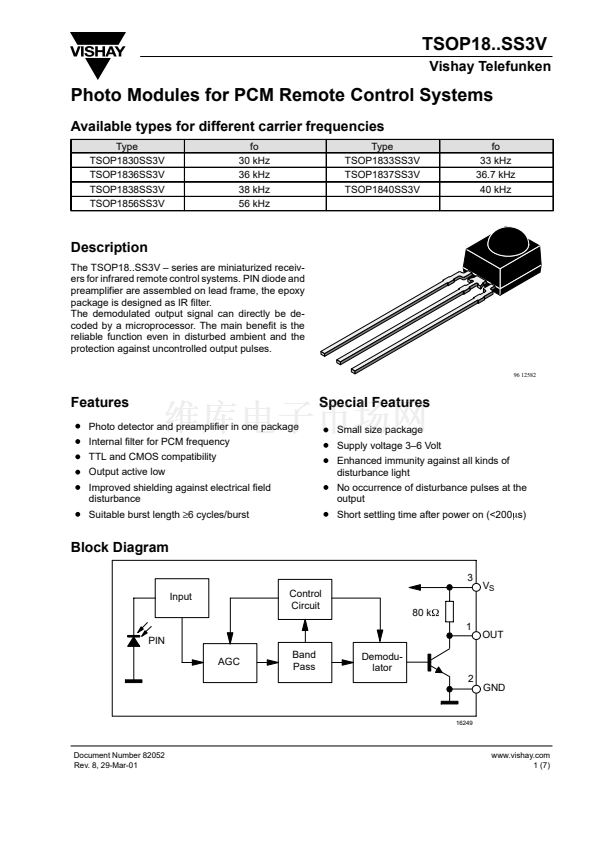

TSOP18..SS3V

Vishay Telefunken

Photo Modules for PCM Remote Control Systems

Available types for different carrier frequencies

Type

TSOP1830SS3V

TSOP1836SS3V

TSOP1838SS3V

TSOP1856SS3V

fo

30 kHz

36 kHz

38 kHz

56 kHz

Type

TSOP1833SS3V

TSOP1837SS3V

TSOP1840SS3V

fo

33 kHz

36.7 kHz

40 kHz

Description

The TSOP18..SS3V 鈥?series are miniaturized receiv-

ers for infrared remote control systems. PIN diode and

preamplifier are assembled on lead frame, the epoxy

package is designed as IR filter.

The demodulated output signal can directly be de-

coded by a microprocessor. The main benefit is the

reliable function even in disturbed ambient and the

protection against uncontrolled output pulses.

96 12582

Features

D

D

D

D

D

Photo detector and preamplifier in one package

Internal filter for PCM frequency

TTL and CMOS compatibility

Output active low

Improved shielding against electrical field

disturbance

Special Features

D

Small size package

D

Supply voltage 3鈥? Volt

D

Enhanced immunity against all kinds of

disturbance light

D

No occurrence of disturbance pulses at the

D

Short settling time after power on (<200

m

s)

output

D

Suitable burst length

鈮?

cycles/burst

Block Diagram

3

Input

Control

Circuit

80 k

W

1

PIN

AGC

Band

Pass

Demodu-

lator

2

GND

OUT

V

S

16249

Document Number 82052

Rev. 8, 29-Mar-01

www.vishay.com

1 (7)
