TSOP1837SA1 Datasheet

  • TSOP1837SA1

  • Photo Modules for PCM Remote Control Systems

  • 134.01KB

  • 7頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

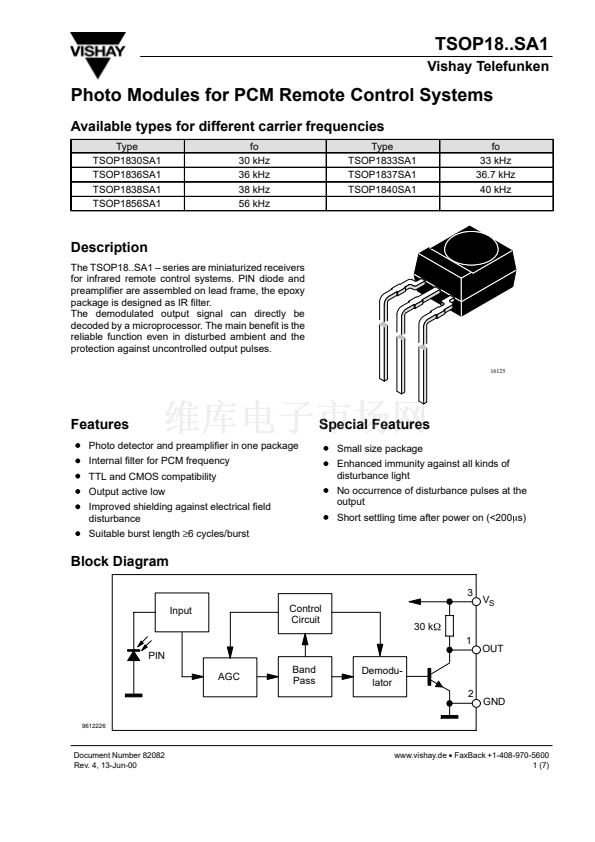

TSOP18..SA1
Vishay Telefunken
Photo Modules for PCM Remote Control Systems
Available types for different carrier frequencies
Type
TSOP1830SA1
TSOP1836SA1
TSOP1838SA1
TSOP1856SA1
fo
30 kHz
36 kHz
38 kHz
56 kHz
Type
TSOP1833SA1
TSOP1837SA1
TSOP1840SA1
fo
33 kHz
36.7 kHz
40 kHz
Description
The TSOP18..SA1 鈥?series are miniaturized receivers
for infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. The main benefit is the
reliable function even in disturbed ambient and the
protection against uncontrolled output pulses.
16125
Features
D
D
D
D
D
Photo detector and preamplifier in one package
Internal filter for PCM frequency
TTL and CMOS compatibility
Output active low
Improved shielding against electrical field
disturbance
Special Features
D
Small size package
D
Enhanced immunity against all kinds of
disturbance light
D
No occurrence of disturbance pulses at the
D
Short settling time after power on (<200
m
s)
output
D
Suitable burst length
鈮?
cycles/burst
Block Diagram
3
Input
Control
Circuit
30 k
W
1
PIN
AGC
Band
Pass
Demodu-
lator
2
9612226
V
S
OUT
GND
Document Number 82082
Rev. 4, 13-Jun-00
www.vishay.de
鈥?/div>
FaxBack +1-408-970-5600
1 (7)
