TSOP1340KA1 Datasheet

  • TSOP1340KA1

  • IR Receiver Modules for Remote Control Systems

  • 190.40KB

  • 7頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

VISHAY

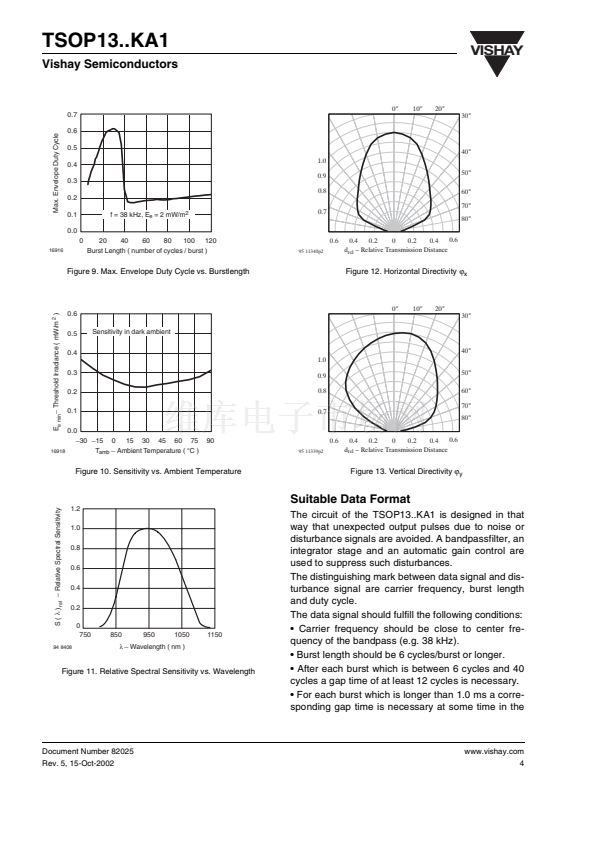

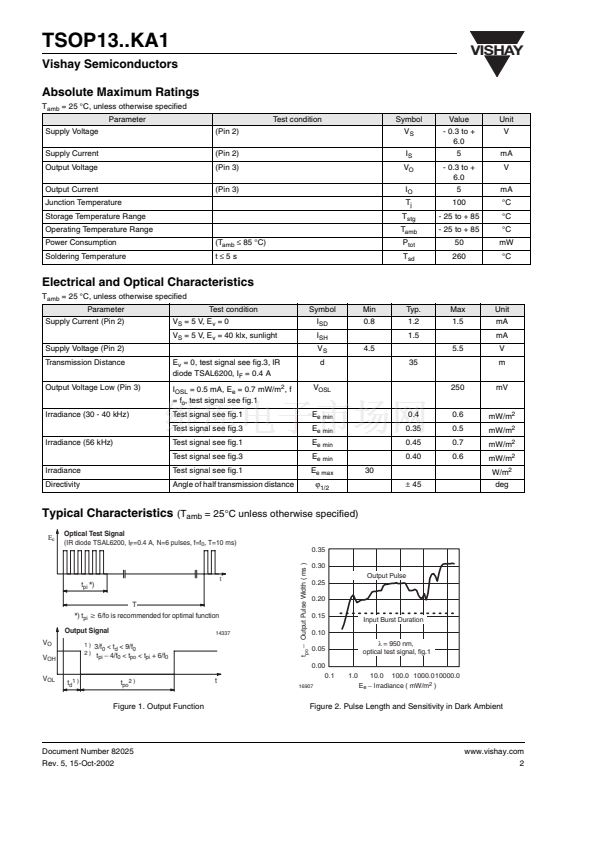

TSOP13..KA1
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description
The TSOP13..KA1- series are miniaturized receivers
for infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. The main benefit is the
reliable function even in disturbed ambient and the
protection against uncontrolled output pulses.
12797
Features
鈥?Photo detector and preamplifier in one package
鈥?Internal filter for PCM frequency
鈥?Improved shielding against electrical field distur-
bance
鈥?TTL and CMOS compatibility
鈥?Output active low
鈥?Low power consumption
鈥?No occurrence of disturbance pulses at the output
Parts Table
Part
TSOP1330KA1
TSOP1333KA1
TSOP1336KA1
TSOP1337KA1
TSOP1338KA1
TSOP1340KA1
TSOP1356KA1
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
Carrier Frequency
Special Features
鈥?Suitable burst length
鈮?
cycles/burst
鈥?Enhanced immunity against all kinds of distur-
bance light
鈥?Improved immunity against EMI from TV picture
tube
Application Circuit
Transmitter
TSOPxxxx
with
TSALxxxx
Circuit
R
1
= 100
鈩?/div>
V
S
C
1
=
4.7 碌F
V
O
+V
S
Block Diagram
2
25 k鈩?/div>
Input
PIN
AGC
Band
Pass
Demo-
dulator
V
S
OUT
GND
碌C
GND
R
1
+ C
1
recommended to suppress power supply
disturbances.
The output voltage should not be hold continuously at
a voltage below V
O =
3.3 V by the external circuit.
3
OUT
1
Control Circuit
GND
Document Number 82025
Rev. 5, 15-Oct-2002
www.vishay.com
1
