TSOP1237KD1 Datasheet

  • TSOP1237KD1

  • Photo Modules for PCM Remote Control Systems

  • 7頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

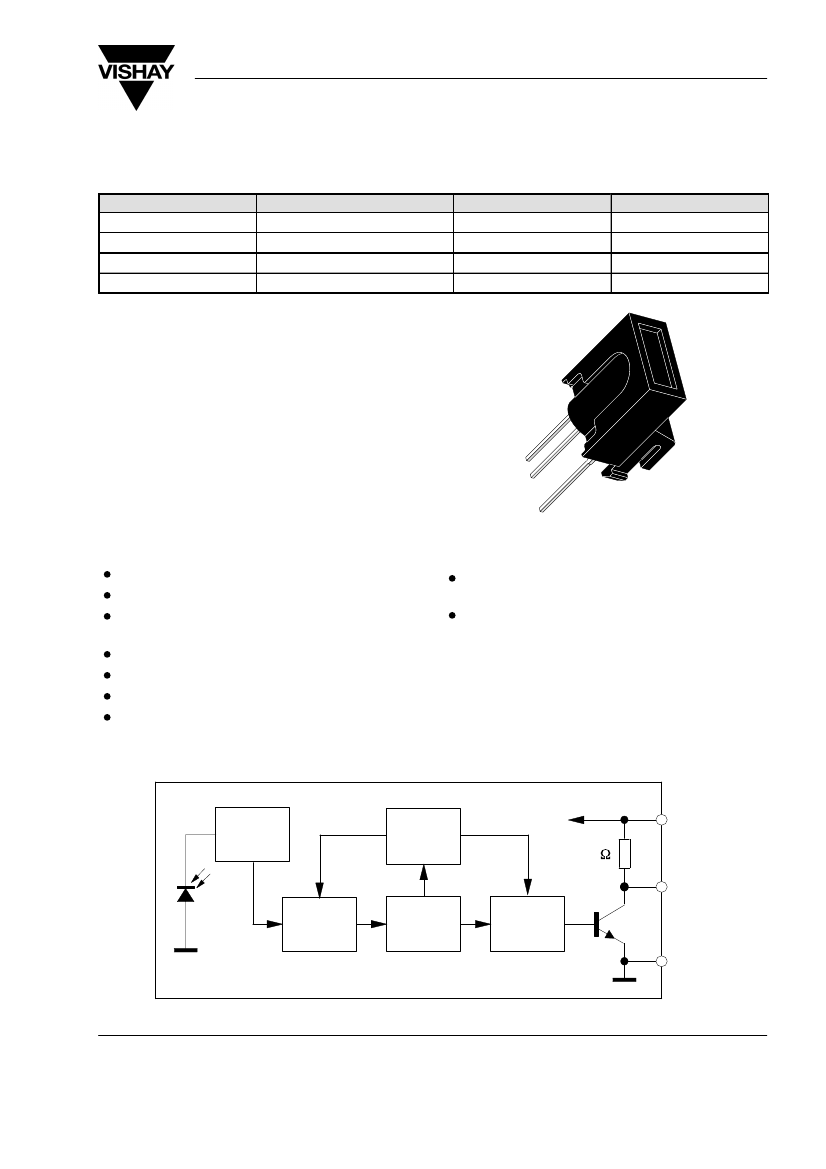

TSOP12..KD1
Vishay Telefunken
Photo Modules for PCM Remote Control Systems
Available types for different carrier frequencies
Type
TSOP1230KD1
TSOP1236KD1
TSOP1238KD1
TSOP1256KD1
fo
30 kHz
36 kHz
38 kHz
56 kHz
Type
TSOP1233KD1
TSOP1237KD1
TSOP1240KD1
fo
33 kHz
36.7 kHz
40 kHz
Description
The TSOP12..KD1 鈥?series are miniaturized receivers
for infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. The main benefit is the
reliable function even in disturbed ambient and the
protection against uncontrolled output pulses.
12797
Features
D
Photo detector and preamplifier in one package
D
Internal filter for PCM frequency
D
Improved shielding against electrical field
disturbance
Special Features
D
Enhanced immunity against all kinds of
disturbance light
D
No occurrence of disturbance pulses at
the output
D
D
D
D
TTL and CMOS compatibility
Output active low
Low power consumption
Suitable burst length
鈮?0
cycles/burst

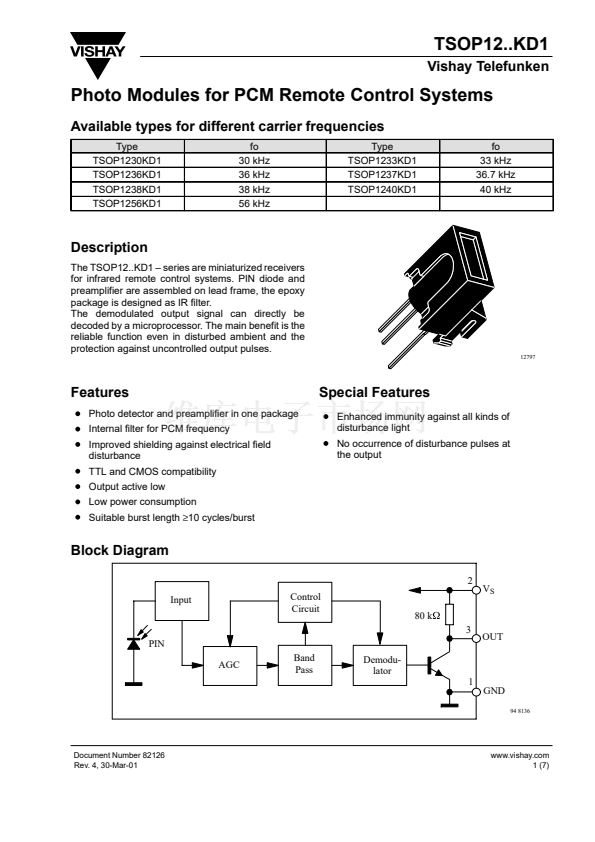

Block Diagram
2
Input
Control
Circuit
80 k
W
3
PIN
AGC
Band
Pass
Demodu-
lator
1
GND
94 8136
V
S
OUT
Document Number 82126
Rev. 4, 30-Mar-01
www.vishay.com
1 (7)
