TSM7401CS Datasheet

  • TSM7401CS

  • 20V N-Channel MOSFET w/ESD Protected

  • 176.08KB

  • 5頁

  • TSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

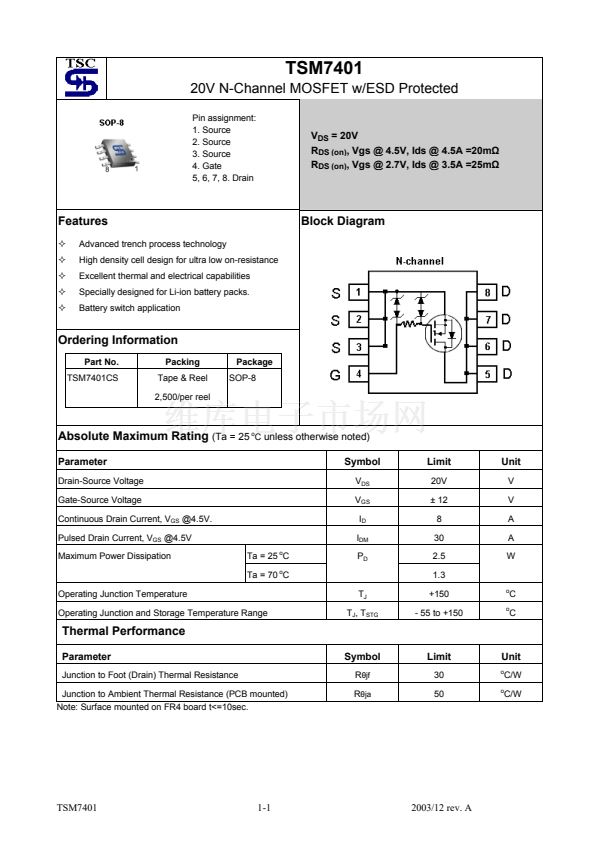

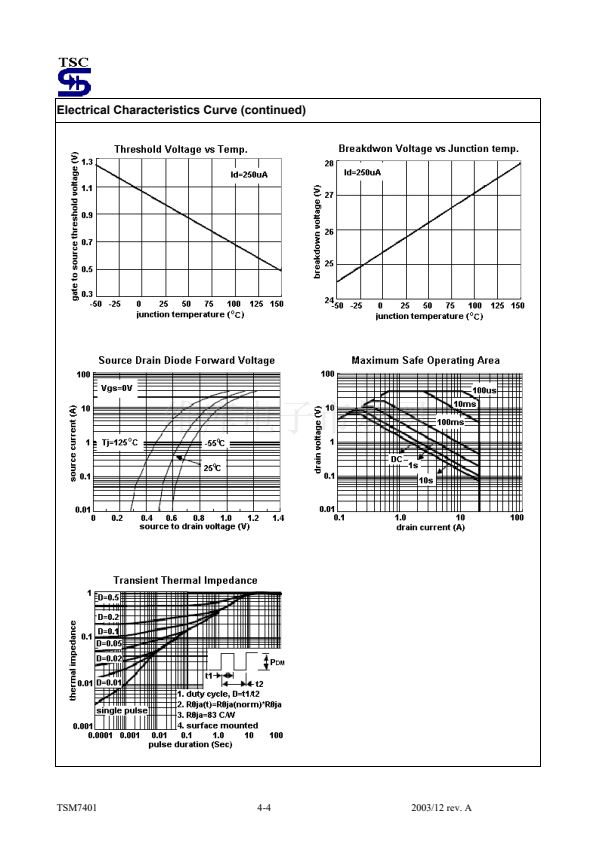

TSM7401
20V N-Channel MOSFET w/ESD Protected
Pin assignment:
1. Source
2. Source
3. Source
4. Gate
5, 6, 7, 8. Drain
V
DS
= 20V
R
DS (on)
, Vgs @ 4.5V, Ids @ 4.5A =20m鈩?/div>
R
DS (on)
, Vgs @ 2.7V, Ids @ 3.5A =25m鈩?/div>
Features
Advanced trench process technology
High density cell design for ultra low on-resistance
Excellent thermal and electrical capabilities
Specially designed for Li-ion battery packs.
Battery switch application
Block Diagram
Ordering Information
Part No.
TSM7401CS
Packing
Tape & Reel
2,500/per reel

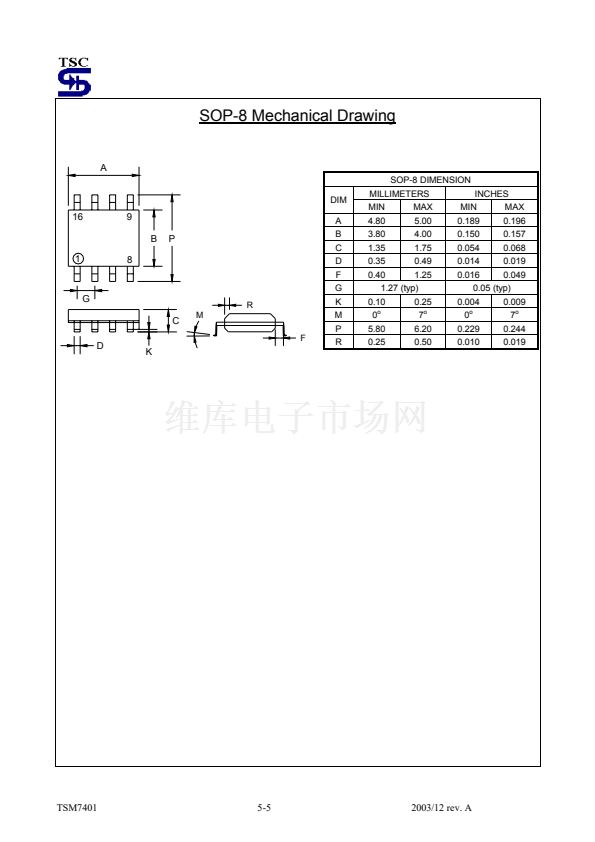

Package
SOP-8
Absolute Maximum Rating
(Ta = 25
o
C
unless otherwise noted)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@4.5V.
Pulsed Drain Current, V
GS
@4.5V
Maximum Power Dissipation
Ta = 25
o
C
Ta = 70
o
C
Operating Junction Temperature
Operating Junction and Storage Temperature Range
T
J
T
J
, T
STG
Symbol
V
DS
V
GS
I
D
I
DM
P
D
Limit
20V
鹵 12
8
30
2.5
1.3
+150
- 55 to +150
Unit
V
V
A
A
W
o
o
C
C

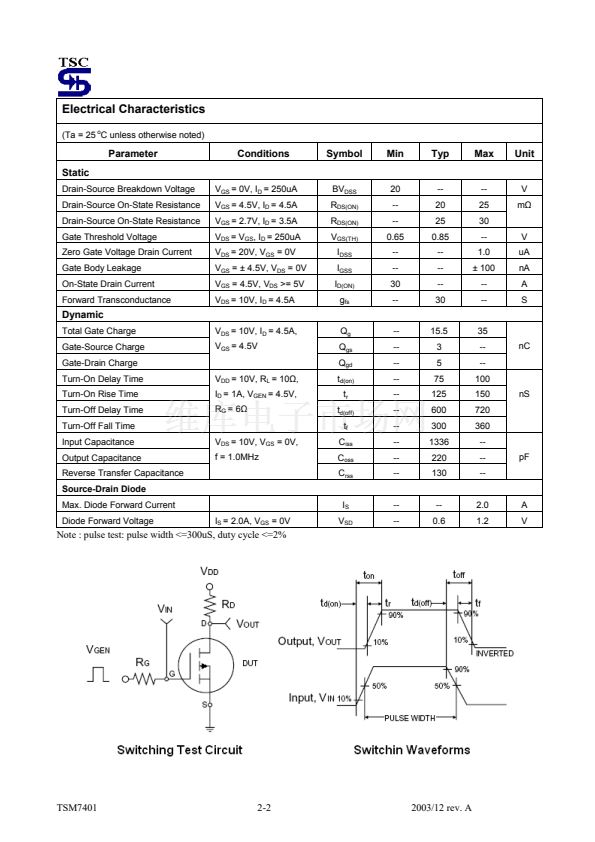

Thermal Performance
Parameter
Junction to Foot (Drain) Thermal Resistance
Junction to Ambient Thermal Resistance (PCB mounted)
Note: Surface mounted on FR4 board t<=10sec.
Symbol
R
胃jf
R
胃ja
Limit
30
50
Unit
o
o
C/W
C/W
TSM7401
1-1
2003/12 rev. A
