TSM111

TRIPLE VOLTAGE AND CURRENT SUPERVISOR

OVERVOLTAGE PROTECTION FOR 3.3V, 5V

AND 12V WITHOUT EXTERNAL COMPO-

NENTS

OVERCURRENT PROTECTION FOR 3.3V,

5V AND 12V WITH INTERNAL THRESHOLD

VOLTAGE

DIP20

(Plastic Package)

POWER GOOD CIRCUITRY

GENERATES POWER GOOD SIGNAL

REMOTE ON/OFF FUNCTION

PROGRAMMABLE TIMING FOR POWER

GOOD SIGNAL

14.5V TO 36V SUPPLY VOLTAGE RANGE

TWO 1.6% VOLTAGE REFERENCES FOR

MAIN AND AUXILIARY CONVERTER REG-

ULATION LOOPS

DESCRIPTION

The TSM111 integrated circuit incorporates all

sensing circuit to control a triple output power sup-

ply. It includes voltage references , comparators

and matched resistors bridge for overcurrent and

overvoltage detection without the need of any ex-

ternal components. Timing generator with external

capacitors, control turn On and Off delays. It pro-

vides an integrated and cost effective solution for

simultaneous multiple voltage control.

APPLICATION

This circuit is designed to be used in SMPS for

Desktop PC, to supervise currents and voltages of

all outputs and generate power good information

to the system while managing all timing during

transitory operation.

The IC also manages the standby mode of SMPS

while the PC is in sleep mode.

SO20

(Plastic Micropackage)

ORDER CODE

Package

Part Number

Temperature Range

TSM111C

Example :

TSM111CD

0, +70擄C

鈥?/div>

N =

Dual in Line Package (DIP)

D =

Small Outline Package (SO) - also available in Tape & Reel (DT)

PIN CONNECTIONS

(top view)

Vs33

Vs5

Vs12

ADJ

Vcc

PWM

REM

Trem

Tpor

Is33

Is5

Is12

Tsur

GND

FbMAIN

VrefMAIN

VrefAUX

FbAUX

May 2001

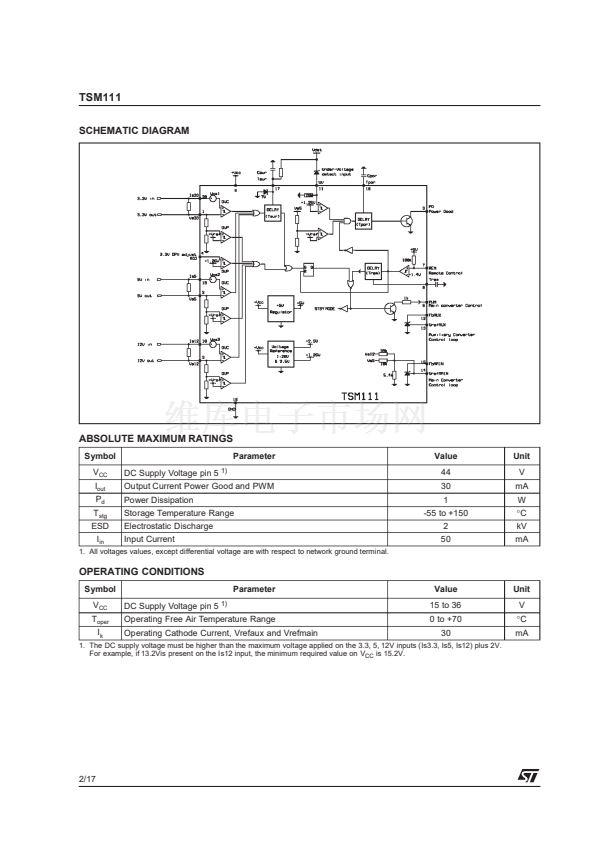

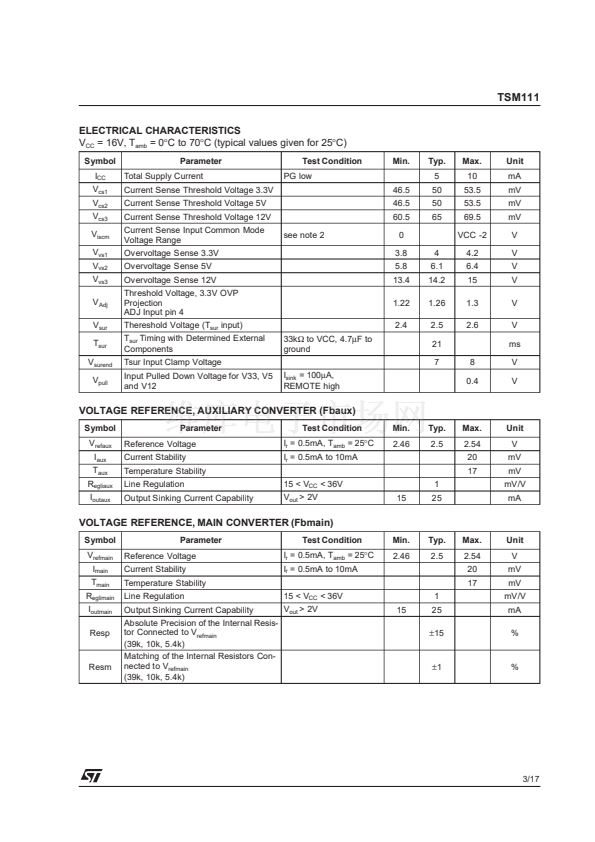

1/17

其它有關文件
TSM111 View All Specifications
標準包裝
1
類別
集成電路 (IC)
家庭
PMIC - 監控器
系列
-
類型
多壓監控器
監視電壓數目
3
輸出
-
復位
-
復位超時
最小為 100 ms
電壓 - 閥值
4V，6.1V，14.2V
工作溫度
0°C ~ 70°C
安裝類型
表面貼裝
封裝/外殼
20-SOIC（0.295"，7.50mm 寬）
供應商設備封裝
20-SO
包裝
Digi-Reel®
