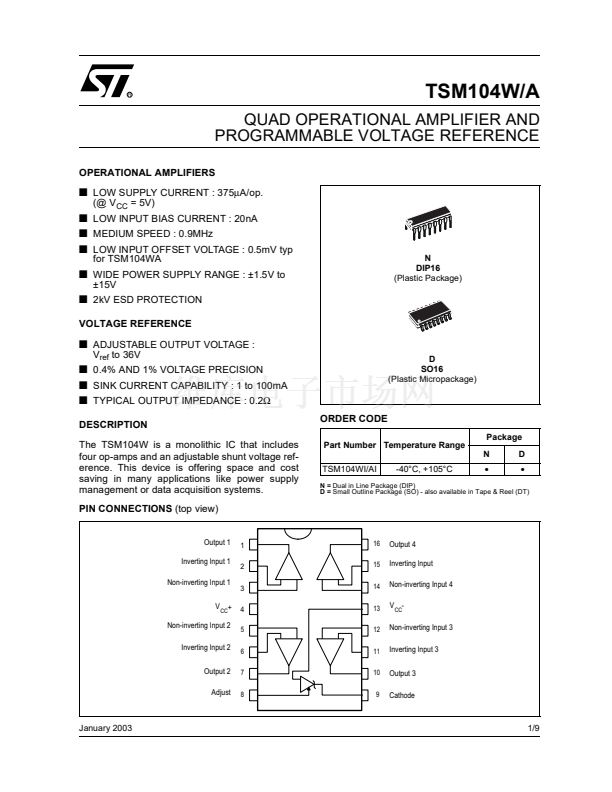

TSM104W/A

QUAD OPERATIONAL AMPLIFIER AND

PROGRAMMABLE VOLTAGE REFERENCE

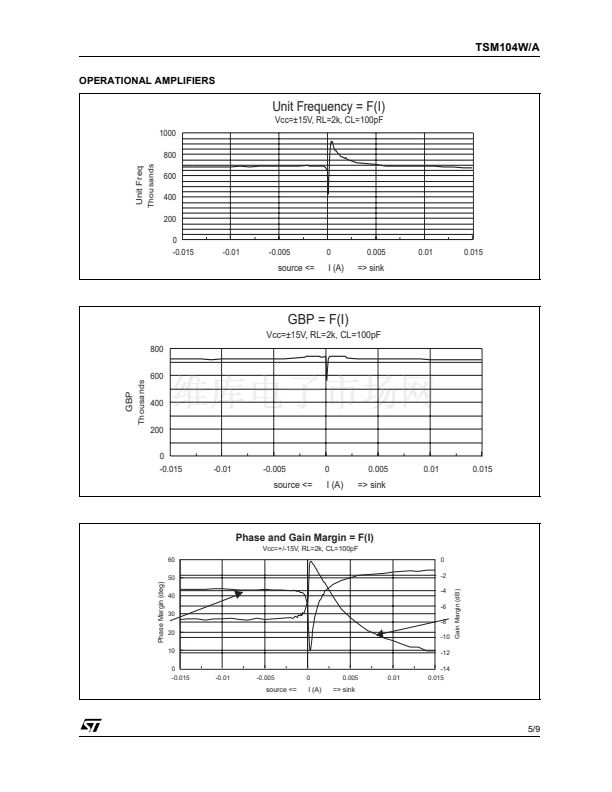

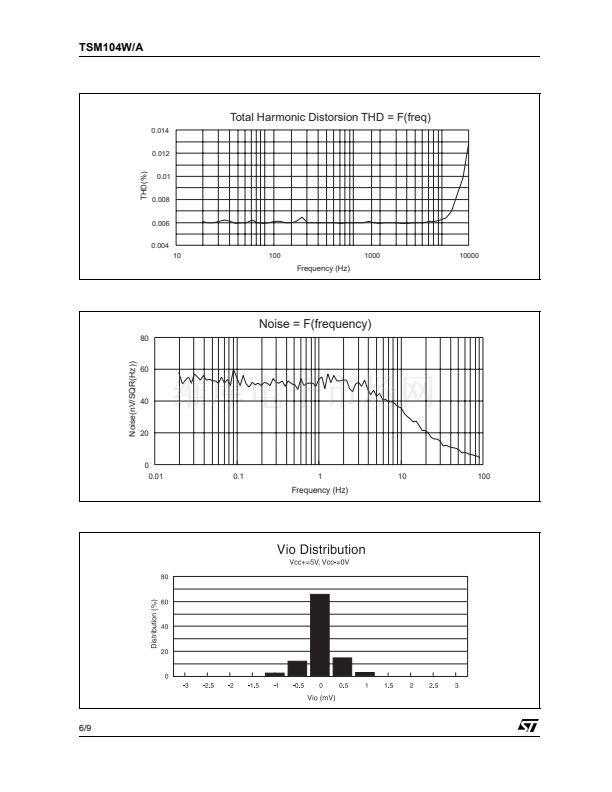

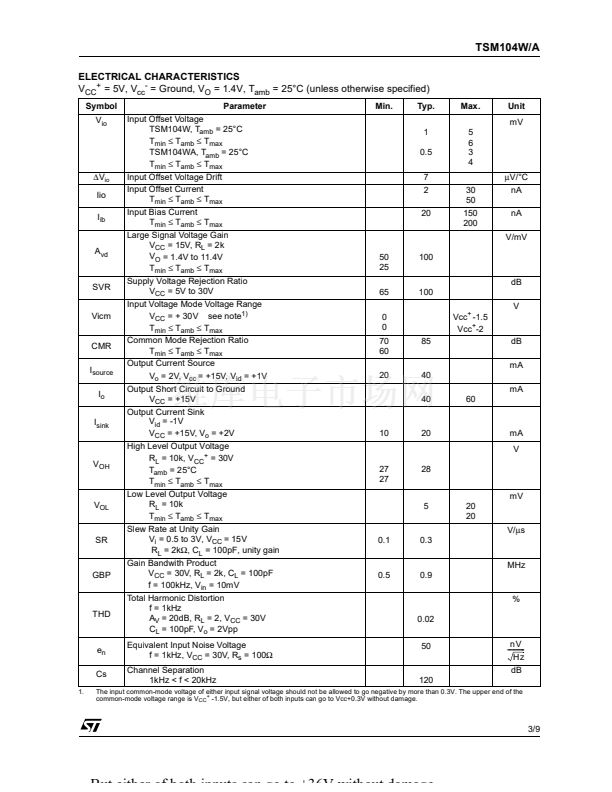

OPERATIONAL AMPLIFIERS

LOW SUPPLY CURRENT : 375碌A(chǔ)/op.

(@ V

= 5V)

LOW INPUT BIAS CURRENT : 20nA

MEDIUM SPEED : 0.9MHz

LOW INPUT OFFSET VOLTAGE : 0.5mV typ

for TSM104WA

WIDE POWER SUPPLY RANGE : 鹵1.5V to

鹵15V

DIP16

(Plastic Package)

2kV ESD PROTECTION

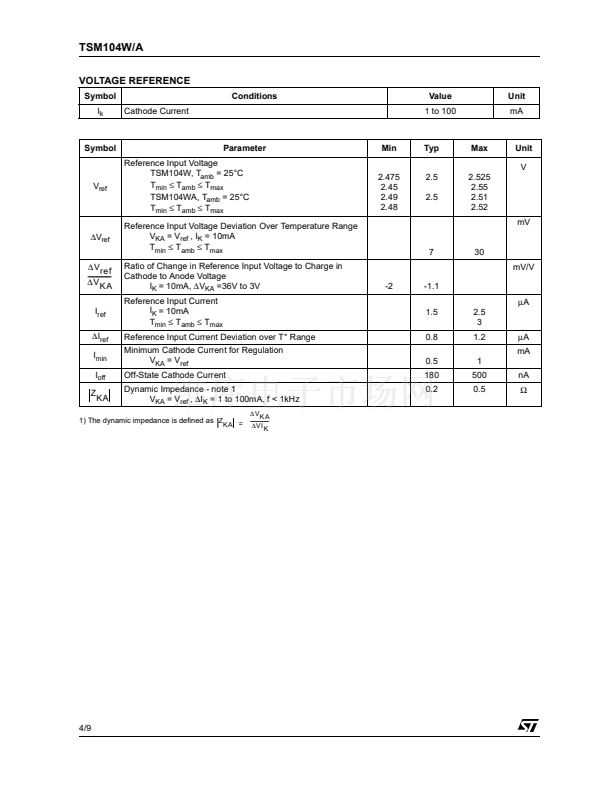

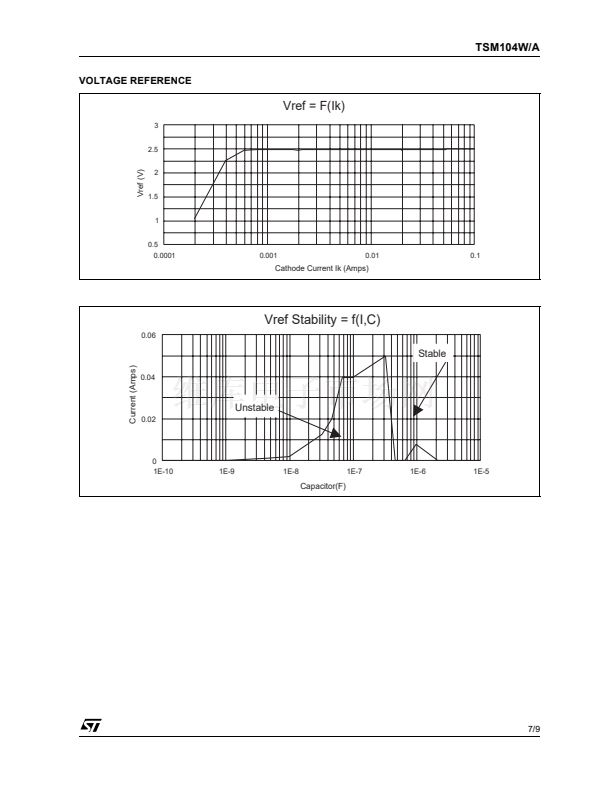

VOLTAGE REFERENCE

ADJUSTABLE OUTPUT VOLTAGE :

ref

to 36V

0.4% AND 1% VOLTAGE PRECISION

SINK CURRENT CAPABILITY : 1 to 100mA

TYPICAL OUTPUT IMPEDANCE : 0.2鈩?/div>

DESCRIPTION

The TSM104W is a monolithic IC that includes

four op-amps and an adjustable shunt voltage ref-

erence. This device is offering space and cost

saving in many applications like power supply

management or data acquisition systems.

PIN CONNECTIONS

(top view)

Output 1

Inverting Input 1

Non-inverting Input 1

Non-inverting Input 2

Inverting Input 2

Output 2

Adjust

SO16

(Plastic Micropackage)

ORDER CODE

Package

Part Number Temperature Range

TSM104WI/AI

-40擄C, +105擄C

鈥?/div>

N =

Dual in Line Package (DIP)

D =

Small Outline Package (SO) - also available in Tape & Reel (DT)

Output 4

Inverting Input

Non-inverting Input 4

Non-inverting Input 3

Inverting Input 3

Output 3

Cathode

January 2003

1/9
