TSM103AID Datasheet

  • TSM103AID

  • OP-AMP|DUAL|BIPOLAR|SOP|8PIN|PLASTIC

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

TSM103/A
DUAL OPERATIONAL AMPLIFIER AND
VOLTAGE REFERENCE
OPERATIONAL AMPLIFIER
s
LOW INPUT OFFSET VOLTAGE : 0.5mV
typ.for TSM103A
s
LOW SUPPLY CURRENT : 350碌A/op.
(@ V
CC
= 5V)
s
MEDIUM BANDWIDTH (unity gain) : 0.9MHz
s
LARGE OUTPUT VOLTAGE SWING : 0V to
(V
CC
- 1.5V)
s
INPUT COMMON MODE VOLTAGE RANGE
INCLUDES GROUND
s
WIDE POWER SUPPLY RANGE : 3 to 32V
鹵1.5 TO 鹵16V
VOLTAGE REFERENCE
D
SO8
(Plastic Micropackage)
s
FIXED OUTPUT VOLTAGE REFERENCE 2.5V
s
0.4% AND 1% VOLTAGE PRECISION
s
SINK CURRENT CAPABILITY : 1 to 100mA
s
TYPICAL OUTPUT IMPEDANCE : 0.2鈩?/div>
DESCRIPTION
The TSM103 is a monolithic IC that includes one
independent op-amp and another op-amp for
which the non inverting input is wired to a 2.5V
fixed Voltage Reference. This device is offering
space and cost saving in many applications like
power supply management or data acquisition
systems.
ORDER CODE
Package
Part Number
TSM103I/AI
Temperature Range
D
-40擄C, +105擄C
鈥?/div>
PIN CONNECTIONS
(top view)
Output 1
1
OP1
Inverting Input 1 2
Non-inverting Input 1 3
V - 4
CC
-
+
OP2
8 VCC+
7 Output 2
6 Inverting Input 2
VRef
+
-
5 Non-inverting Input 2
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
May 2001
1/9

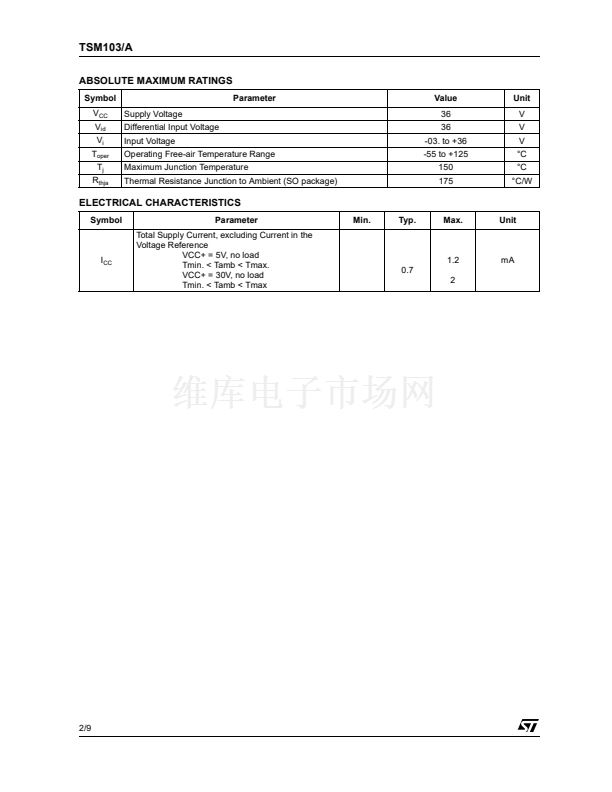

TSM103AID 產品屬性

  • 100

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 通用

  • 2

  • -

  • 0.4 V/µs

  • 900kHz

  • -

  • 20nA

  • 500µV

  • 700µA

  • 40mA

  • 3 V ~ 32 V，±1.5 V ~ 16 V

  • -40°C ~ 105°C

  • 表面貼裝

  • 8-SOIC（0.154"，3.90mm 寬）

  • 8-SO

  • 管件

  • 497-3104
