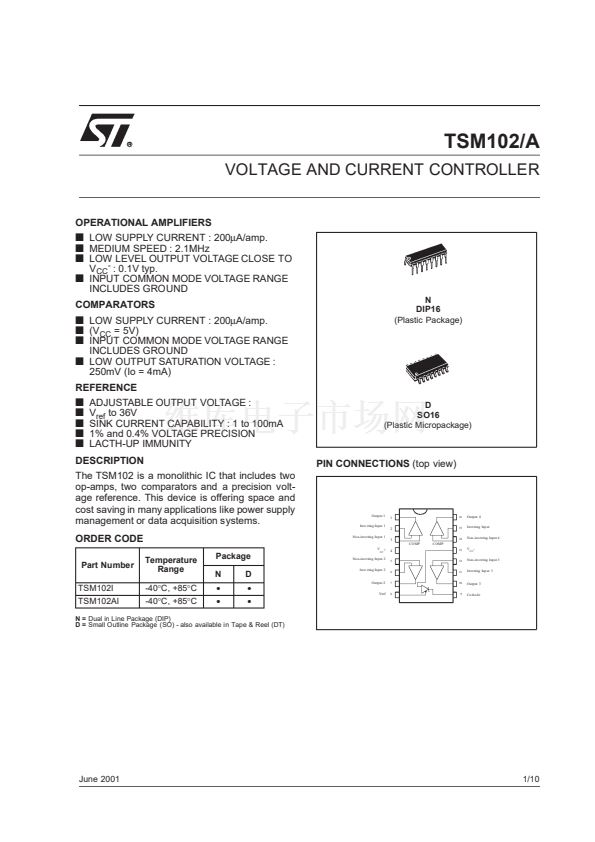

TSM102/A
VOLTAGE AND CURRENT CONTROLLER
OPERATIONAL AMPLIFIERS
s
LOW SUPPLY CURRENT : 200碌A(chǔ)/amp.
s
MEDIUM SPEED : 2.1MHz
s
LOW LEVEL OUTPUT VOLTAGE CLOSE TO
V
CC-
: 0.1V typ.
s
INPUT COMMON MODE VOLTAGE RANGE
INCLUDES GROUND
COMPARATORS
s
LOW SUPPLY CURRENT : 200碌A(chǔ)/amp.
s
(V
CC
= 5V)
s
INPUT COMMON MODE VOLTAGE RANGE
INCLUDES GROUND
s
LOW OUTPUT SATURATION VOLTAGE :
250mV (Io = 4mA)
REFERENCE
N
DIP16
(Plastic Package)
s
s
s
s
s
ADJUSTABLE OUTPUT VOLTAGE :
V
ref
to 36V
SINK CURRENT CAPABILITY : 1 to 100mA
1% and 0.4% VOLTAGE PRECISION
LACTH-UP IMMUNITY
D
SO16
(Plastic Micropackage)
DESCRIPTION
The TSM102 is a monolithic IC that includes two
op-amps, two comparators and a precision volt-
age reference. This device is offering space and
cost saving in many applications like power supply
management or data acquisition systems.
ORDER CODE
Part Number
TSM102I
TSM102AI
Temperature
Range
-40擄C, +85擄C
-40擄C, +85擄C
Package
N
鈥?/div>
鈥?/div>
D
鈥?/div>
鈥?/div>
PIN CONNECTIONS
(top view)
Outpu t 1
Inve rting Inpu t 1
No n-inve rting Inp ut 1
1
2
3
CO MP
C OMP
4
5
16
Output 4
Inverting Inp ut
Non -inve rting Inp ut 4
V
15
14
V
CC
+
13
CC
-
No n-inve rting Inp ut 2
Inve rting Inpu t 2
12
Non -inve rting Inp ut 3
Inverting Inp ut 3
6
11
Outpu t 2
Vref
7
10
Output 3
Ca tho de
8
9
N =
Dual in Line Package (DIP)
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
June 2001
1/10
