TSH94IDT Datasheet

  • TSH94IDT

  • Voltage-Feedback Operational Amplifier

  • 109.92KB

  • 11頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TSH94
HIGH SPEED LOW POWER QUAD
OPERATIONAL AMPLIFIER (WITH
STANDBY
POSITION)
s
2 SEPARATE STANDBY
: REDUCED
s
s
s
s
s
s
s
s
CONSUMPTION
AND
HIGH IMPEDANCE
OUTPUTS
LOW SUPPLY CURRENT : 4.5mA
HIGH SPEED : 150MHz - 110V/碌s
UNITY GAIN STABILITY
LOW OFFSET VOLTAGE : 3mV
LOW NOISE 4.2 nV/鈭欻z
LOW COST
SPECIFIED FOR
600鈩?/div>
AND
150鈩?/div>
LOADS
HIGH VIDEO PERFORMANCES :
Differential Gain : 0.03%
Differential Phase : 0.07擄
Gain Flatness : 6MHz, 0.1dB max. @ 10dB
gain
HIGH AUDIO PERFORMANCES
D
SO16
(Plastic Micropackage)
PIN CONNECTIONS
(top view)
s
DESCRIPTION
The TSH94 is a quad low power high frequency
op-amp, designated for high quality video signal
processing. The device offers an excellent speed
consumption ratio with 4.5mA per amplifier for
150MHz bandwidth.
High slew rate and low noise make it also suitable
for high quality audio applications.

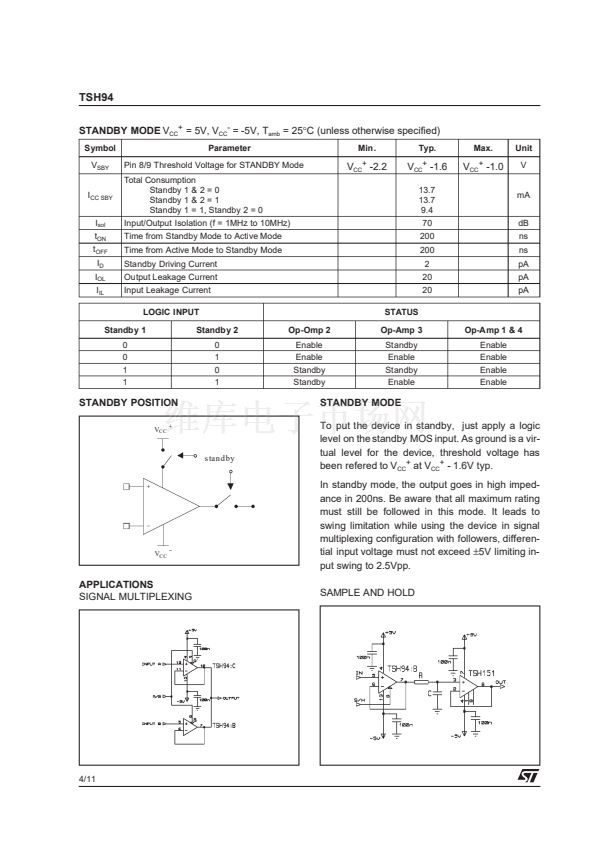

The TSH94 offers 2 separate complementary
STANDBY pins :
u
STANDBY 1 acting on the n擄 2 operator
u
STANDBY 2 acting on the n擄 3 operator
They reduce the consumption of the correspond-
ing operator and put the output in a high imped-
ance state.
ORDER CODE
Package
Part Number
TSH94I
Temperature Range
D
-40擄C, +125擄C
鈥?/div>
Output 1
Inverting Input 1
Non-inve rting Input 1
V
C C
+
Non-inverting Input 2
Inverting Input 2
Output 2
Sta ndby 1 8
1
2
3
4
5
6
7
+
-
+
-
-
+
-
+
16
15
14
13
12
11
10
9
Output 4
Inverting Input 4
Non-inverting Input 4
V
C C
-
Non-inverting Input 3
Inverting Input 3
Output 3
Sta n d by 2
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
October 2000
1/11

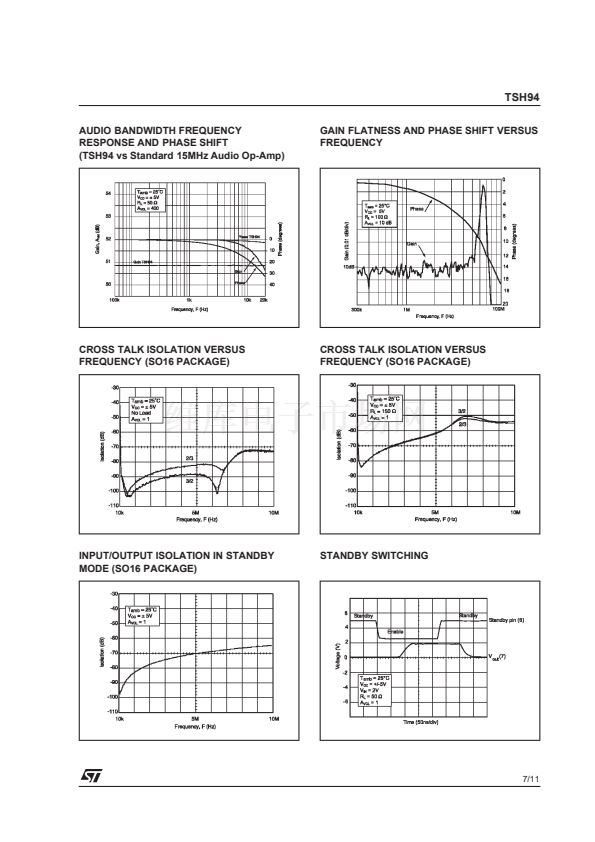

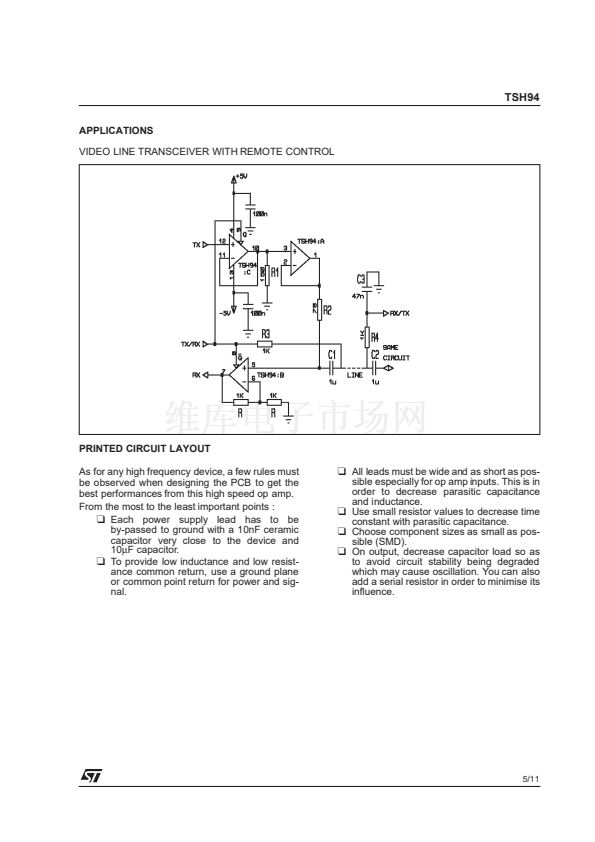

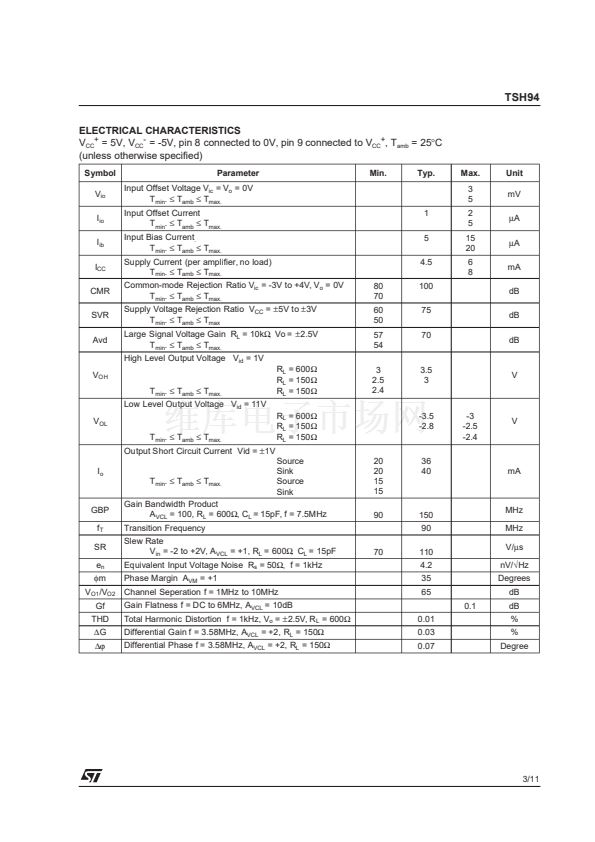

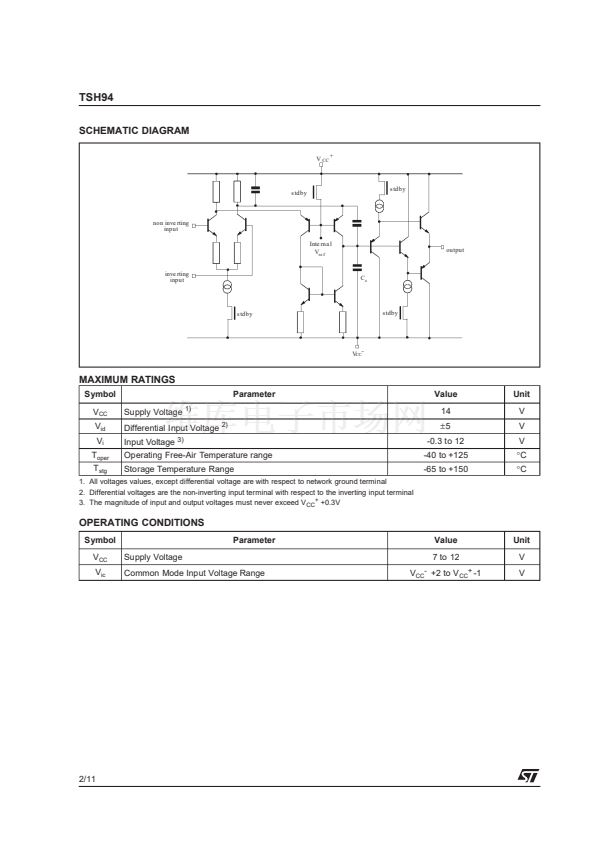

TSH94IDT 產品屬性

  • TSH94 View All Specifications

  • 1

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 電壓反饋

  • 4

  • -

  • 110 V/µs

  • 150MHz

  • -

  • 5µA

  • 3000µV

  • 4.5mA

  • 40mA

  • 7 V ~ 12 V，±3.5 V ~ 6 V

  • -40°C ~ 125°C

  • 表面貼裝

  • 16-SOIC（0.154"，3.90mm 寬）

  • 16-SO

  • Digi-Reel®

  • 497-11948-6
