TSDF02830YL Datasheet

  • TSDF02830YL

  • Analog Miscellaneous

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

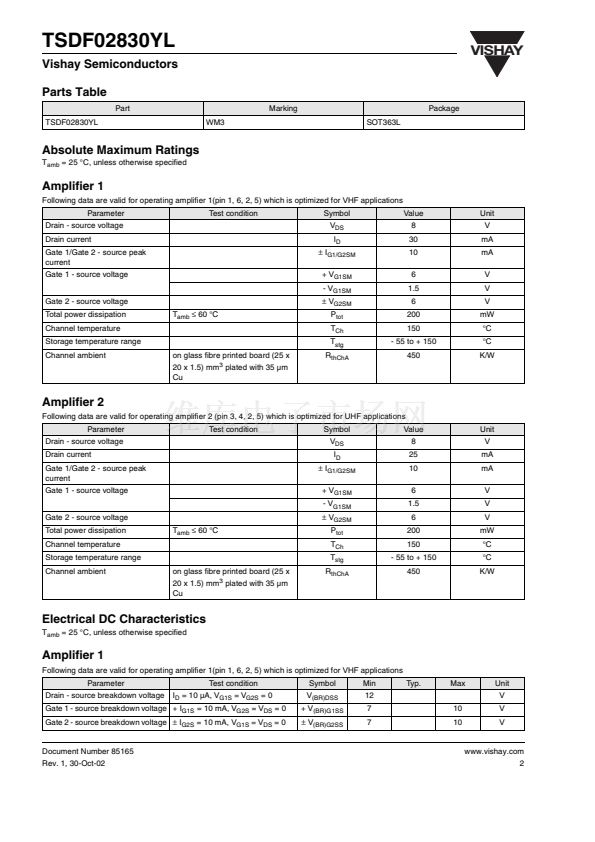

PDF預覽

VISHAY
TSDF02830YL
Vishay Semiconductors
Dual - MOSMIC
廬
- two AGC Amplifiers for
TV-Tuner Prestage with
5 V Supply Voltage
6 5 4
Comments
MOSMIC
-
MOS Monolithic Integrated Circuit
VY
CW
WM3
2
3
16984
1
Electrostatic sensitive device.
Observe precautions for handling.
Features
鈥?Easy Gate 1 switch-off with PNP switching transis-
tors inside PLL
鈥?Two differently optimized amplifiers in a single
package
鈥?Integrated gate protection diodes
鈥?Low noise figure, high gain
鈥?Typical forward transadmittance of 31 mS resp 28
mS
鈥?Partly internal self biasing-network on chip
鈥?Superior cross modulation at gain reduction
鈥?High AGC-range with soft slope
鈥?Main AGC control range from 3 V to 0.5 V
鈥?Supply voltage 5 V (3 V to 7 V)
鈥?SMD package, standard pinning
Mechanical Data
Weight:
6 mg
Case:
SOT 363L
V - Vishay
Y - Year, is variable for digit from 0 to 9
(e.g. 0 = 2000, 1 = 2001)
CW - Calendar Week, is variable for number
from 01 to 52
Number of Calendar Week is always indicating
place of pin 1
Pinning:
1 = Gate 1 (amplifier 1), 2 = Gate 2,
3 = Gate 1 (amplifier 2), 4 = Drain (amplifier 2),
5 = Source, 6 = Drain (amplifier 1)
Applications
Low noise gain controlled VHF and UHF input stages,
such as in digital and analog TV tuners.
AGC
C
C
VHF in
+5 V
RG1
D 4
RFC
+5 V
C
UHF in
+5 V
RG1
C
UHF out
3 G1
AMP2
2
G2 (common)
RFC
+5 V
D 6
C
VHF out
1 G1
AMP1
S (common)
5
16983
Document Number 85165
Rev. 1, 30-Oct-02
www.vishay.com
1
