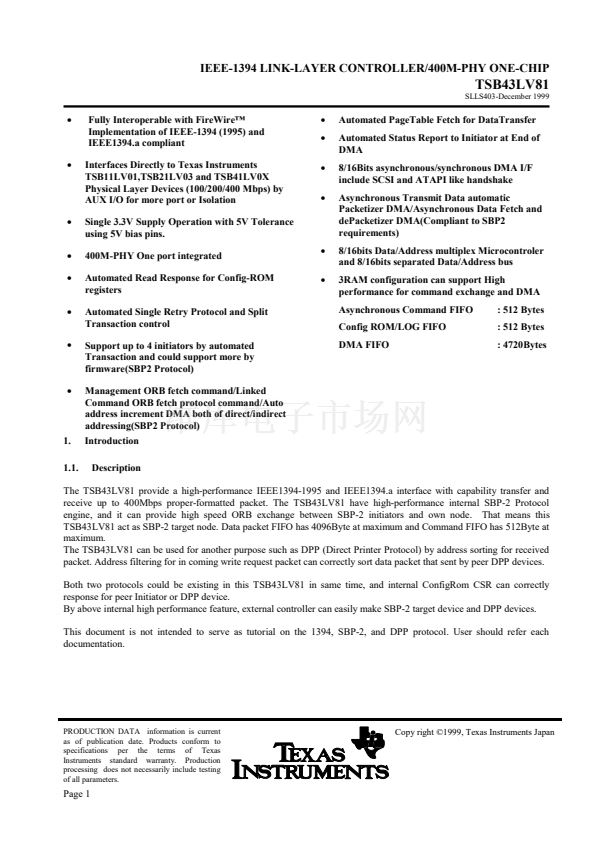

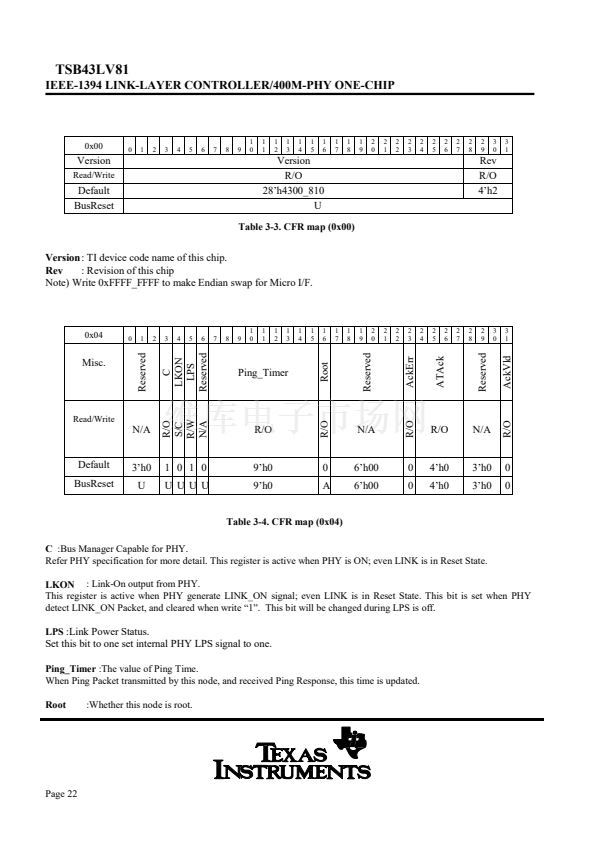

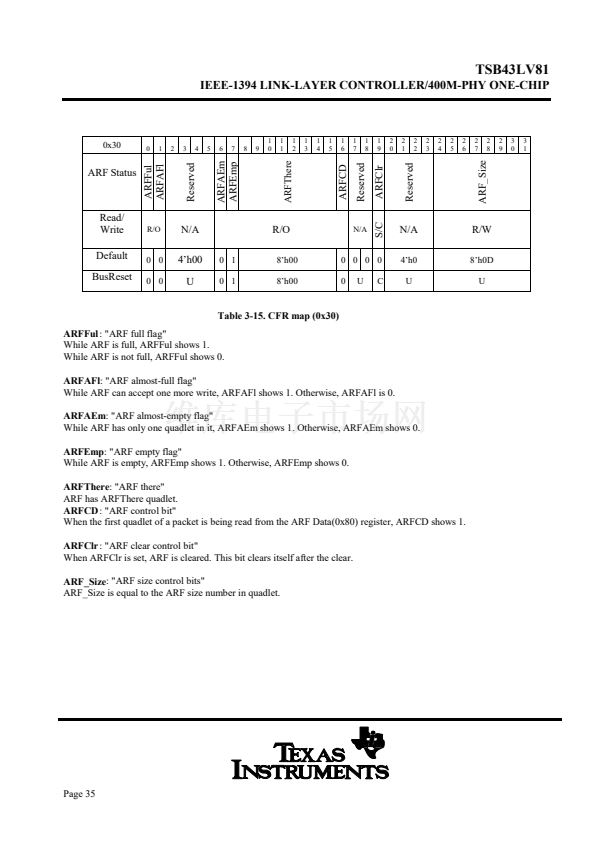

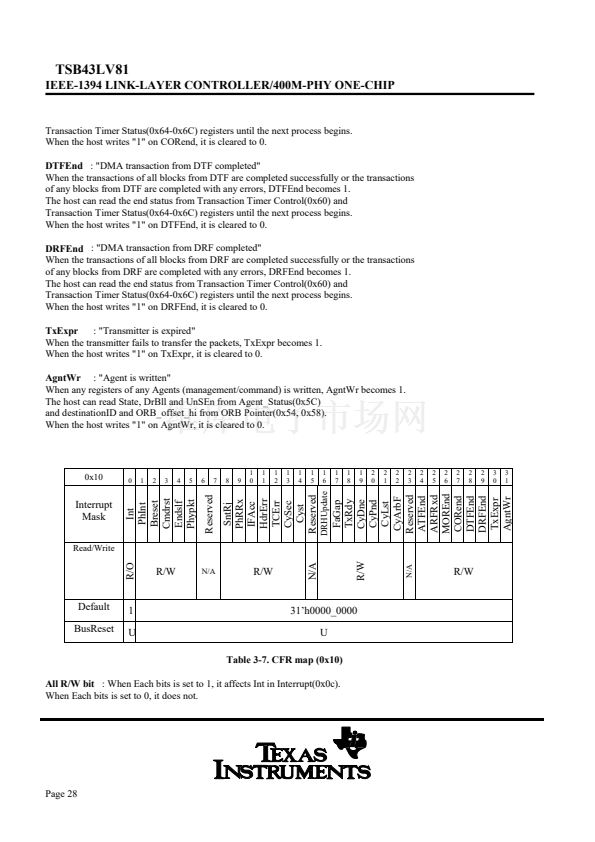

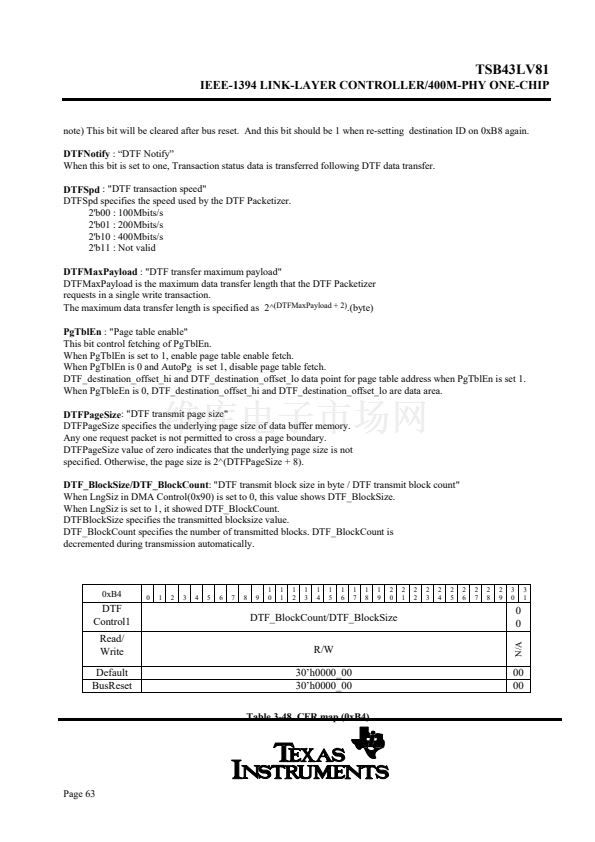

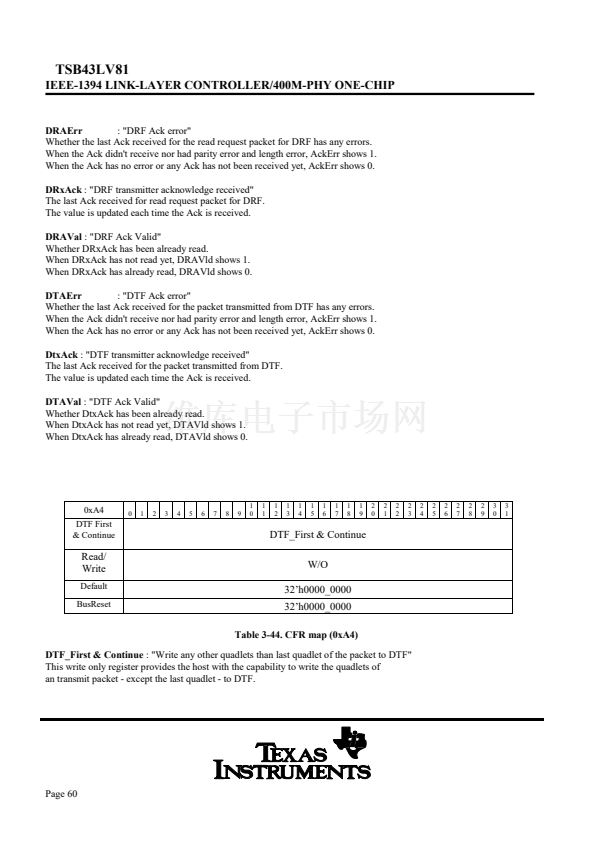

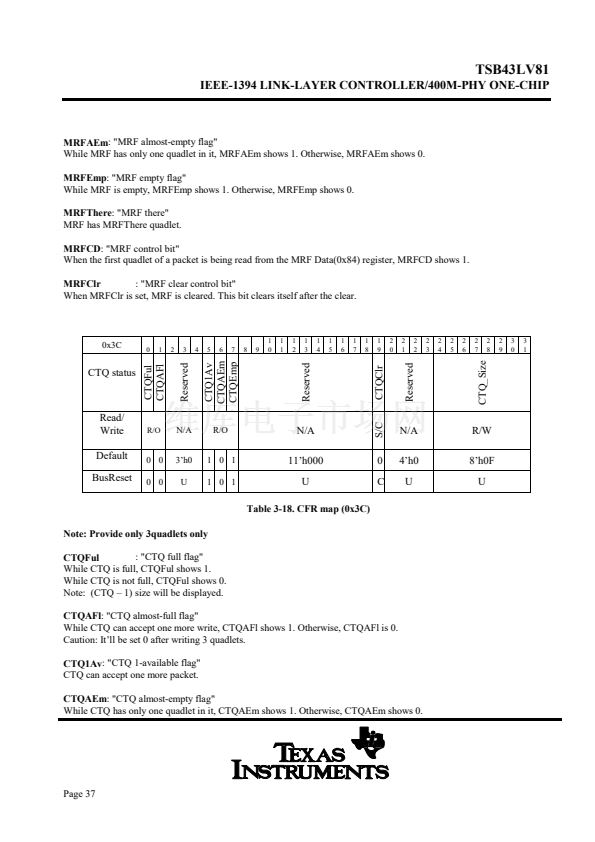

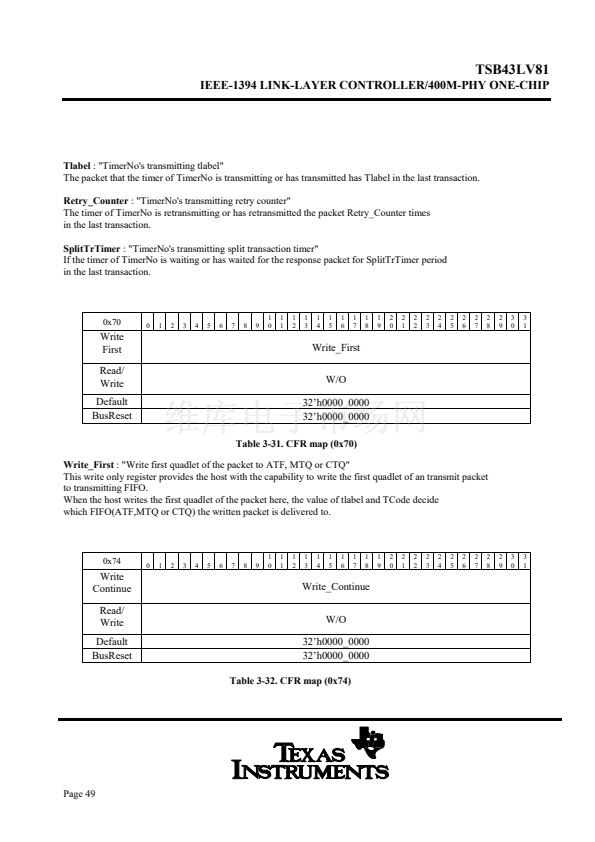

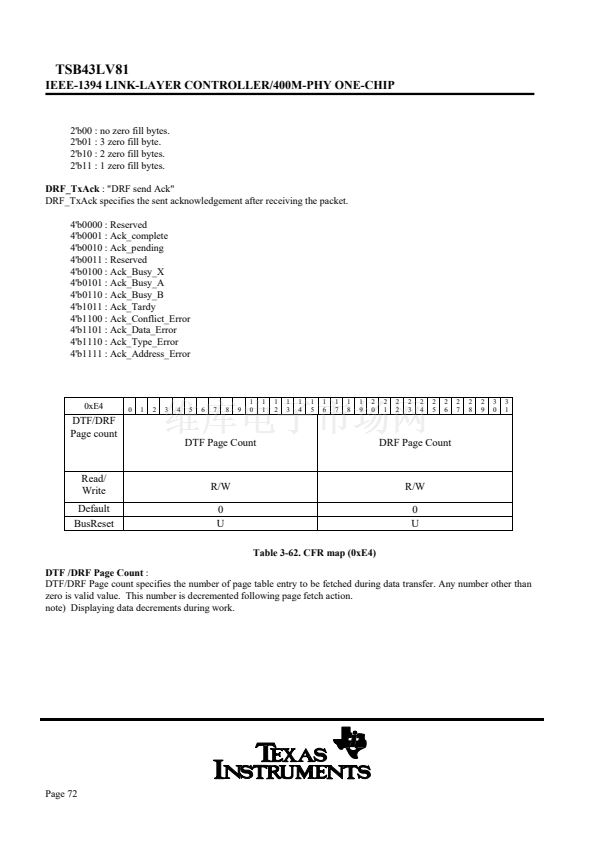

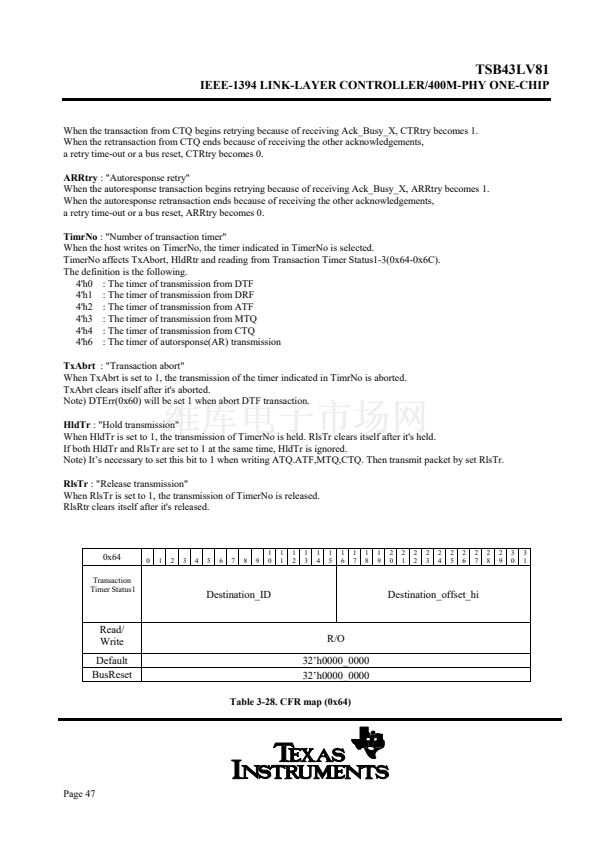

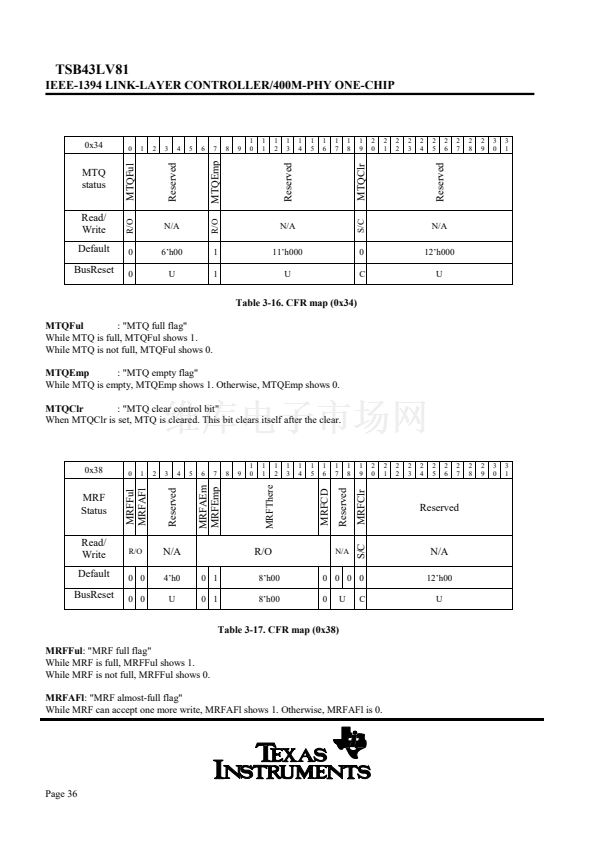

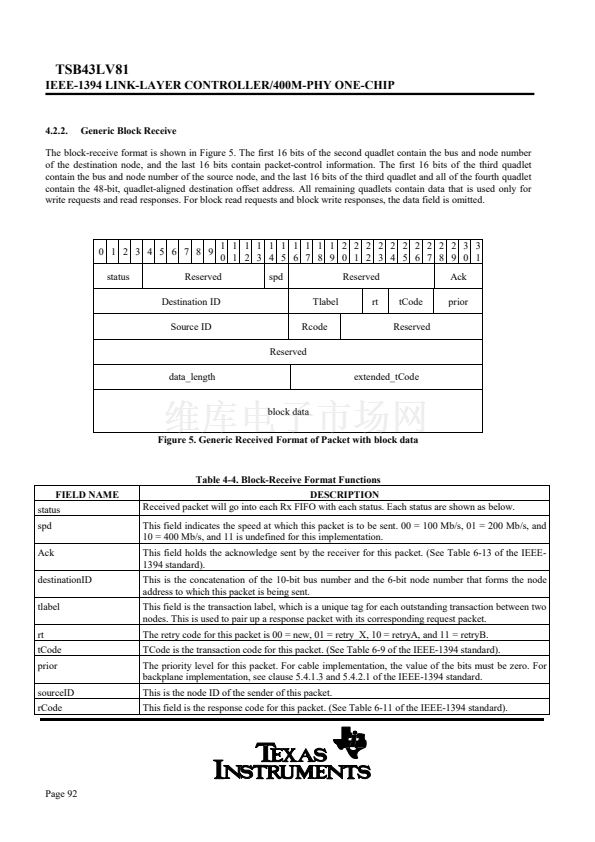

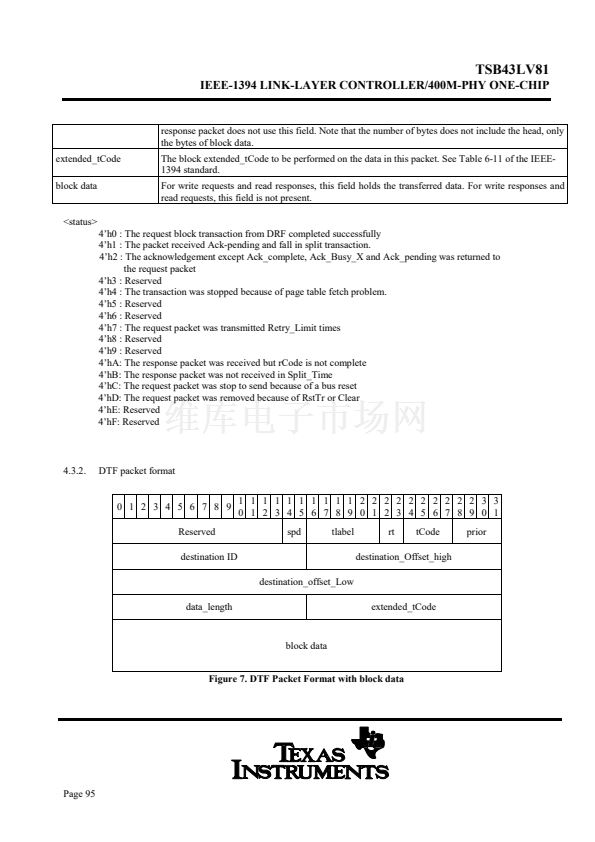

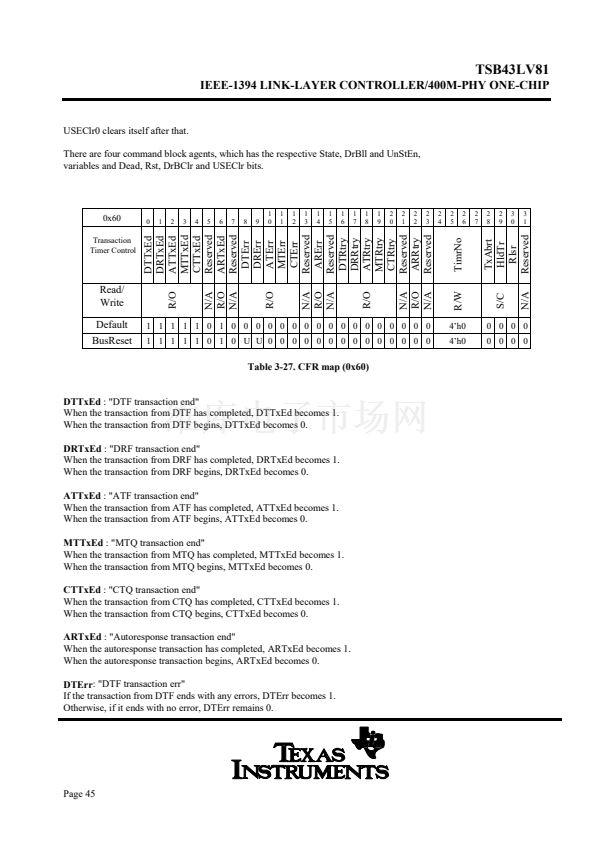

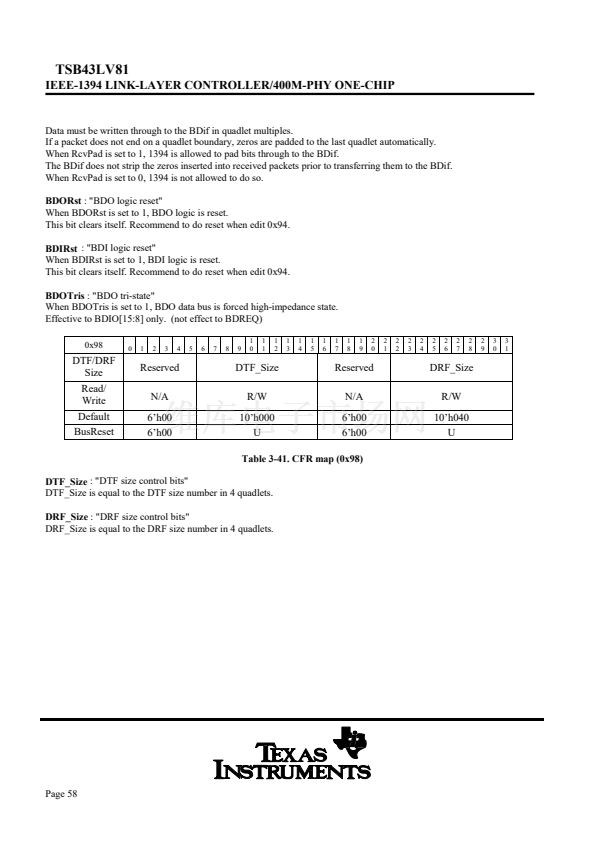

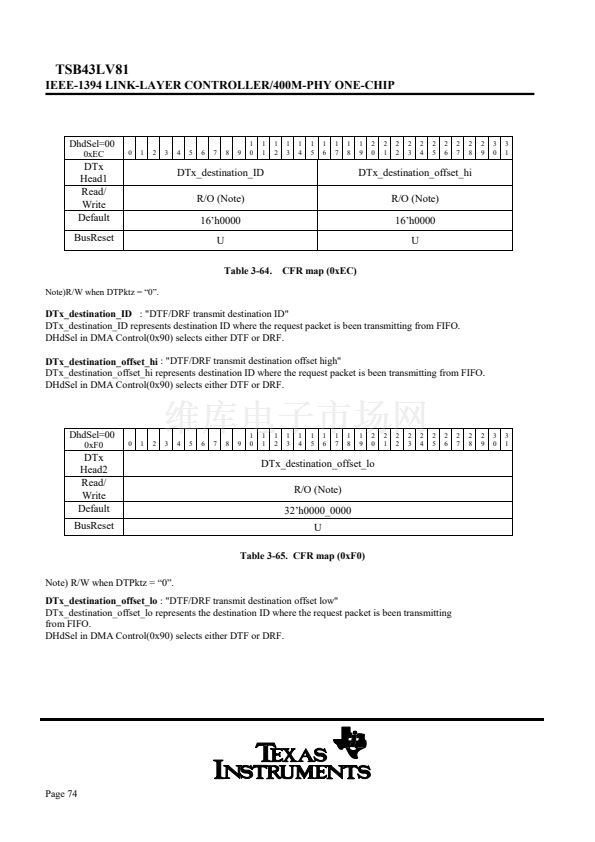

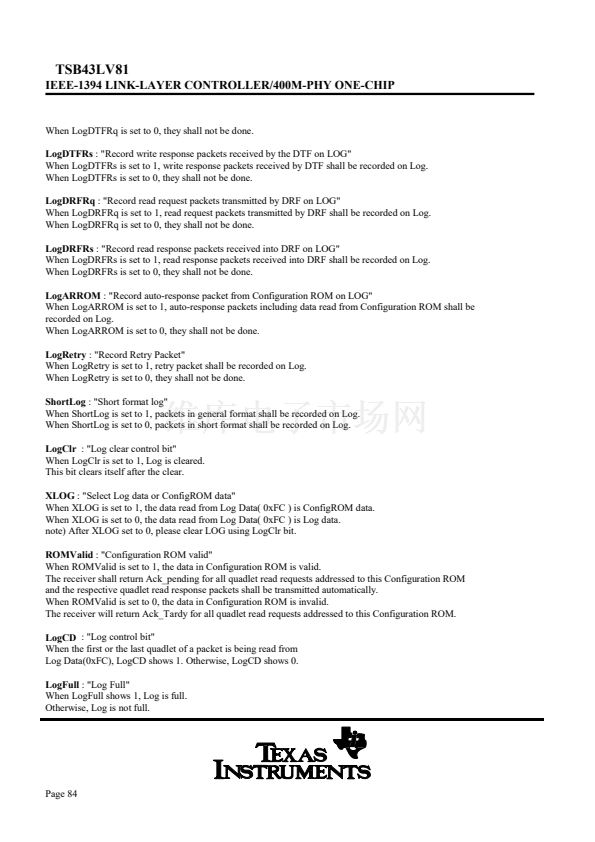

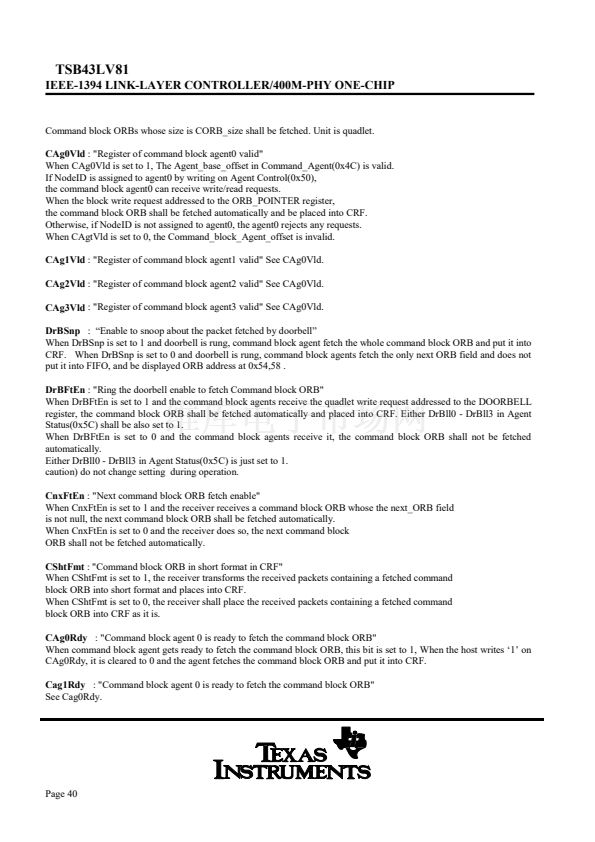

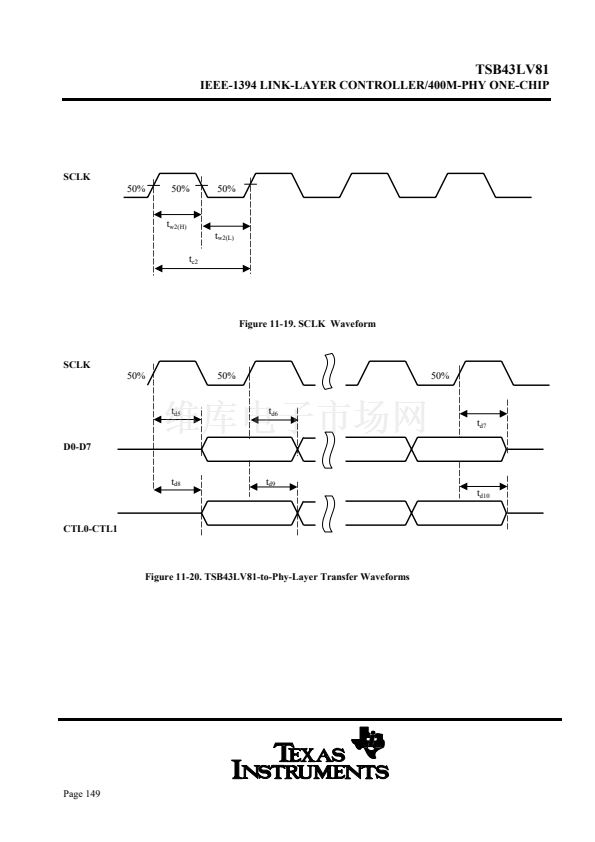

IEEE-1394 LINK-LAYER CONTROLLER/400M-PHY ONE-CHIP

TSB43LV81

SLLS403-December 1999

鈥?/div>

Fully Interoperable with FireWire鈩?/div>

Implementation of IEEE-1394 (1995) and

IEEE1394.a compliant

Interfaces Directly to Texas Instruments

TSB11LV01,TSB21LV03 and TSB41LV0X

Physical Layer Devices (100/200/400 Mbps) by

AUX I/O for more port or Isolation

Single 3.3V Supply Operation with 5V Tolerance

using 5V bias pins.

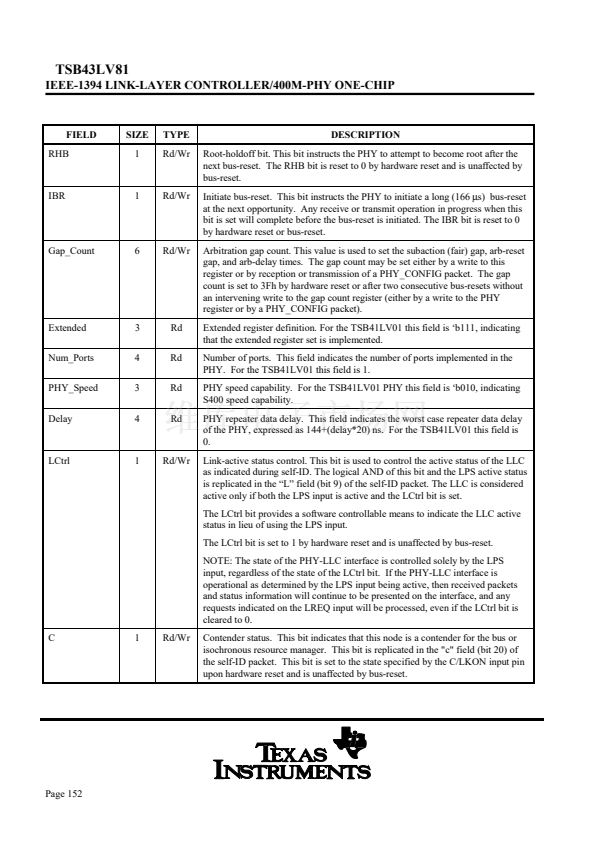

400M-PHY One port integrated

Automated Read Response for Config-ROM

registers

Automated Single Retry Protocol and Split

Transaction control

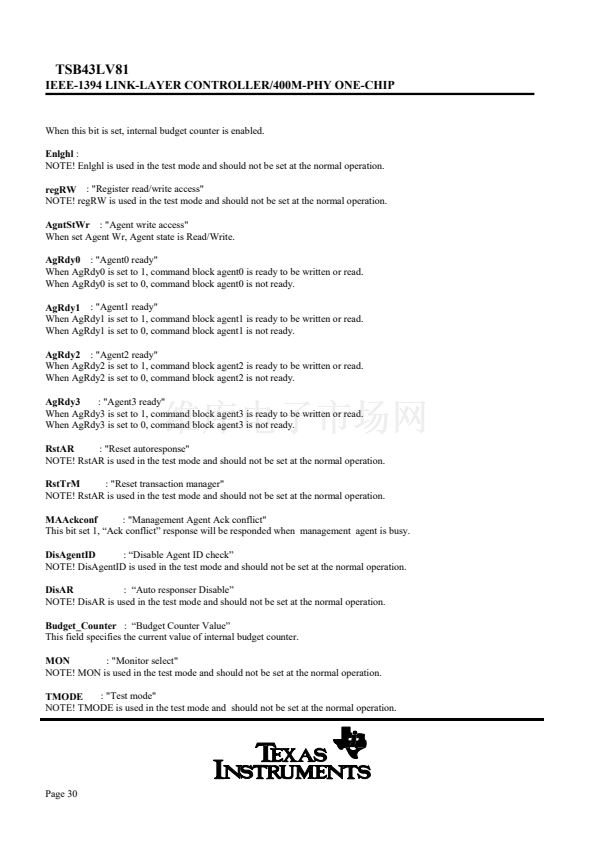

Support up to 4 initiators by automated

Transaction and could support more by

firmware(SBP2 Protocol)

Management ORB fetch command/Linked

Command ORB fetch protocol command/Auto

address increment DMA both of direct/indirect

addressing(SBP2 Protocol)

Introduction

Description

鈥?/div>

Automated PageTable Fetch for DataTransfer

Automated Status Report to Initiator at End of

DMA

8/16Bits asynchronous/synchronous DMA I/F

include SCSI and ATAPI like handshake

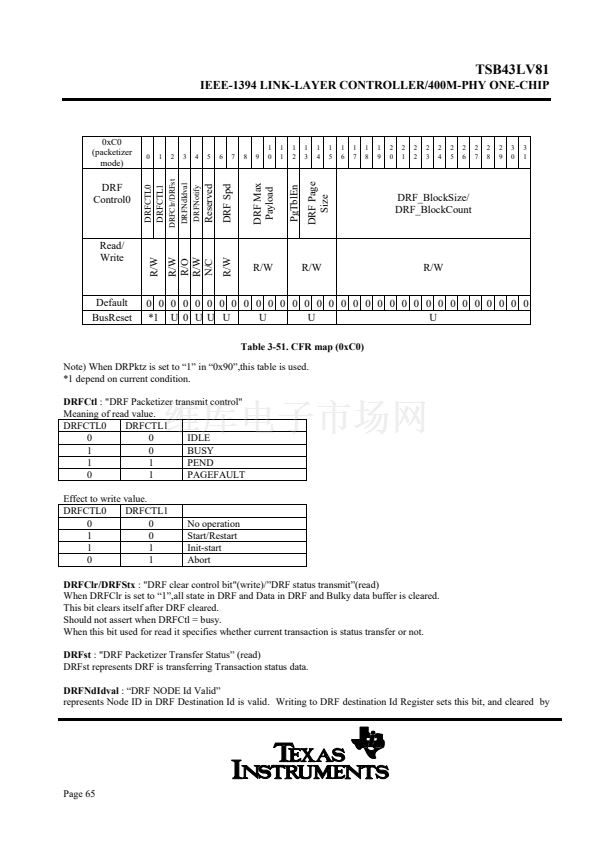

Asynchronous Transmit Data automatic

Packetizer DMA/Asynchronous Data Fetch and

dePacketizer DMA(Compliant to SBP2

requirements)

8/16bits Data/Address multiplex Microcontroler

and 8/16bits separated Data/Address bus

3RAM configuration can support High

performance for command exchange and DMA

Asynchronous Command FIFO

Config ROM/LOG FIFO

DMA FIFO

: 512 Bytes

: 4720Bytes

鈥?/div>

1.1.

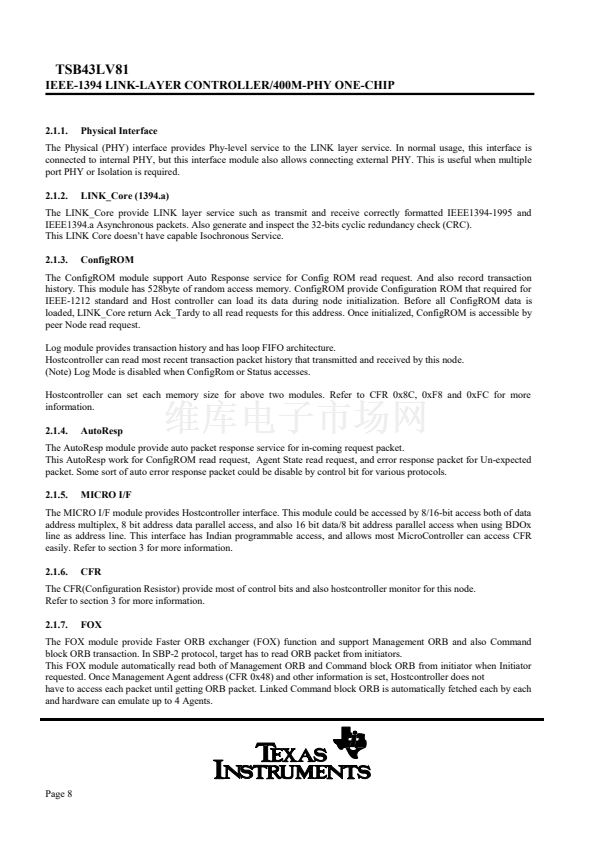

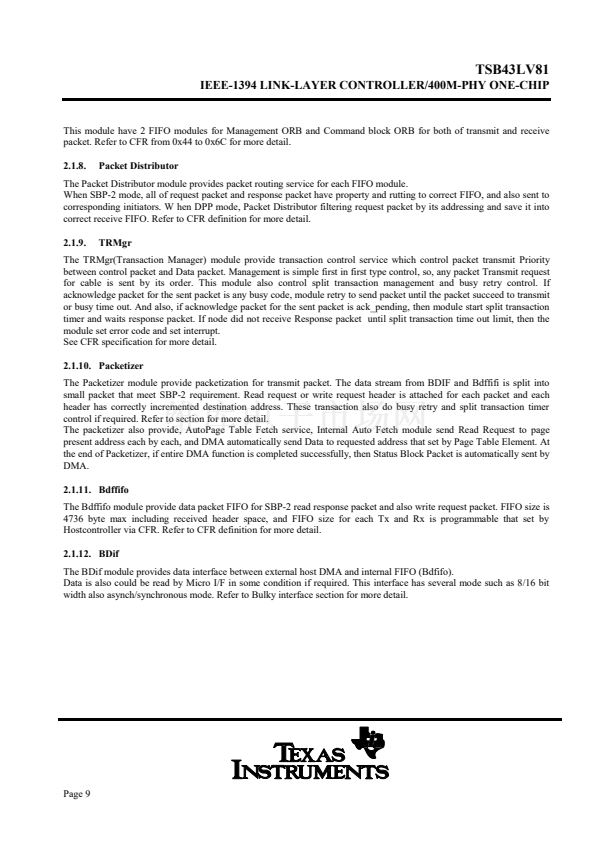

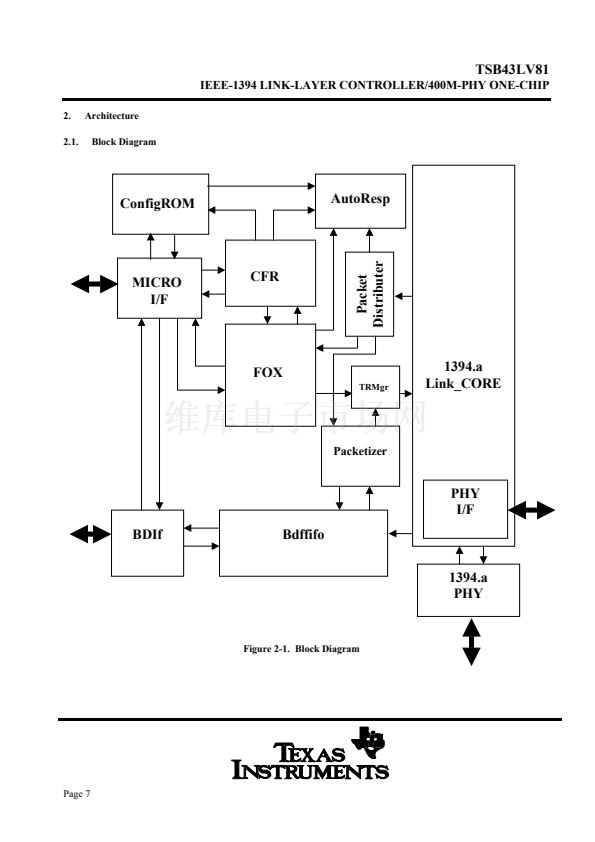

The TSB43LV81 provide a high-performance IEEE1394-1995 and IEEE1394.a interface with capability transfer and

receive up to 400Mbps proper-formatted packet. The TSB43LV81 have high-performance internal SBP-2 Protocol

engine, and it can provide high speed ORB exchange between SBP-2 initiators and own node. That means this

TSB43LV81 act as SBP-2 target node. Data packet FIFO has 4096Byte at maximum and Command FIFO has 512Byte at

maximum.

The TSB43LV81 can be used for another purpose such as DPP (Direct Printer Protocol) by address sorting for received

packet. Address filtering for in coming write request packet can correctly sort data packet that sent by peer DPP devices.

Both two protocols could be existing in this TSB43LV81 in same time, and internal ConfigRom CSR can correctly

response for peer Initiator or DPP device.

By above internal high performance feature, external controller can easily make SBP-2 target device and DPP devices.

This document is not intended to serve as tutorial on the 1394, SBP-2, and DPP protocol. User should refer each

documentation.

PRODUCTION DATA information is current

as of publication date. Products conform to

specifications per the terms of Texas

Instruments standard warranty. Production

processing does not necessarily include testing

of all parameters.

Copy right 漏1999, Texas Instruments Japan

Page 1
