TS925IDT Datasheet

IC型號：
TS925IDT
PDF描述：
Voltage-Feedback Operational Amplifier
文件大?。?/label>
141.65KB
PDF頁數：
15頁
芯片廠家：
ETC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TS925

RAIL TO RAIL HIGH OUTPUT CURRENT

QUAD OPERATIONAL AMPLIFIER

RAIL TO RAIL INPUT AND OUTPUT

LOW NOISE : 9nV/鈭欻z

LOW DISTORTION

HIGH OUTPUT CURRENT :

80mA

(able to drive

32鈩?/div>

loads)

HIGH SPEED :

4MHz, 1.3V/碌s

OPERATING FROM

2.7V

12V

LOW INPUT OFFSET VOLTAGE :

900碌V

max. (TS925A)

DIP16

(Plastic Package)

ADJUSTABLE PHANTOM GROUND (VCC/2)

STANDBY MODE

ESD INTERNAL PROTECTION : 2kV

LATCH-UP IMMUNITY

MACROMODEL

INCLUDED IN THIS

SPECIFICATION

SO16

(Plastic Micropackage)

DESCRIPTION

The TS925 is a RAIL TO RAIL quad BiCMOS op-

erational amplifier optimized and fully specified for

3V and 5V operation.

High output current allows low load impedances to

be driven. An internal low impedance PHANTOM

GROUND eliminates the need for an external ref-

erence voltage or biasing arrangement.

The TS925 exhibits a very low noise, low distor-

tion and high output current making this device an

excellent choice for high quality, low voltage or

battery operated audio/telecom systems.

The device is stable for capacitive loads up to

500pF.

When the STANDBY mode is enabled, the total

consumption drops to 6碌A(chǔ) (V

= 3V).

APPLICATIONS

TSSOP16

(Thin Shrink Small Outline Package)

ORDER CODE

Part Number

TS925I

Temperature

Range

-40擄C, +125擄C

Package

鈥?/div>

N =

Dual in Line Package (DIP)

D =

Small Outline Package (SO) - also available in Tape & Reel (DT)

P =

Thin Shrink Small Outline Package (TSSOP) - only available

in Tape & Reel (PT)

PIN CONNECTIONS

(top view)

Output 1

Inverting

Input 1

Non-inverting

Input 1

Output 4

Inverting

Input 4

Non-inverting

Input 4

Output 2

Phantom ground

February 2001

Headphone amplifier

Soundcard amplifier, piezoelectric speaker

MPEG boards, multimedia systems, ...

Cordless telephones and portable communi-

cation equipment

Line driver, buffer

Instrumentation with low noise as key factor

Non-inverting

Input 2

Inverting

Input 2

Non-inverting

Input 3

Inverting

Input 3

Output 3

Stdby

1/15

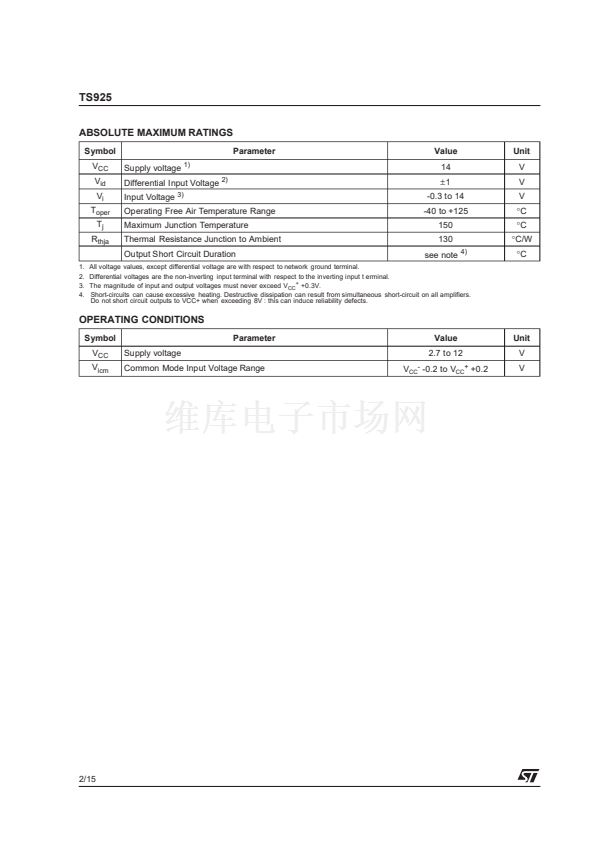

其它有關文件
TS925 View All Specifications
標準包裝
1
類別
集成電路 (IC)
家庭
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
系列
-
放大器類型
通用
電路數
4
輸出類型
滿擺幅
轉換速率
1.3 V/µs
增益帶寬積
4MHz
-3db帶寬
-
電流 - 輸入偏壓
15nA
電壓 - 輸入偏移
3000µV
電流 - 電源
6mA
電流 - 輸出 / 通道
80mA
電壓 - 電源，單路/雙路(±)
2.7 V ~ 12 V
工作溫度
-40°C ~ 125°C
安裝類型
表面貼裝
封裝/外殼
16-SOIC（0.154"，3.90mm 寬）
供應商設備封裝
16-SO
包裝
Digi-Reel®
其它名稱
497-6779-6
