TS924

RAIL TO RAIL

HIGH OUTPUT CURRENT

QUAD OPERATIONAL AMPLIFIER

.

RAIL TO RAIL INPUT AND OUTPUT

LOW NOISE :

9nV/鈭?/div>

錚ワ％

錚ワ％錚?/div>

錚?/div>

鈭?/div>

Hz

LOW DISTORTION

HIGH OUTPUT CURRENT :

80mA

(able to drive 32鈩?loads)

HIGH SPEED :

4MHz 1.3V/碌s

OPERATING FROM

2.7V to 12V

LOW INPUT OFFSET VOLTAGE :

900碌V max. (TS924A)

ESD INTERNAL PROTECTION : 2KV

LATCH-UP IMMUNITY

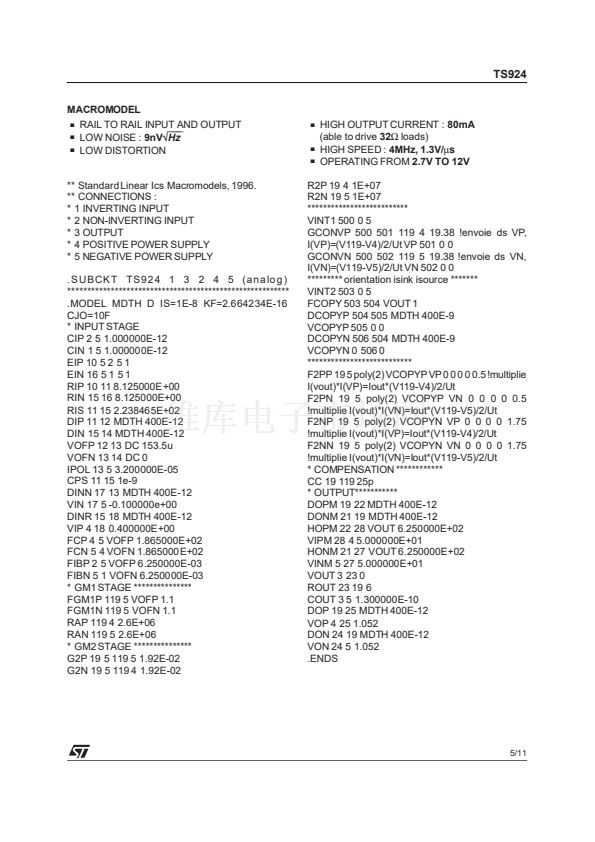

MACROMODEL INCLUDED IN THIS

SPECIFICATION

N

DIP14

(Plastic Package)

D

SO14

(Plastic Micropackage)

P

TSSOP14

(Thin Shrink Small Outline Package)

ORDER CODES

Part Number

TS924I

Temperature Range

-40, +125

o

C

Package

N

鈥?/div>

D

鈥?/div>

P

鈥?/div>

DESCRIPTION

The TS924 is a RAIL TO RAIL quad BiCMOS

operational amplifier optimized and fully specified

for 3V and 5V operations.

It exhibits a very low noise, low distortion and high

output current capability making this device an

excellent choice for high quality, low voltage or

battery operated audio systems.

The TS924 remains stable when charging the out-

put with capacitive loads up to 500pF.

PIN CONNECTIONS

(top view)

Output 1 1

Inve rting Input 1 2

Non-inve rting Input 1 3

V

CC

+ 4

Non-inve rting Input 2 5

Inve rting Input 2 6

Output 2 7

+

-

+

-

+

-

+

14 Output 4

13 Inve rting Input 4

12 Non-inve rting Input 4

11 V

CC

-

10 Non-inve rting Input 3

9

8

Inve rting Input 3

Output 3

.

APPLICATIONS

headphone amplifier

sound cards, piezoelectric speaker

MPEG boards, multimedia systems, ...

line driver, buffer

cordless telephones and portable communica-

tion equipment

instrumentation with low noise as key factor

June 1998

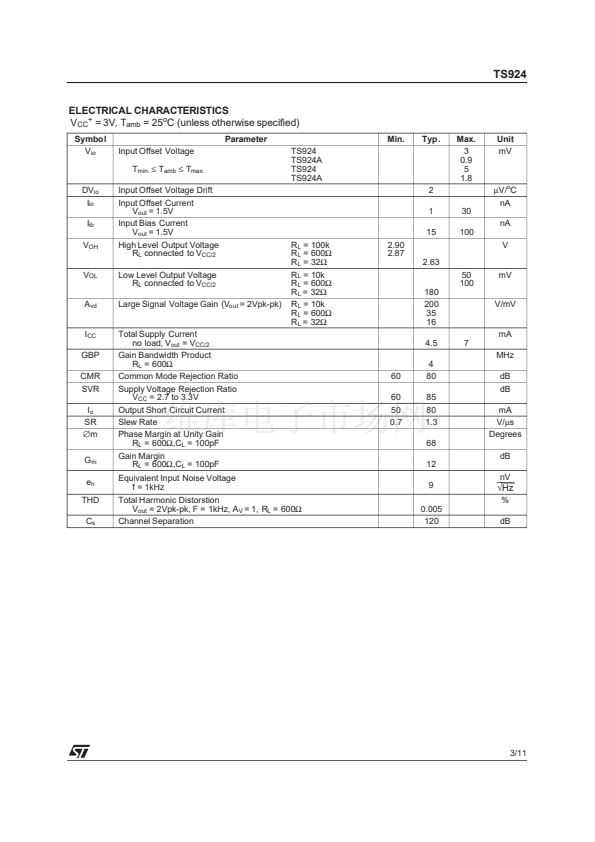

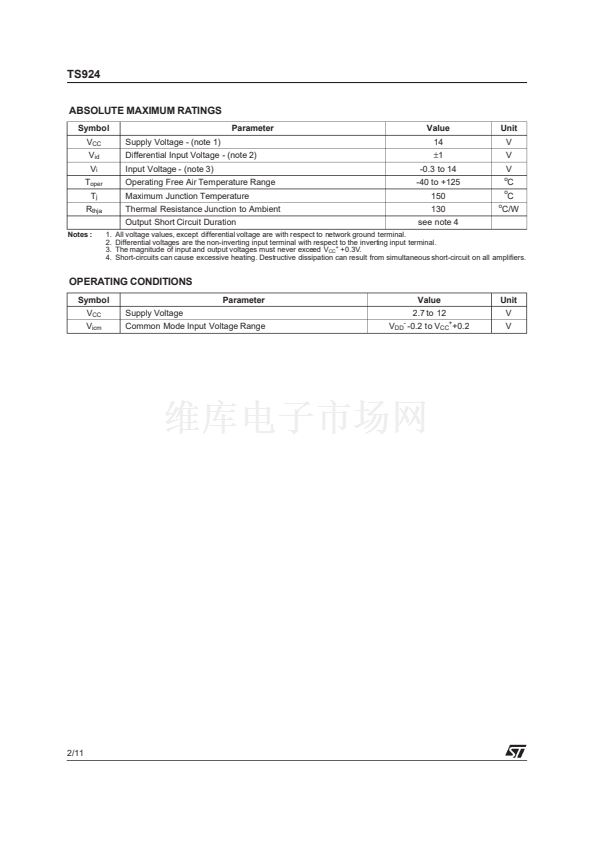

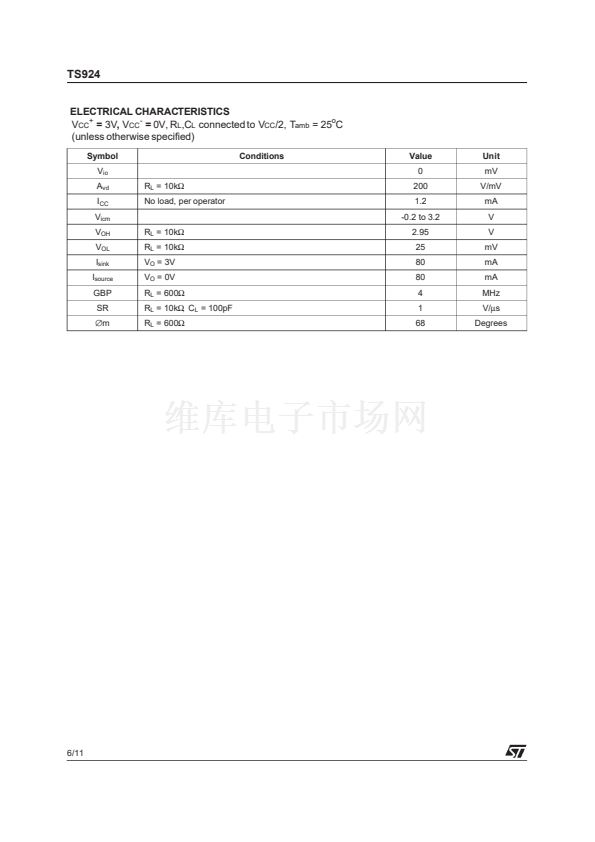

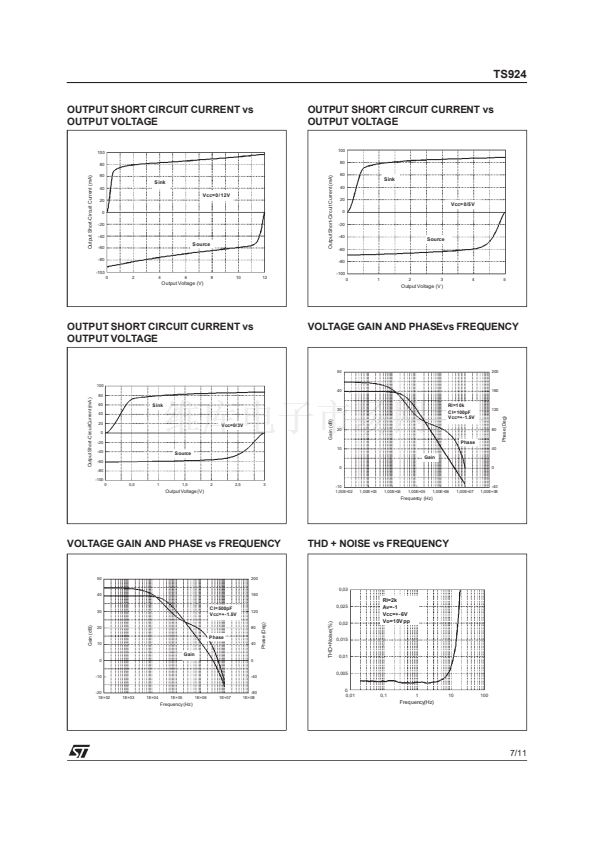

1/11

其它有關文件
TS924 View All Specifications
標準包裝
1
類別
集成電路 (IC)
家庭
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
系列
-
放大器類型
通用
電路數(shù)
4
輸出類型
滿擺幅
轉換速率
1.3 V/µs
增益帶寬積
4MHz
-3db帶寬
-
電流 - 輸入偏壓
15nA
電壓 - 輸入偏移
3000µV
電流 - 電源
1mA
電流 - 輸出 / 通道
80mA
電壓 - 電源，單路/雙路(±)
2.7 V ~ 12 V
工作溫度
-40°C ~ 125°C
安裝類型
表面貼裝
封裝/外殼
14-TSSOP（0.173"，4.40mm 寬）
供應商設備封裝
14-TSSOP
包裝
Digi-Reel®
