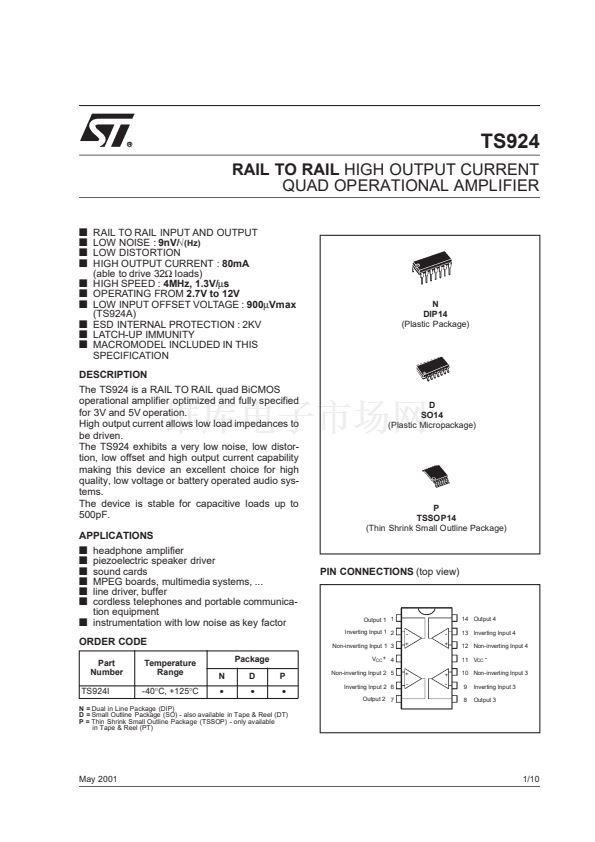

TS924

RAIL TO RAIL

HIGH OUTPUT CURRENT

QUAD OPERATIONAL AMPLIFIER

RAIL TO RAIL INPUT AND OUTPUT

LOW NOISE :

9nV/

鈭?Hz)

LOW DISTORTION

HIGH OUTPUT CURRENT :

80mA

(able to drive 32鈩?loads)

HIGH SPEED :

4MHz, 1.3V/碌s

OPERATING FROM

2.7V to 12V

LOW INPUT OFFSET VOLTAGE :

900碌Vmax

(TS924A)

ESD INTERNAL PROTECTION : 2KV

LATCH-UP IMMUNITY

MACROMODEL INCLUDED IN THIS

SPECIFICATION

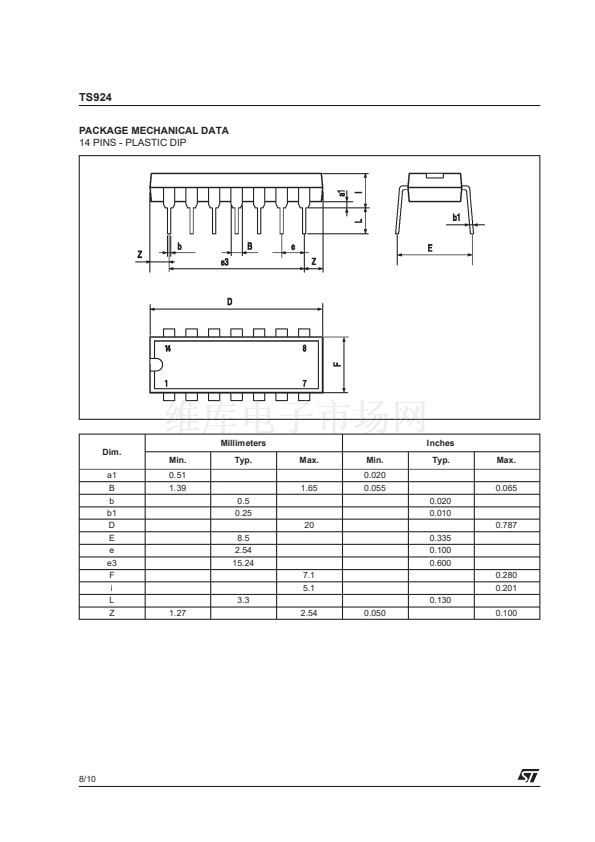

DIP14

(Plastic Package)

DESCRIPTION

The TS924 is a RAIL TO RAIL quad BiCMOS

operational amplifier optimized and fully specified

for 3V and 5V operation.

High output current allows low load impedances to

be driven.

The TS924 exhibits a very low noise, low distor-

tion, low offset and high output current capability

making this device an excellent choice for high

quality, low voltage or battery operated audio sys-

tems.

The device is stable for capacitive loads up to

500pF.

APPLICATIONS

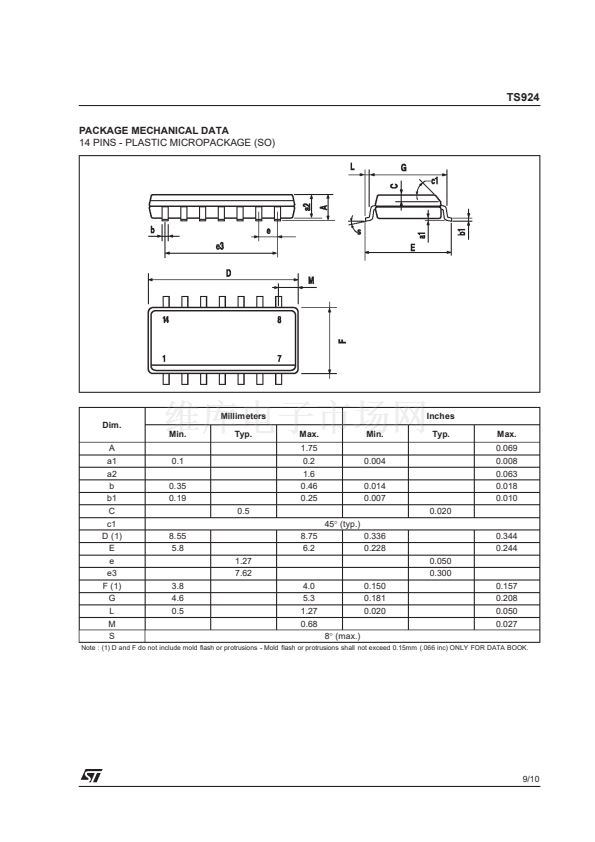

SO14

(Plastic Micropackage)

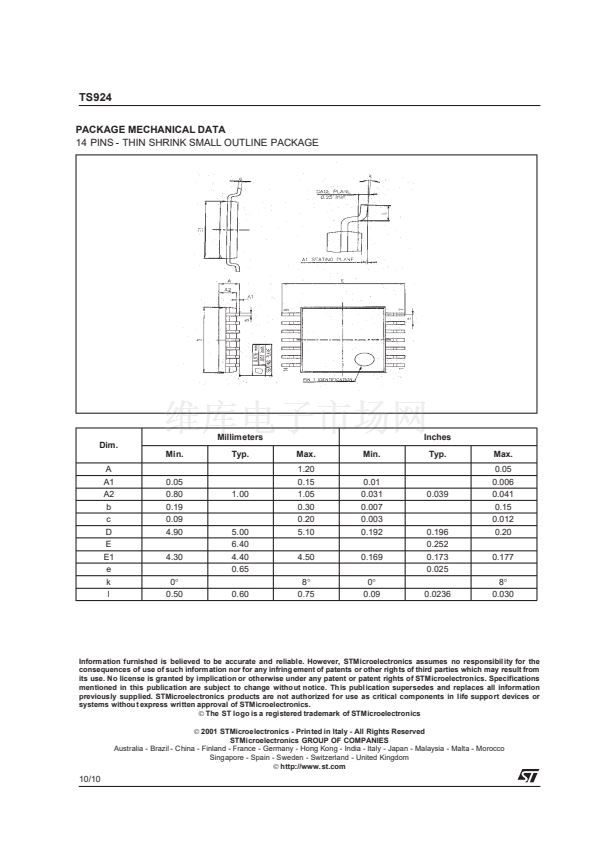

TSSOP14

(Thin Shrink Small Outline Package)

headphone amplifier

piezoelectric speaker driver

sound cards

MPEG boards, multimedia systems, ...

line driver, buffer

cordless telephones and portable communica-

tion equipment

instrumentation with low noise as key factor

ORDER CODE

Part

Number

TS924I

Temperature

Range

-40擄C, +125擄C

Package

鈥?/div>

PIN CONNECTIONS

(top view)

Output 1 1

Inverting Input 1 2

Non-inverting Input 1 3

+ 4

Non-inverting Input 2 5

Inverting Input 2 6

Output 2 7

14 Output 4

13 Inverting Input 4

12 Non-inverting Input 4

11 V

10 Non-inverting Input 3

Inverting Input 3

Output 3

N =

Dual in Line Package (DIP)

D =

Small Outline Package (SO) - also available in Tape & Reel (DT)

P =

Thin Shrink Small Outline Package (TSSOP) - only available

in Tape & Reel (PT)

May 2001

1/10

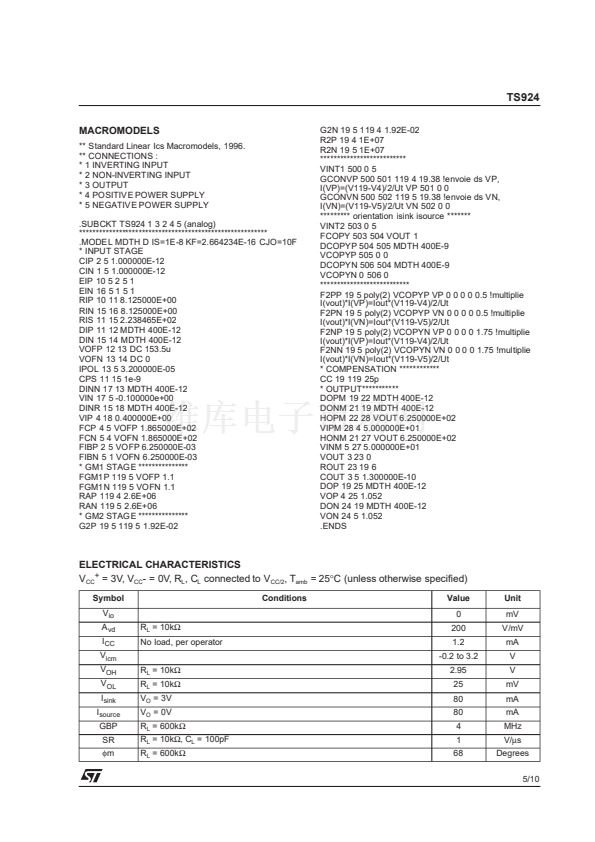

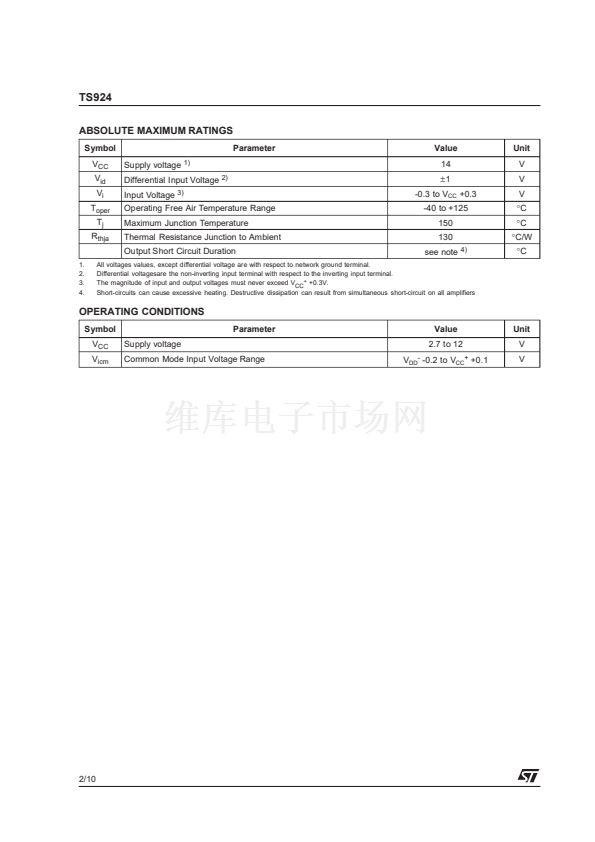

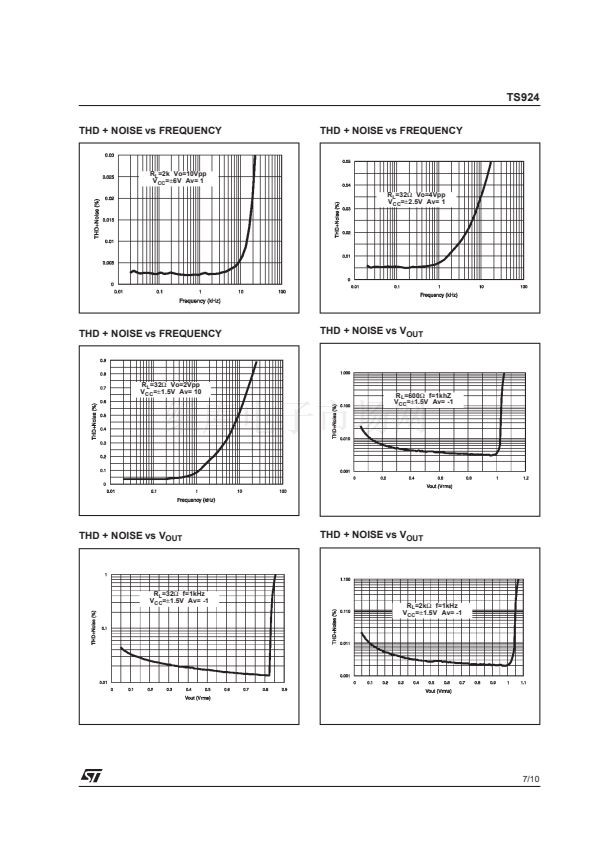

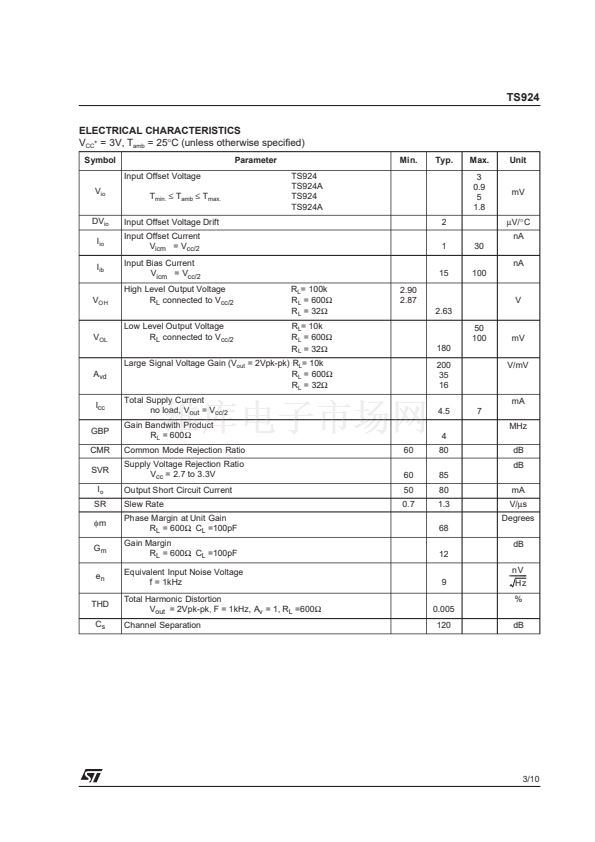

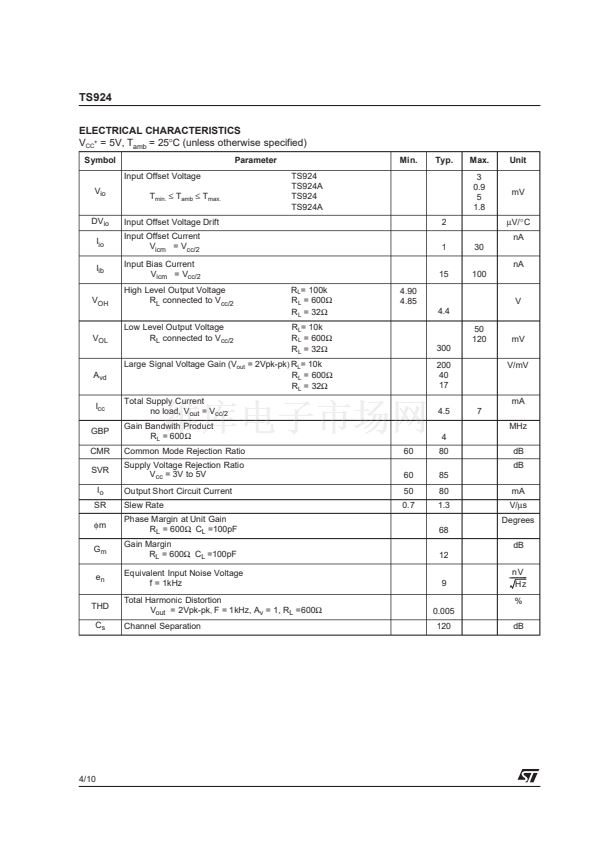

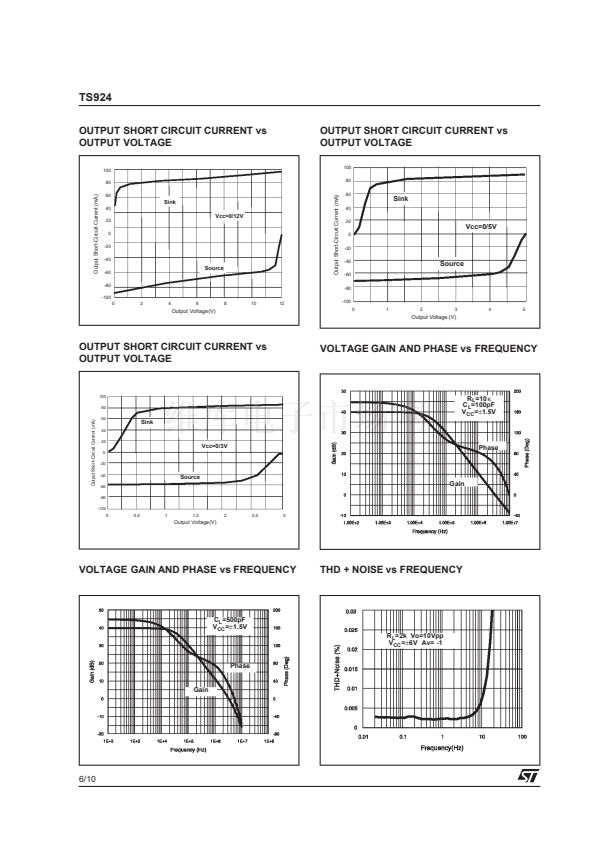

其它有關文件
TS924 View All Specifications
標準包裝
50
類別
集成電路 (IC)
家庭
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
系列
-
放大器類型
通用
電路數
4
輸出類型
滿擺幅
轉換速率
1.3 V/µs
增益帶寬積
4MHz
-3db帶寬
-
電流 - 輸入偏壓
15nA
電壓 - 輸入偏移
3000µV
電流 - 電源
1mA
電流 - 輸出 / 通道
80mA
電壓 - 電源，單路/雙路(±)
2.7 V ~ 12 V
工作溫度
-40°C ~ 125°C
安裝類型
表面貼裝
封裝/外殼
14-SOIC（0.154"，3.90mm 寬）
供應商設備封裝
14-SO
包裝
管件
其它名稱
497-6778-5TS924ID-ND
