TS922IPT Datasheet

IC型號：
TS922IPT
PDF描述：
IC-SM-DUAL RAIL/RAIL OP AMP
文件大?。?/label>
129.86KB
PDF頁數：
11頁
芯片廠家：
ETC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

TS922

RAIL TO RAIL

HIGH OUTPUT CURRENT

DUAL OPERATIONAL AMPLIFIER

RAIL TO RAIL INPUT AND OUTPUT

LOW NOISE :

9nV/鈭?/div>

錚ワ％錚?)

錚ワ％錚ワ％

錚?錚?/div>

鈭?

Hz)

LOW DISTORTION

HIGH OUTPUT CURRENT :

80mA

(able to drive 32鈩?loads)

HIGH SPEED :

4MHz, 1.3V/碌s

OPERATING FROM

2.7V to 12V

LOW INPUT OFFSET VOLTAGE : 900碌V max

(TS922A)

ESD INTERNAL PROTECTION : 2KV

LATCH-UP IMMUNITY

MACROMODEL INCLUDED IN THIS

SPECIFICATION

DIP8

(Plastic Package)

SO8

(Plastic Micropackage)

TSSOP8

(Thin Shrink Small Outline Package)

ORDER CODES

Part Number

TS922I

Temperature Range

-40, +125

Package

鈥?/div>

DESCRIPTION

The TS922 is a RAIL TO RAIL dual BiCMOS

operational amplifier optimized and fully specified

for 3V and 5V operations.

It exhibits a very low noise, low distortion and high

output current capability making this device an

excellent choice for high quality, low voltage or

battery operated audio systems.

The TS922 remains stable when charging the out-

put with capacitive loads up to 500pF.

PIN CONNECTIONS

(top view)

Output 1

Inverting Input 1

Output 2

Inverting Input 2

Non-inverting Input 2

Non-inverting Input 1

APPLICATIONS

headphone amplifier

piezoelectric speaker

sound cards, multimedia systems

line driver, actuator driver

servo amplifier

mobile phone and portable equipment

instrumentation with low noise as key factor

June 1998

1/11

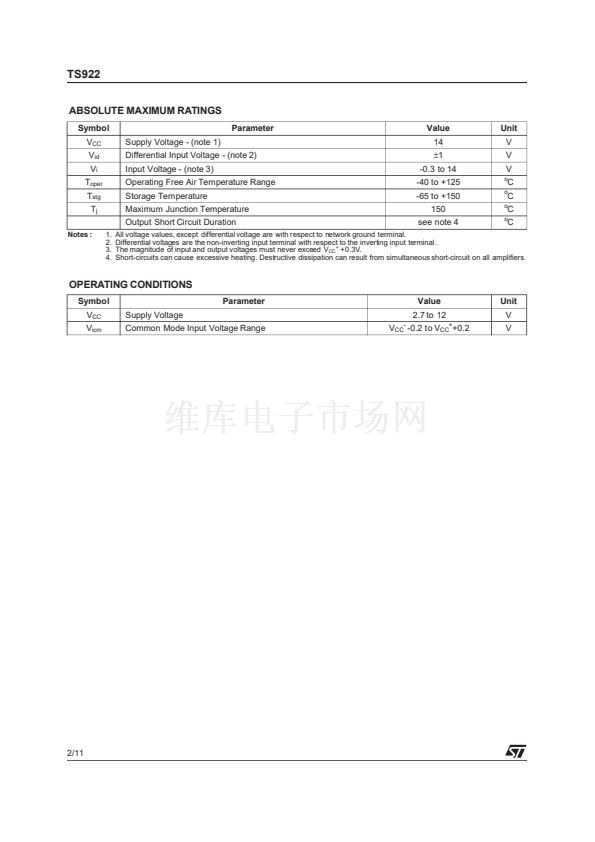

其它有關文件
TS922 View All Specifications
標準包裝
1
類別
集成電路 (IC)
家庭
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
系列
-
放大器類型
通用
電路數
2
輸出類型
滿擺幅
轉換速率
1.3 V/µs
增益帶寬積
4MHz
-3db帶寬
-
電流 - 輸入偏壓
15nA
電壓 - 輸入偏移
3000µV
電流 - 電源
2mA
電流 - 輸出 / 通道
80mA
電壓 - 電源，單路/雙路(±)
2.7 V ~ 12 V
工作溫度
-40°C ~ 125°C
安裝類型
表面貼裝
封裝/外殼
8-TSSOP（0.173"，4.40mm 寬）
供應商設備封裝
8-TSSOP
包裝
Digi-Reel®
其它名稱
497-6619-6
