TS922ID Datasheet

IC型號：
TS922ID
PDF描述：
OP-AMP|DUAL|BICMOS|SOP|8PIN|PLASTIC
文件大?。?/label>
110.73KB
PDF頁數：
10頁
芯片廠家：
ETC

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TS922

RAIL TO RAIL

HIGH OUTPUT CURRENT

DUAL OPERATIONAL AMPLIFIER

RAIL TO RAIL INPUT AND OUTPUT

LOW NOISE :

9nV/

鈭?Hz)

LOW DISTORTION

HIGH OUTPUT CURRENT :

80mA

(able to drive 32鈩?loads)

HIGH SPEED :

4MHz, 1V/碌s

OPERATING FROM

2.7V to 12V

LOW INPUT OFFSET VOLTAGE :

900碌Vmax

(TS922A)

ESD INTERNAL PROTECTION : 2KV

LATCH-UP IMMUNITY

MACROMODEL INCLUDED IN THIS

SPECIFICATION

DIP8

(Plastic Package)

DESCRIPTION

The TS922 is a RAIL TO RAIL dual BiCMOS

operational amplifier optimized and fully specified

for 3V and 5V operation.

High output current allows low load impedances to

be driven.

The TS922 exhibits a very low noise, low distor-

tion, low offset and high output current capability

making this device an excellent choice for high

quality, low voltage or battery operated audio sys-

tems.

The device is stable for capacitive loads up to

500pF.

APPLICATIONS

SO8

(Plastic Micropackage)

TSSOP8

(Thin Shrink Small Outline Package)

headphone amplifier

piezoelectric speaker driver

sound cards, multimedia systems

line driver, actuator driver

servo amplifier

mobile phone and portable equipment

instrumentation with low noise as key factor

PIN CONNECTIONS

(top view)

ORDER CODE

Part

Number

TS922I

Temperature

Range

-40擄C, +125擄C

Package

鈥?/div>

Output 1

Inverting Input 1

Non-inve rting Input 1

Output 2

Inve rting Input 2

Non-inve rting Input 2

N =

Dual in Line Package (DIP)

D =

Small Outline Package (SO) - also available in Tape & Reel (DT)

P =

Thin Shrink Small Outline Package (TSSOP) - only available

in Tape & Reel (PT)

February 2001

1/10

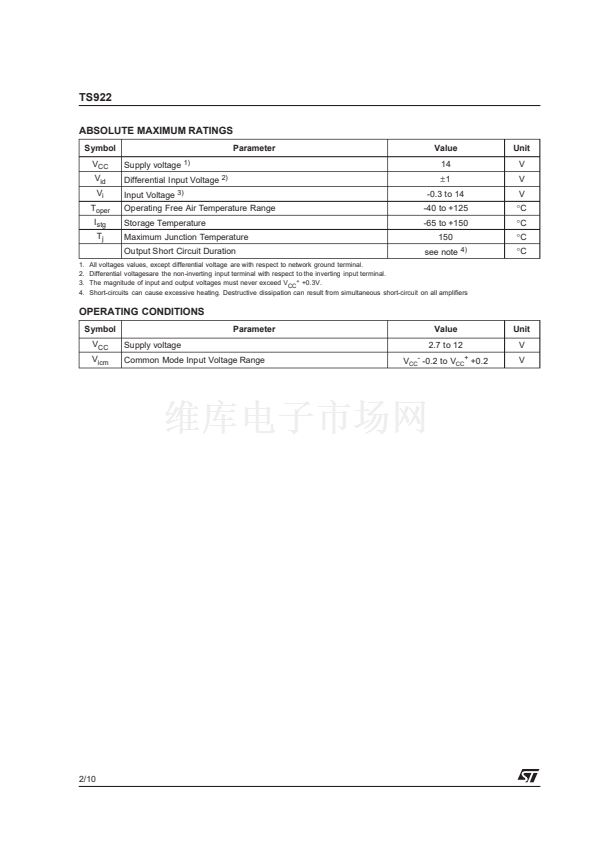

其它有關文件
TS922 View All Specifications
標準包裝
100
類別
集成電路 (IC)
家庭
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
系列
-
放大器類型
通用
電路數
2
輸出類型
滿擺幅
轉換速率
1.3 V/µs
增益帶寬積
4MHz
-3db帶寬
-
電流 - 輸入偏壓
15nA
電壓 - 輸入偏移
3000µV
電流 - 電源
2mA
電流 - 輸出 / 通道
80mA
電壓 - 電源，單路/雙路(±)
2.7 V ~ 12 V
工作溫度
-40°C ~ 125°C
安裝類型
表面貼裝
封裝/外殼
8-SOIC（0.154"，3.90mm 寬）
供應商設備封裝
8-SO
包裝
管件
其它名稱
497-3048-5
