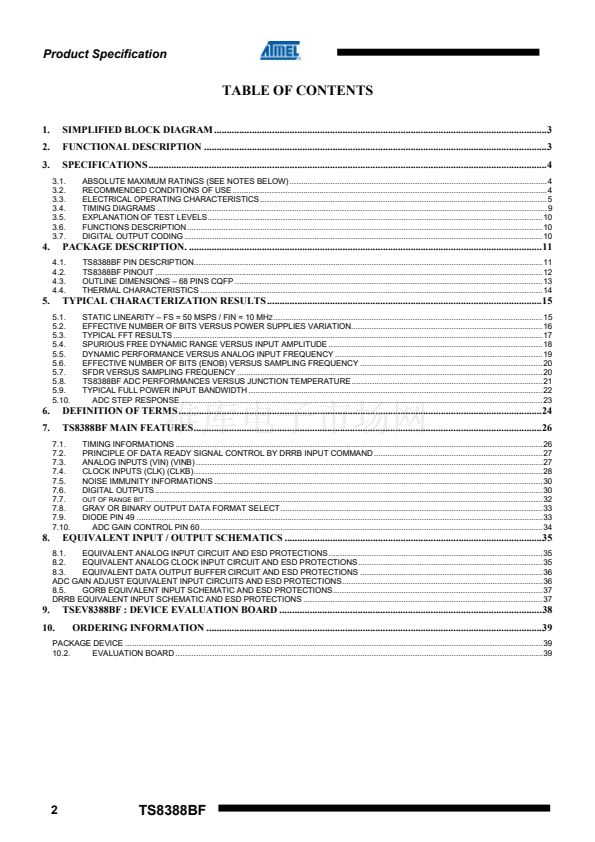

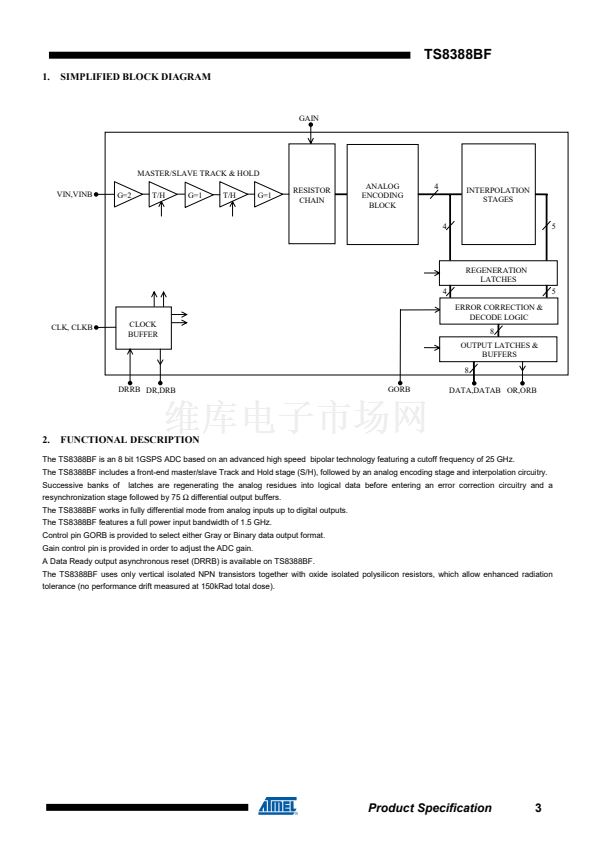

TS8388BMFB/Q Datasheet

  • TS8388BMFB/Q

  • A/D CONVERTER

  • 40頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MAIN FEATURES
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
8-bit resolution.
ADC gain adjust.
1.5 GHz full power input bandwidth.
1 Gsps (min) sampling rate.
SINAD = 44.3 dB (7.2 Effective Bits) SFDR = 58 dBc
@ F
S
= 1 Gsps, F
IN
= 20 MHz :
SINAD = 42.9 dB (7.0 Effective Bits) SFDR = 52 dBc
@ F
S
= 1 Gsps, F
IN
= 500 MHz :
SINAD = 40.3dB (6.8 Effective Bits) SFDR = 50 dBc
@ F
S
= 1 Gsps, F
IN
= 1000 MHz (-3 dB FS)
2-tone IMD : -52dBc (489 MHz, 490 MHz) @ 1GSPS.
DNL = 0.3 LSB
INL = 0.7 LSB.
Low Bit Error Rate (10
-13
) @ 1 Gsps
Very low input capacitance : 3 pF
500 mVpp differential or single-ended analog inputs.
Differential or single-ended 50鈩?ECL compatible clock inputs.
ECL or LVDS/HSTL output compatibility.
Data ready output with asynchronous reset.
Gray or Binary selectable output data ; NRZ output mode.
Power consumption :
3.4 W @ Tj = 70擄C typical
ADC 8-bit 1 Gsps
TS8388BF
!
Radiation tolerance oriented design (150 Krad (Si) measured).
APPLICATIONS
!
!
!
!
Digital Sampling Oscilloscopes.
Satellite receiver.
Electronic countermeasures / Electronic warfare.
Direct RF down鈥揷onversion.
1/ Die form : JTS8388B
2/ Evaluation board :
TSEV8388BF
3/ Demultiplexer :
TS81102G0 : companion device available
SCREENING
!
Atmel-Grenoble standard screening level
!
Mil-PRF-38535, QML level Q for package version, DSCC 5962-0050401QYC
!
Temperature range: up to -55擄C < Tc ; Tj < +125擄C
DESCRIPTION
The TS8388BF is a monolithic 8鈥揵it analog鈥搕o鈥揹igital converter, designed for
digitizing wide bandwidth analog signals at very high sampling rates of up to 1
Gsps.
The TS8388BF is using an innovative architecture, including an on chip Sample
and Hold (S/H), and is fabricated with an advanced high speed bipolar process.
The on鈥揷hip S/H has a 1.5 GHz full power input bandwidth, providing excellent
dynamic performance in undersampling applications (High IF digitizing).
January 2002
F Suffix : CQFP 68
Ceramic Quad Flat Pack
Product Specification
