TS836

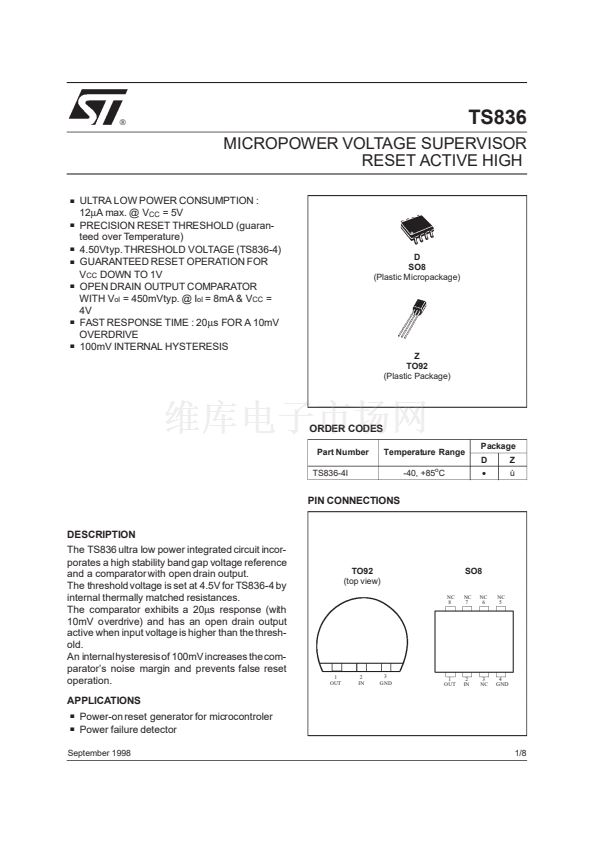

MICROPOWER VOLTAGE SUPERVISOR
RESET ACTIVE HIGH
.
.
.
.
.
.
.
ULTRA LOW POWER CONSUMPTION :
12碌A(chǔ) max. @ V
CC
= 5V
PRECISION RESET THRESHOLD (guaran-
teed over Temperature)
4.50Vtyp. THRESHOLD VOLTAGE (TS836-4)
GUARANTEED RESET OPERATION FOR
V
CC
DOWN TO 1V
OPEN DRAIN OUTPUT COMPARATOR
WITH V
ol
= 450mVtyp. @ I
ol
= 8mA & V
CC
=
4V
FAST RESPONSE TIME : 20碌s FOR A 10mV
OVERDRIVE
100mV INTERNAL HYSTERESIS
D
SO8
(Plastic Micropackage)
Z
TO92
(Plastic Package)
ORDER CODES
Part Number
TS836-4I
Temperature Range
-40, +85 C
o
Package
D
鈥?/div>
Z
霉
PIN CONNECTIONS
DESCRIPTION
The TS836 ultra low power integrated circuit incor-
porates a high stability band gap voltage reference
and a comparator with open drain output.
The threshold voltage is set at 4.5V for TS836-4 by
internal thermally matched resistances.
The comparator exhibits a 20碌s response (with
10mV overdrive) and has an open drain output
active when input voltage is higher than the thresh-
old.
An internalhysteresisof 100mV increases the com-
parator鈥檚 noise margin and prevents false reset
operation.
APPLICATIONS
Power-on reset generator for microcontroler
Power failure detector
1/8
TO92
(top view)
NC
8
SO8
NC
7
NC
6
NC
5
1
OUT
2
IN
3
GND
1
OUT
2
IN
3
NC
4
GND
.
.
September 1998
