TS SERIES
DESIGN
FEATURES
q
High or low level sensing
q
Operation independent of
THERMISTOR
SENSORS
mounting attitude
q
Will sense a variety of
mediums including Air
q
Operating temperature
range up to 100潞C
q
Glass filled polypropylene
or Nylon 6.6 material
q
Easily installed even in
confined spaces
q
Universal kit for internal
or external fitting
q
Interface option
Applications
Low coolant level sensing
Oil level sensing
Boiler level warning
Solution monitoring
Flood control
Reservoir high or low level sensing
Industries
Automobile
Automobile, plant and equipment
Catering, vending machines
Chemical, plating, process engineering
Domestic appliances
Automobile, medical equipment

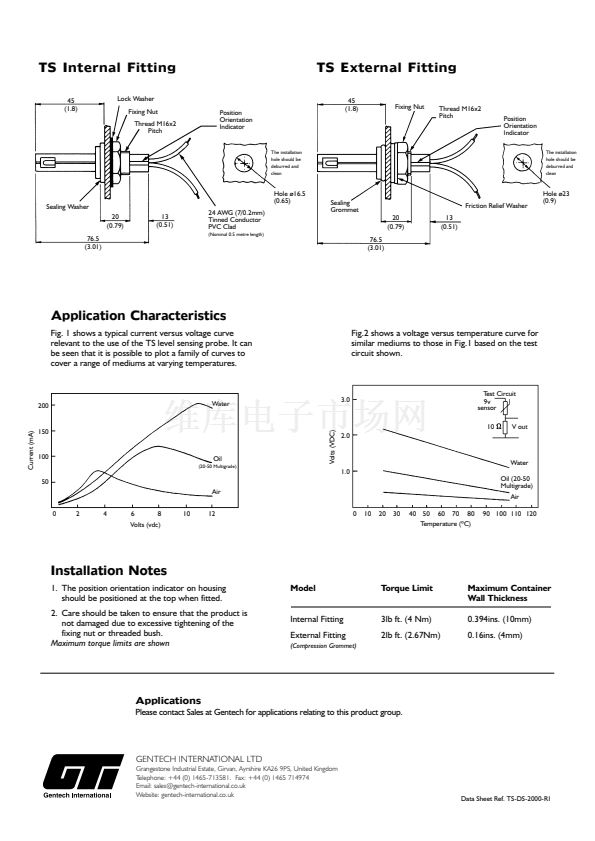

Thermistor Probe
Technical Specification
Working voltage
maximum
minimum
12.0v dc
9.0v dc
65.0 ohms
-20潞C to +100潞C
Resistance at 20潞C average
Operating temperature range
(depending on sensing medium)
Typical Response Times
Air
Oil
Still to moving @ 20潞C
Moving to still @ 20潞C
Air to oil @ 20潞C
Oil to air @ 20潞C
Air to oil @ 70潞C
Oil to air @ 70潞C
Air to water @ 94潞C
Water to air @ 94潞C
Air to water @ 5潞C
Water to air @ 5潞C
<1 sec
<1 sec
<1 sec
10 sec
<1 sec
3 sec
<1 sec
10 sec
<1 sec
30 sec
Environmental Specifications
Glass filled
Polypropylene Nylon 6.6
Operating temperature Range
-20潞C to
+100潞C
-20潞C to
+100潞C
Water
Plastic Housing
Water absorption of eqillibrium
at 20潞C and 100% RH
at 100潞C and 100% RH
Thermistor probes may
attain a surface temperature
sufficient to cause burns
if touched
Heat distortion temperature
4.5kG/cm2 (67.6 (psig)
<0.09%
<0.09%
5.6%
5.6%
Fluid Viscosity
When the application involves highly viscous fluids,
the fluid immediately around the thermistor probe
will heat up thus producing an incorrect result when
compared with the temperature of the bulk of the
fluid. This effect would be shown as a levelling of
the voltage/temperature characteristic at lower
temperatures. Fluids which produce sedimentary
deposits can increase the thermistor response time.
154潞C
245潞C
Detailed chemical resistance information for specific liquids is available
on request.
