TS750-TS758
6A Silicon Rectifiers
Voltage range 50-800 Volts
FEATURES
Plastic material used carries
Underwriters Laboratory Classification
94V-0
High forward current capability
Diffused junction
High surge current capability
High temperature soldering guaranteed:
260擄C/10 seconds, 0.375鈥?9.5mm) lead
length, 5lbs.(2.3kg) tension
P600
MECHANICAL DATA
Cases: Molded plastic body
Lead: Plated axial leads,
matte-tin plating
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 0.07 ounce, 2.1 grams
Dimensions in inches and (millimeters)
Pb-free lead finish (second-level interconnect).
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25擄C ambient temperature unless otherwise specified.
Single phase, half wave,60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Non-repetitive Peak Reverse Voltage
Maximum Average Forward Rectified Current at
T
A

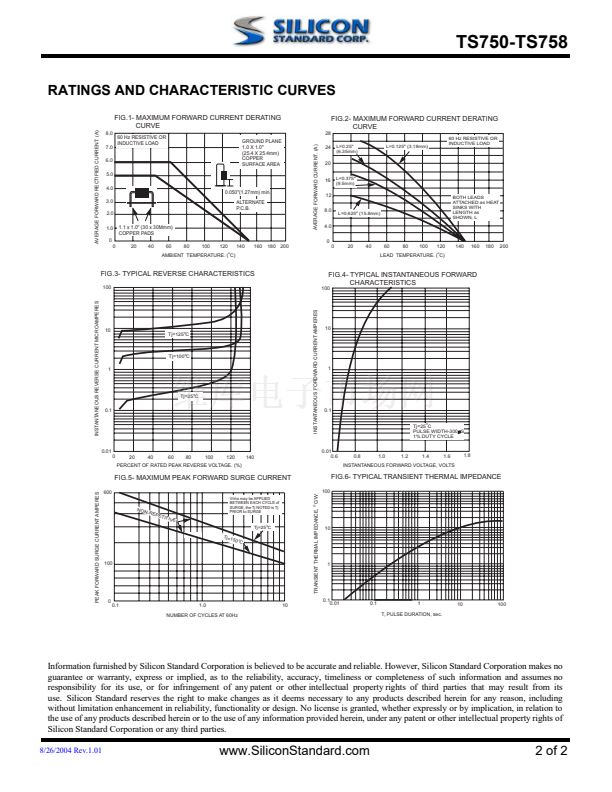

= 60擄C, P.C.B. Mounting (Fig. 1)
T
L
= 60擄C, 0.125鈥?3.18mm) Lead Length (Fig. 2)
Peak Forward Surge Current, 8.3 ms Single Half
Sine-wave Superimposed on Rated Load (JEDEC
method )
Maximum Instantaneous Forward Voltage @ 6.0A
@ 100A
Maximum DC Reverse Current @ T
A
=25擄C
at Rated DC Blocking Voltage @ T
A
=100擄C
Typical Junction Capacitance ( Note 1 )
Typical Thermal Resistance (Note 2)
Symbol
TS750 TS751 TS752 TS754 TS756 TS758
Units
V
V
V
V
A
V
RRM
V
RMS
V
DC
V
BR
I
(AV)
I
FSM
V
F
I
R
Cj
50
35
50
60
100
70
100
120
200
140
200
240
6.0
22.0
400
0.95
400
280
400
480
600
420
600
720
800
560
800
1200
A
V
R
胃
JA
R
胃
JL
Operating Junction Temperature Range
T
J
Storage Temperature Range
T
STG
Notes: 1. Measured at 1.0 MHz and
applied reverse voltage
of 4.0 Volts
2. Mount on
copper
pad, size
16mm x 16mm on P.C.B.
1.25
5.0
1000
150
20.0
4.0
-50 to +150
-50 to +150
1.30
uA
uA
pF
擄C/W
擄C
擄C
8/26/2004 Rev.1.01
www.SiliconStandard.com
1 of 2
1
2
