TS612

DUAL WIDE BAND OPERATIONAL AMPLIFIER

WITH HIGH OUTPUT CURRENT

LOW NOISE :

3nV/鈭欻z, 1.2pA/鈭欻z

HIGH OUTPUT CURRENT :

200mA

VERY LOW HARMONIC AND INTERMODU-

LATION DISTORTION

SO20 Batwing

(Plastic Micropackage)

HIGH SLEW RATE :

40V/碌s

SPECIFIED FOR

25鈩?/div>

LOAD

DESCRIPTION

The TS612 is a dual operational amplifier featur-

ing a high output current (200mA min.), large

gain-bandwidth product (130MHz) and capable of

driving a 25鈩?load with a 160mA output current at

鹵6V

power supply.

This device is particularly intended for applications

where multiple carriers must be amplified simulta-

neously with very low intermodulation products.

The TS612 is housed in SO20 batwing plastic

package for a very low thermal resistance. It is

also available in TSSOP14 plastic package. This

tiny package comes very interesting for surface

saving.

The TS612 is fitted out with Power Down function

in order to decrease the consumption.

APPLICATION

TSSOP14

(Plastic Micropackage)

PIN CONNECTIONS

(top view)

SO20batwing - Top View

Power Down1

Vcc+ 1

Invertinginput 1

Non-invertinginput1

Vcc -

Vcc-

Vcc -

Non-Invertinginput2

Invertinginput2

Output1

Vcc-

Vcc -

Vcc-

GND

ThermalHeat Tabs

connectedto -Vcc

Thermal Heat Tabs

connectedto -Vcc

Output 2

Vcc+ 2

UPSTREAM line driver for Asymmetric Digital

Subscriber Line (ADSL) (NT).

ORDER CODE

Part

Number

TS612ID

TS612IPT

Temperature

Range

-40, +85擄C

Package

鈥?/div>

Power Down2

TSSOP14- TopView

Non-inverting inp 2

Inverting input 2

Power Down 2

Vcc+2

Output 2

GND

Non-Invertinginput 1

Inverting input 1

Power Down 1

Vcc+1

Output 1

Vcc-

D=Small

Outline Package (SO) - also available in Tape & Reel (DT)

P=Thin

Skrink Small Outline Package - only available in Tape & Reel (PT)

May 2001

1/10

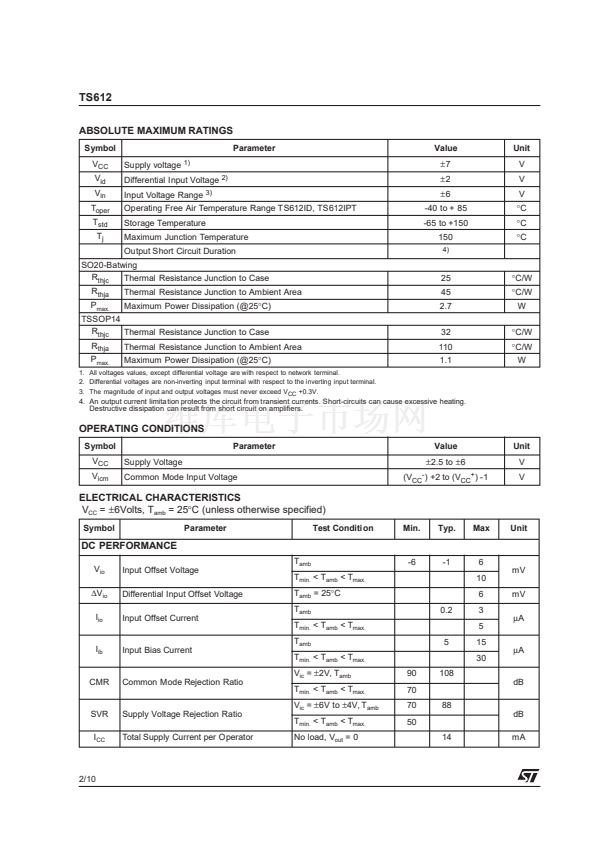

制造商
STMicroelectronics
產品種類
運算放大器 - 運放
通道數量
2
共模抑制比（最小值）
90 dB
輸入補償電壓
6 mV
輸入偏流（最大值）
15 uA
安裝風格
SMD/SMT
封裝 / 箱體
SO-20
轉換速度
40 V/us
關閉
No
最大工作溫度
+ 85 C
封裝
Reel
最小工作溫度
- 40 C
工廠包裝數量
1000
電源電流
28 mA
電壓增益 dB
80.83 dB
