TS3V339C,I,M

MICROPOWER QUAD CMOS VOLTAGE COMPARATORS

DEDICATED TO

3.3V

BATTERY

EXTREMELY LOW SUPPLY CURRENT :

9碌A(chǔ)

typ / comparator

WIDE SINGLE SUPPLY RANGE

2.7V TO 16V

EXTREMELY LOW INPUT CURRENT :

1pA

typ

INPUT COMMON-MODE VOLTAGE RANGE

INCLUDES GND

FAST RESPONSE TIME : 2.5碌s typ for 5mV

overdrive

PIN-TO-PIN AND FUNCTIONALLY COMPATI-

BLE WITH BIPOLAR LM339

SUPPLY

(specified at 3V and 5V)

DIP14

(Plastic Package)

DESCRIPTION

The TS3V339 is a micropower quad CMOS volt-

age comparator with extremely low consumption

of 9碌A(chǔ) typ / comparator (20 times less than bipolar

LM339). Similar performances are offered by the

quad micropower comparator TS3V3704 with a

push-pull CMOS output.

Thus response times remain similar to the LM339.

ORDER CODE

Part

Number

TS3V339I

Temperature

Range

-40擄C, +125擄C

Package

鈥?/div>

SO14

(Plastic Micropackage)

TSSOP14

(Thin Shrink Small Outline Package)

PIN CONNECTIONS

(top view)

N =

Dual in Line Package (DIP)

D =

Small Outline Package (SO) - also available in Tape & Reel (DT)

P =

Thin Shrink Small Outline Package (TSSOP) - only available

in Tape & Reel (PT)

Output 2

Output 3

Output 4

Non-invertingInput 4

Inverting Input 4

Non-invertingInput 3

Inverting Input 3

Output1 2

Inverting Input 1 4

Non-inverting Input 1 5

Inverting Input 2

Non-invertingInput 2

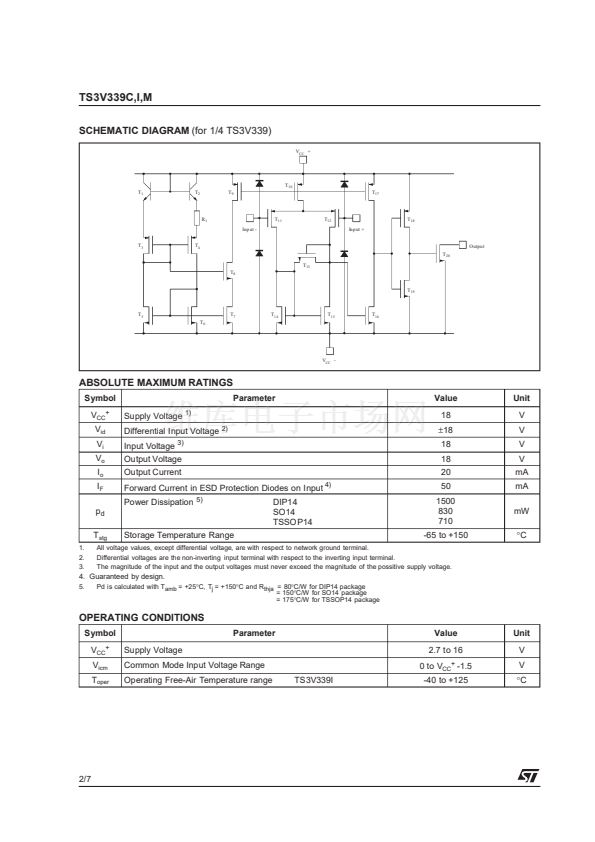

February 2002

1/7

制造商
STMicroelectronics
產品種類
校驗器 IC
通道數量
4 Channels
產品
Analog Comparators
輸出類型
Push-Pull
響應時間
1.5 us
補償電壓（最大值）
5 mV
電源電流（最大值）
25 uA
最大功率耗散
830 mW
最大工作溫度
+ 125 C
安裝風格
SMD/SMT
封裝 / 箱體
SO-14
封裝
Tube
最小工作溫度
- 40 C
工廠包裝數量
50
Supply Voltage - Max
16 V
Supply Voltage - Min
2.7 V
